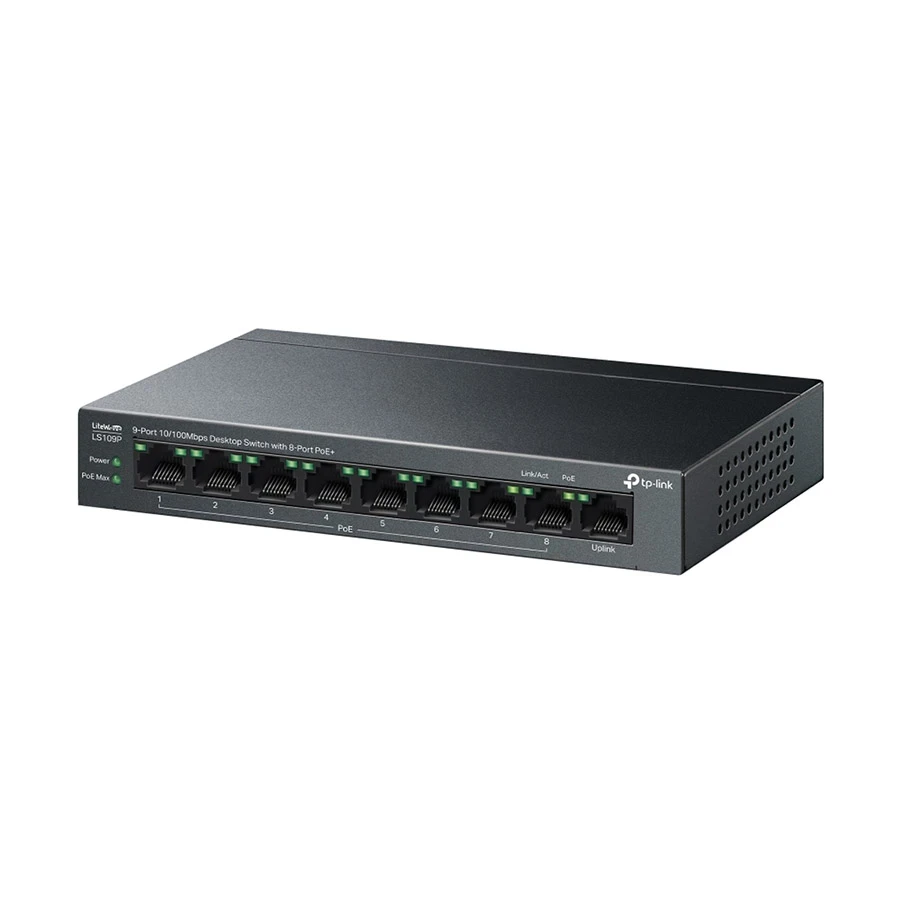

TP-Link LS109P 9-Port Desktop Switch
Key Specification
Product Specification
|
Specification |
Details |
|
Brand |
TP-Link |
|
Model |
LS109P |
|
Type |
Unmanaged
Desktop Switch with 8-Port PoE+ |
|
Ports |
9 × 10/100Mbps RJ45 Ports (8 × PoE+ Ports, 1 × Non-PoE
Port) |
|
PoE
Standard |
IEEE
802.3af/at |
|
PoE Power per Port |
Up to 30W per PoE+ port |
|
Total
PoE Power Budget |
63W |
|
PoE Transmission Range |
Up to 250 meters (with Extend Mode enabled) |
|
Switching
Capacity |
1.8
Gbps |
|
Forwarding Rate |
1.34 Mpps |
|
Jumbo
Frame Support |
Up
to 2,000 bytes |
|
Switching Mode |
Store-and-forward |
|
LED
Indicators |
Power,
Link/Activity per port |
|
Mounting Options |
Desktop or wall-mountable |
|
Dimensions
(L×W×H) |
171
× 98 × 27 mm |
|
Weight |
Approximately 0.8 kg |
|
Power
Input |
53.5V
DC, 1.31A |
|
Power Consumption |
Max 3.67W (no PD connected); Max 73.24W (with 63W PD
connected) |
|
Operating
Temperature |
0°C
to 40°C |
|
Storage Temperature |
-40°C to 70°C |
|
Operating
Humidity |
10%
to 90% RH (non-condensing) |
|
Storage Humidity |
5% to 90% RH (non-condensing) |
|
Certifications |
CE,
FCC, RoHS |
|
Warranty |
3 years (typical, varies by retailer) |
Product Details
TP-Link LS109P 9-Port 10/100Mbps
Desktop Switch with 8-Port PoE+
The TP-Link LS109P is a compact
9-port Fast Ethernet desktop switch designed to provide both data
connectivity and power delivery in one device. Equipped with 8
PoE+ ports, it supports IP cameras, VoIP phones, and wireless access
points without the need for separate power adapters. With a total PoE
power budget of 65W, plug-and-play installation, and a durable
metal housing, it is a perfect solution for small offices, shops, and
home surveillance systems.
Key Features & Benefits
- 9 Fast Ethernet Ports
– Supports 10/100Mbps auto-negotiation.
- 8 PoE+ Ports
– Provides up to 30W per port, total 65W PoE budget.
- Plug & Play
– Easy to use, no configuration required.
- Smart Power Management – Protects devices by prioritizing power allocation.
- Fanless & Quiet
– Silent operation, suitable for any environment.
- Durable Metal Housing
– Ensures long-lasting, stable performance.
- Ideal for Surveillance & Networking – Perfect for IP cameras, VoIP phones, and access
points.
Specifications
- Model:
LS109P
- Type:
9-Port Unmanaged Desktop Switch with PoE+
- Port Speed:
10/100Mbps (auto MDI/MDIX)
- Ports:
9 × RJ45 Fast Ethernet (8 PoE+ ports, 1 uplink port)
- Switching Capacity:
1.8Gbps
- PoE Standard:
802.3af/at compliant
- Total PoE Budget:
65W
- Fanless Design:
Yes (silent operation)
- Housing:
Metal casing
- Dimensions:
Compact desktop-friendly size
- Color:
Black
Why Choose TP-Link LS109P?
- Expand your network with 8 PoE+ powered ports
and 1 uplink port.
- Energy-efficient, reliable, and quiet performance.
- Ideal for SOHO, retail shops, and IP surveillance
systems.
Shop Now at Computer Village Agrabad
Get the TP-Link LS109P 9-Port Desktop Switch with 8-Port PoE+ at Computer
Village Agrabad, Wali Mansion, 600 Sk. Mujib Road, Chowmohoni, Agrabad,
Chattogram.
We provide fast delivery across Bangladesh, including Dhaka,
Chattogram, Sylhet, Rajshahi, Khulna, and Barisal.
