Brand

Thermaltake

Model

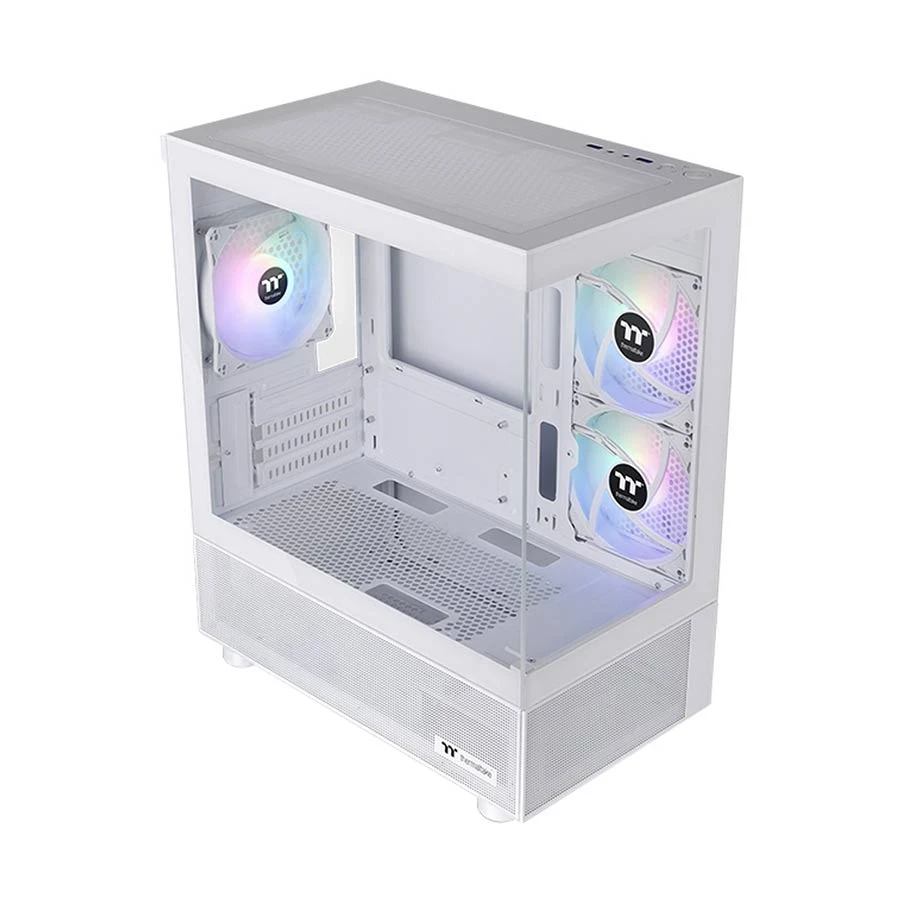

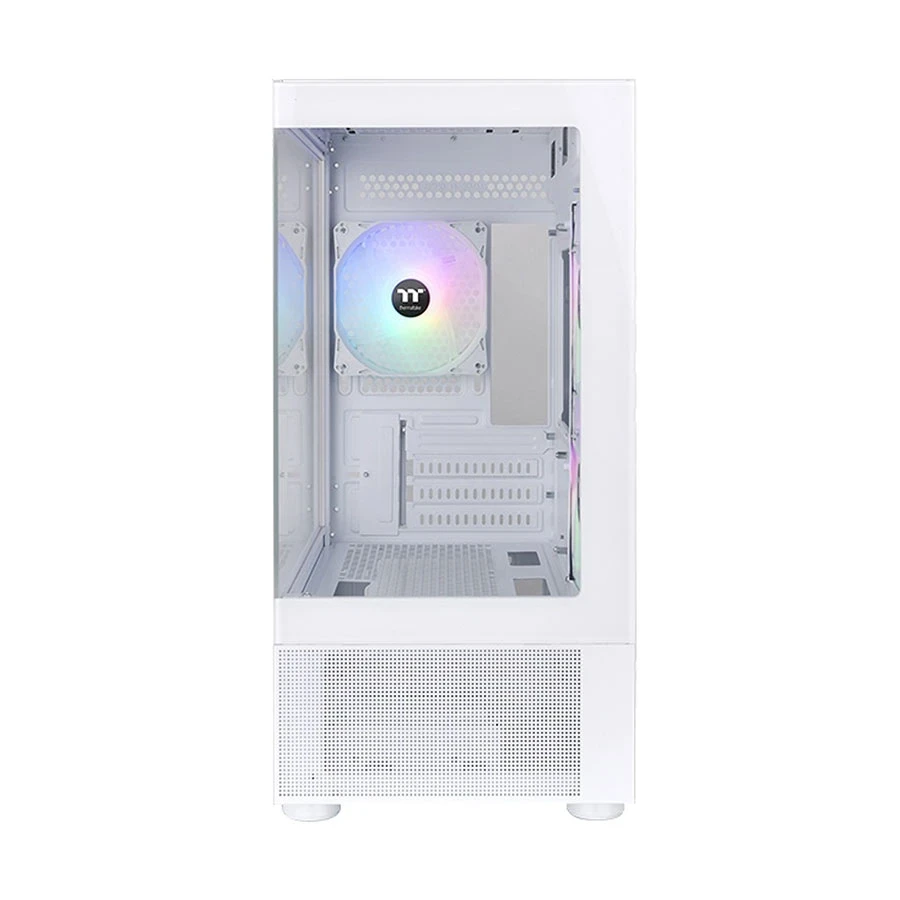

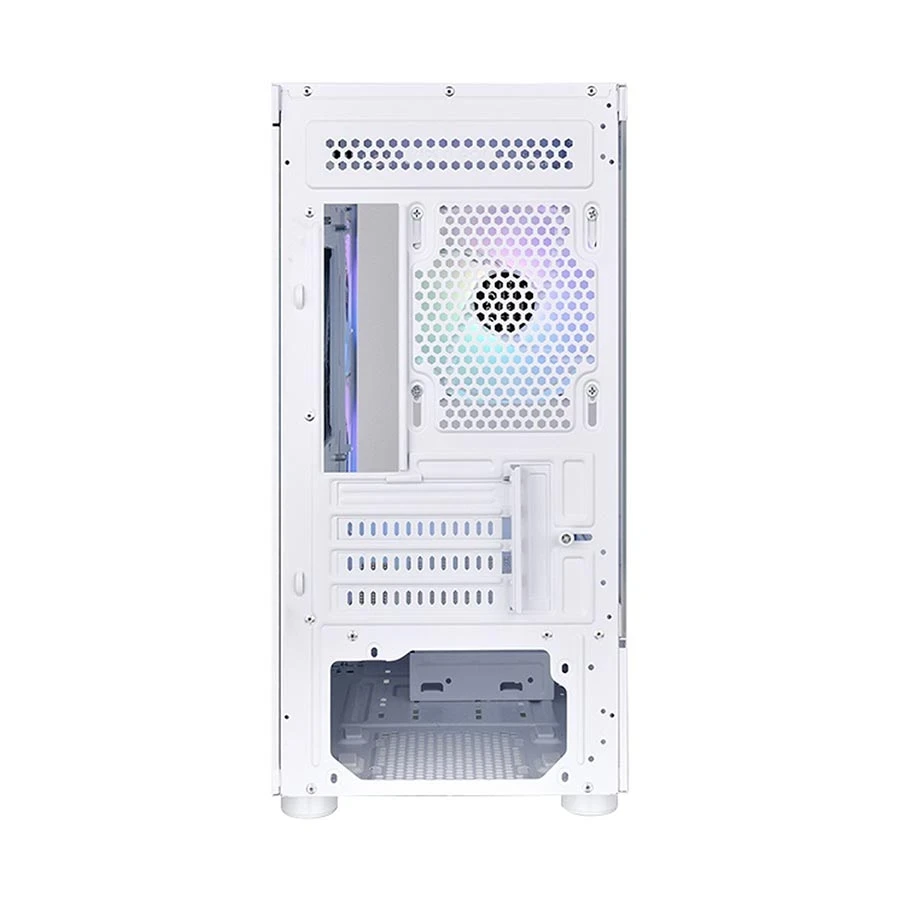

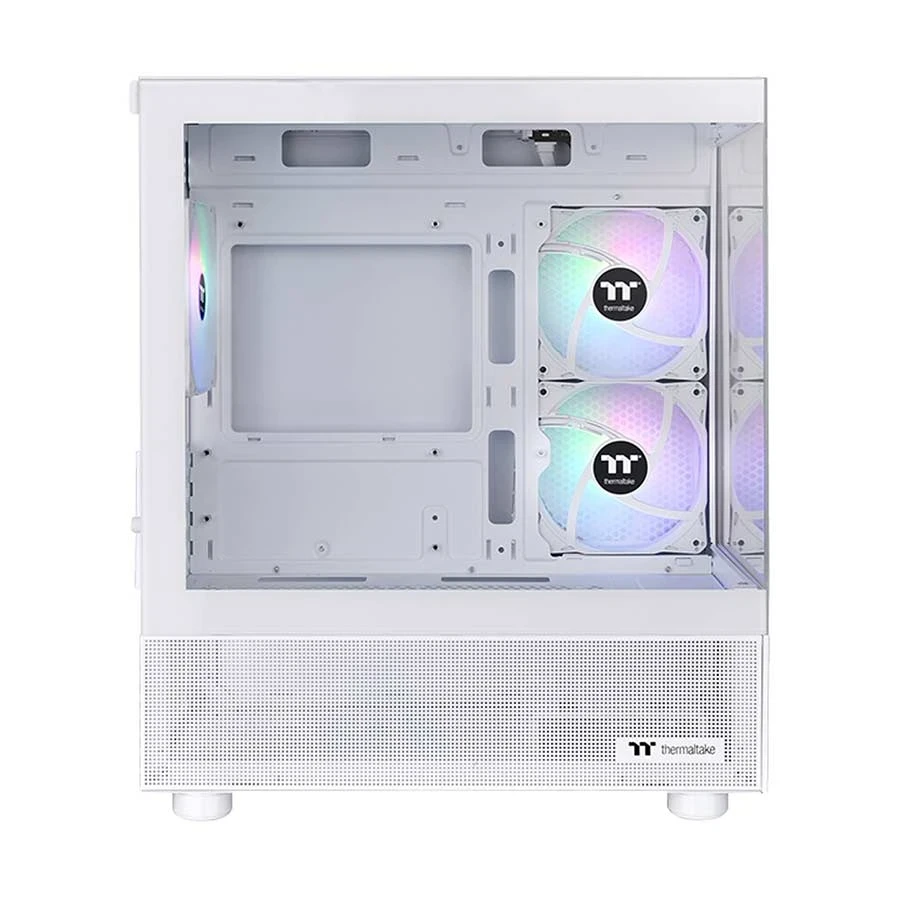

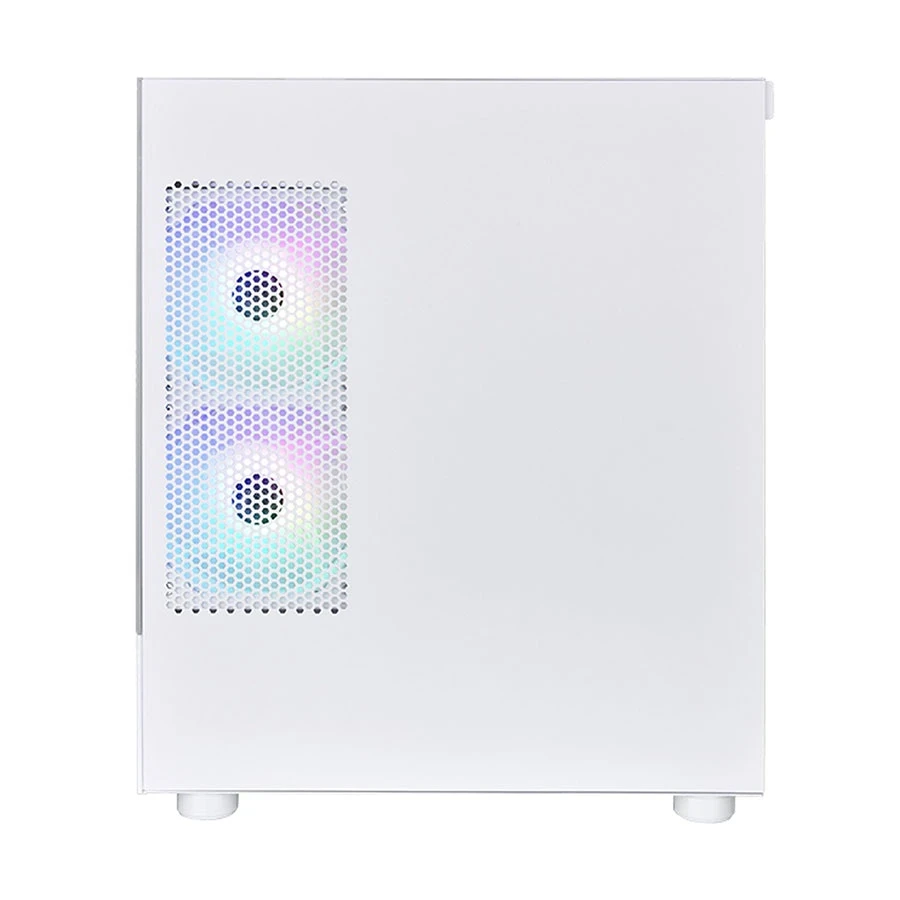

Thermaltake View 170 TG ARGB

Series

View

Type

Mini Tower

Technical Data

Supported Motherboard Type: Micro ATX, Mini ITX

Supported LED Strip: No

Fan / Light Controller: Yes

Illumination: ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome.

Back-Connect Supported: No

Graphics-Card Length: 340mm

Supported CPU Cooler: Air Cooler or Liquid Cooler

CPU Cooler Height: 160mm

PSU Length: 180mm

Thickness: 3mm

Interfaces & Slots

Front/Top USB port: USB 3.0 x 2

Front/Top Audio Port: HD Audio x 1

3.5 Inch Drive Bay: 1

2.5 Inch Drive Bay: 2

Expansion Slots: 4

Optical Drive Bay: No

Memory Card Slot: No

Cooling System Data

Cooling Fan (Built-In): 3

Additional Fan Slot: 3

Pre-Installed Fan Size: 120mm

Supported Fan Size: Top: 2 x 120mm, 1 x 120mm or 2 x 140mm, 1 x 140mm, Right: 2 x 120mm, 1 x 120mm, Rear: 1 x 120mm, Power Cover: 2 x 120mm, 1 x 120mm

Lighting Fan: ARGB

Radiator Support Front/Top/Rear: Top: 1 x 240mm, 1 x 120mm, 1 x 280mm, 1 x 140mm, Rear: 1 x 120mm

Radiator Support Max.: Up to 280mm

Power Data

Power Supply (Built-In): No

Power Supply Mounted: Bottom

Approx. Power Consumption: 30W

Physical Atributes

Transparent Side Window: Yes

Case Windowed: 2xTempered Glass Side Panel

Buttons: 1 x Power, 1 x Reset

Number of Buttons: 2

Material: SPCC

Color: Snow

Dimensions: 438 x 212 x 377.5mm

Weight (Kg): 4.65 kg

Handle: No

Extra Data

Specialty

Tempered Glass Front and Left Panels, Up to a 280mm/240mm Radiator, Three Hydraulic Bearing 120mm ARGB Lite Fans Pre-installed, Flexibility to Build Your Best, How Much Storage Is Totally Up To You, All-in-One Compatibility List, Sync with Motherboard RGB Software.

Warranty

1 Year Warranty For Fan, Button & Connectors Only (No Warranty For Casing Body / Structure)

* Product may vary with different Kit or Version
