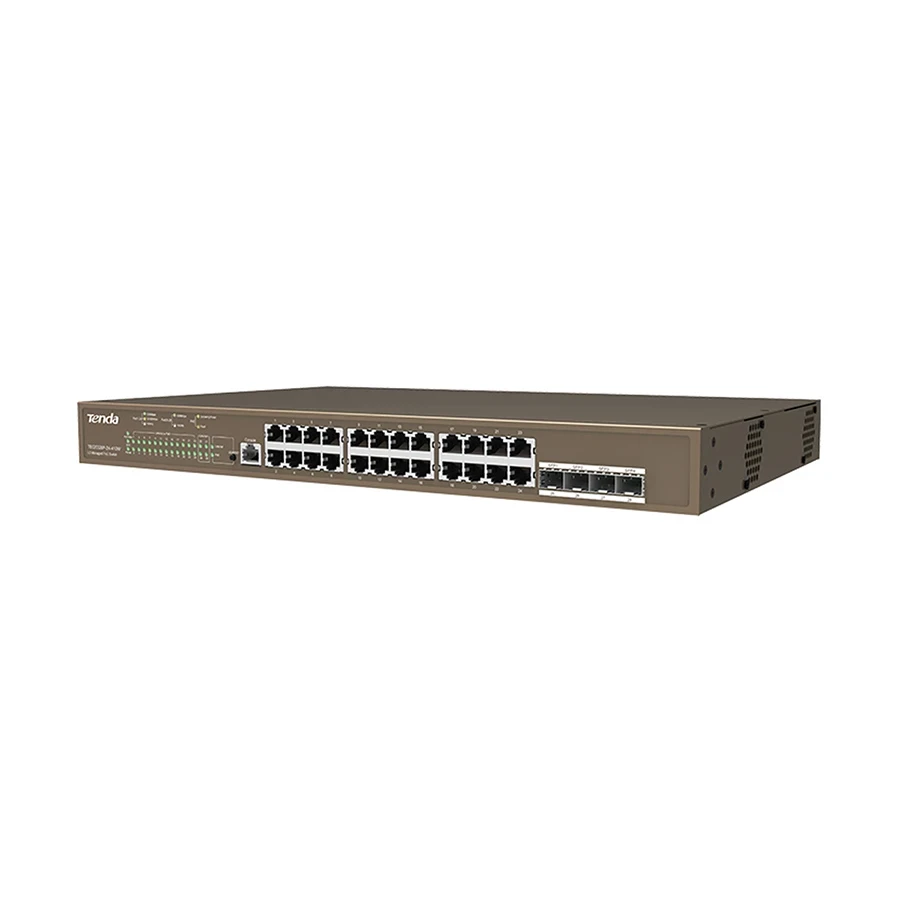

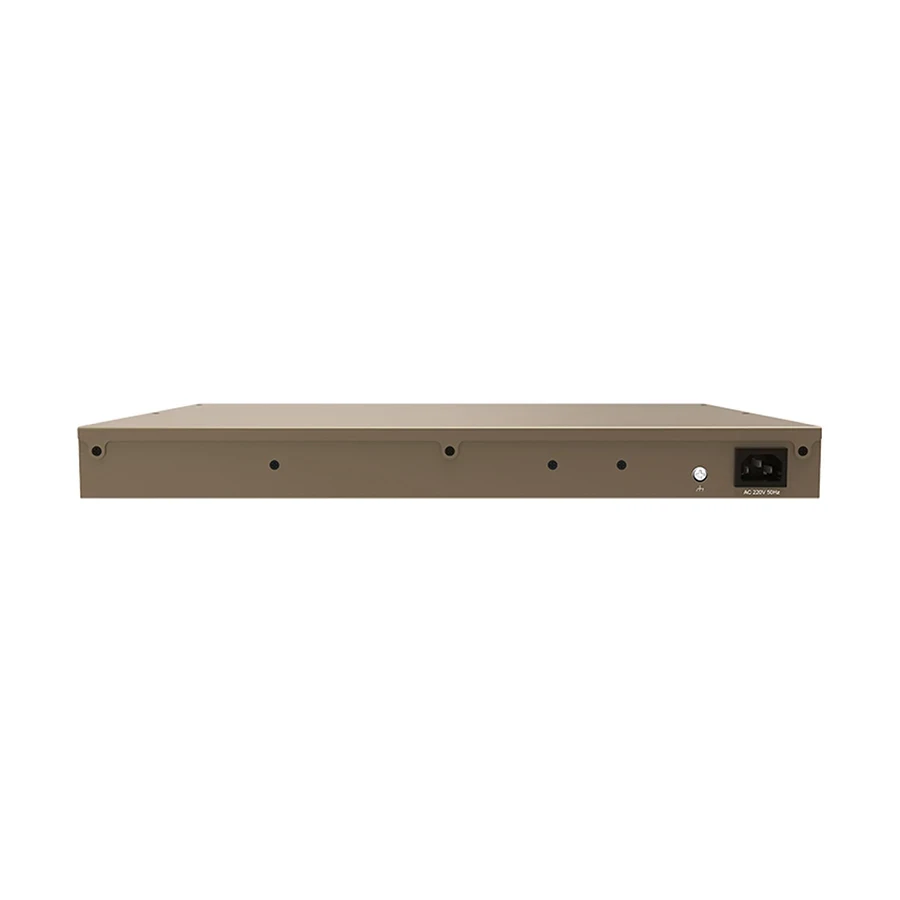

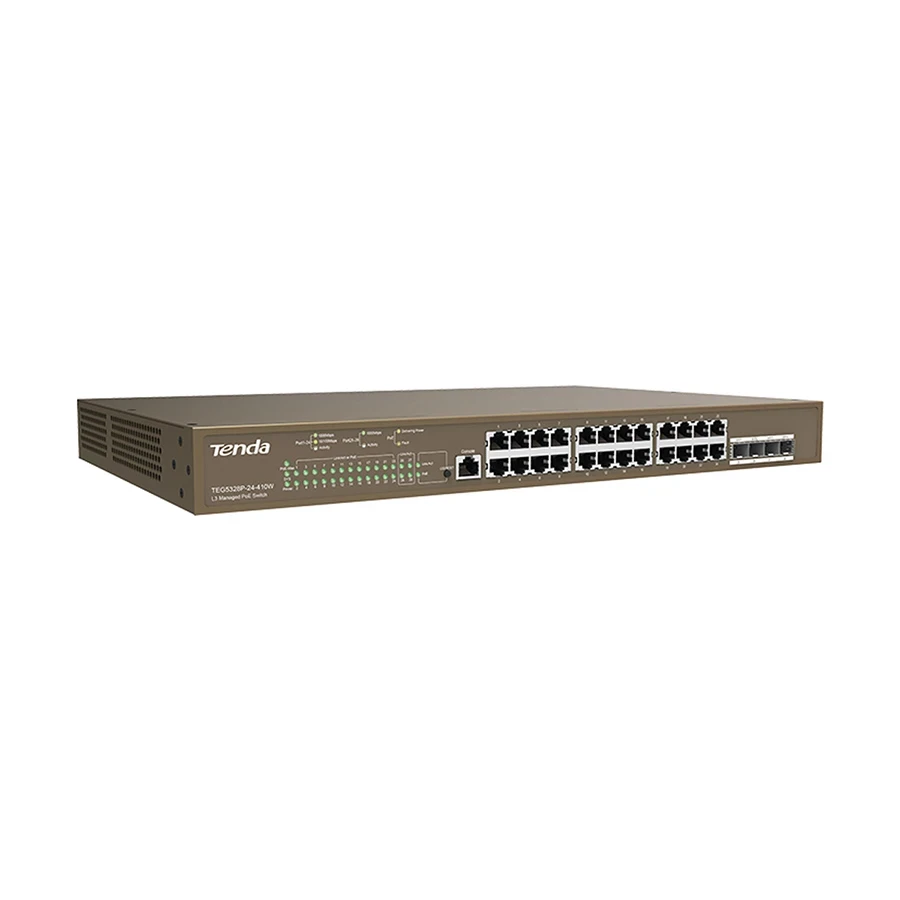

Tenda TEG5328P-24-410W 28-Port Managed PoE Switch
Key Specification
‣Ports: 24
× 10/100/1000 Mbps RJ-45 (PoE+) + 4 × Gigabit SFP
‣PoE: Up
to 30 W per port; total PoE power budget of 370 W
‣Network Standards:
IEEE 802.3/3u/3ab/3z, 802.3x, 802.1p, 802.1Q, 802.1w, 802.1d, 802.1s,
802.3af/at
‣Performance:
16K MAC address table; supports VLAN, QoS, IGMP snooping, link aggregation, and
static routing
‣ Form Factor:
Rack-mountable; dimensions: 440 × 178.8 × 44 mm; input power: AC 100–240V,
50/60Hz, 0.7A
Product Specification
|
Category |
Details |
|
Brand
/ Model / P/N |
Tenda
TEG5328P-24-410W |
|
Type |
Layer-3 Managed PoE Switch |
|
Ports
& Slots |
24
× Gigabit RJ-45 (10/100/1000Mbps) Ethernet ports with PoE 4 × Gigabit SFP
ports (for uplink/fiber) |
|
PoE Support / Power Attributes |
Supports IEEE 802.3af & 802.3at PoE / PoE+ Maximum
power per port: up to 30 W Total PoE power budget: ~370 W Built-in PoE power
supply |
|
Network
/ Protocol Features |
Layer-3
features including static routing VLAN (802.1Q), QoS, ACLs IGMP Snooping ARP
inspection DHCP snooping Telnet/Web/SNMP management Link aggregation |
|
Capacity / Performance |
Bandwidth / backplane switching capacity: ~56 Gbps Packet
forwarding rate: ~41.70 Mpps MAC address table size: ~16K entries |
|
Physical
/ Environmental Attributes |
Dimensions:
~440 mm × 284 mm × 44 mm Rack-mountable, desktop or wall mounting possible
Operating temperature: 0-45 °C Storage temperature: -40-70 °C Humidity:
10-90% RH (operating), 5-90% RH (storage) |
|
Power Consumption / Efficiency |
Full load power consumption: < ~432 W Idle / low load
much less Input voltage: 100-240 V AC, 50/60 Hz |
|
Reliability
/ Protection |
Port
& power lightning protection: ~6 kV Includes protections like PoE
overload, over-voltage, short circuit, etc. Fan-cooled design (for heat
dissipation) |
|
Warranty / Compliance |
Certifications: FCC, CE, RoHS (typically) Warranty depends
on vendor / region |
* Product may vary with different Kit or
Version
Product Details
Tenda TEG5328P-24-410W 28-Port
Gigabit Managed PoE Switch
The Tenda TEG5328P-24-410W is
a professional-grade 28-port Gigabit managed PoE switch designed for enterprise
networks, IP surveillance, and SMB deployments. It features 24 Gigabit
RJ45 PoE+ ports, 4 Gigabit SFP uplink slots, and a 410W PoE power
budget, making it ideal for powering IP cameras, access points, and VoIP
phones. With Layer 2 management features, VLAN, QoS, and advanced
security, it ensures high-performance, stable, and scalable networking.
Key Features & Benefits
- 28 Ports Total
– 24 × 10/100/1000Mbps PoE+ RJ45 ports, 4 × Gigabit SFP uplinks.
- High PoE Power
– Complies with IEEE 802.3af/at PoE+, delivering up to 410W
total PoE budget.
- Enterprise-Level Switching – 56Gbps switching capacity for smooth and
reliable traffic handling.
- Advanced Management
– Supports VLAN, QoS, ACL, STP/RSTP, port mirroring, and IGMP Snooping.
- Strong Security
– Provides 802.1X authentication, ARP inspection, DoS defense, and
broadcast storm control.
- Traffic Optimization
– Prioritizes voice, video, and critical data streams.
- Durable Build
– Rack-mountable metal chassis with efficient cooling system.
Specifications
- Model:
TEG5328P-24-410W
- Type:
Layer 2 Managed PoE Switch
- Ports:
24 × Gigabit RJ45 PoE, 4 × Gigabit SFP
- PoE Standard:
IEEE 802.3af/at
- PoE Power Budget:
410W total
- Switching Capacity:
56Gbps
- Forwarding Rate:
41.7 Mpps
- Management:
Web UI, CLI, SNMP, VLAN, QoS, ACLs
- Security:
802.1X, DoS protection, ARP inspection
- Form Factor:
Rack-mountable (1U)
- Color:
Black
Why Choose Tenda TEG5328P-24-410W?
- Provides high PoE power for large-scale IP
surveillance and enterprise Wi-Fi networks.
- Combines Gigabit speed, advanced L2 management, and
enterprise security.
- Ideal for SMBs, campuses, and enterprise-level
networking.
