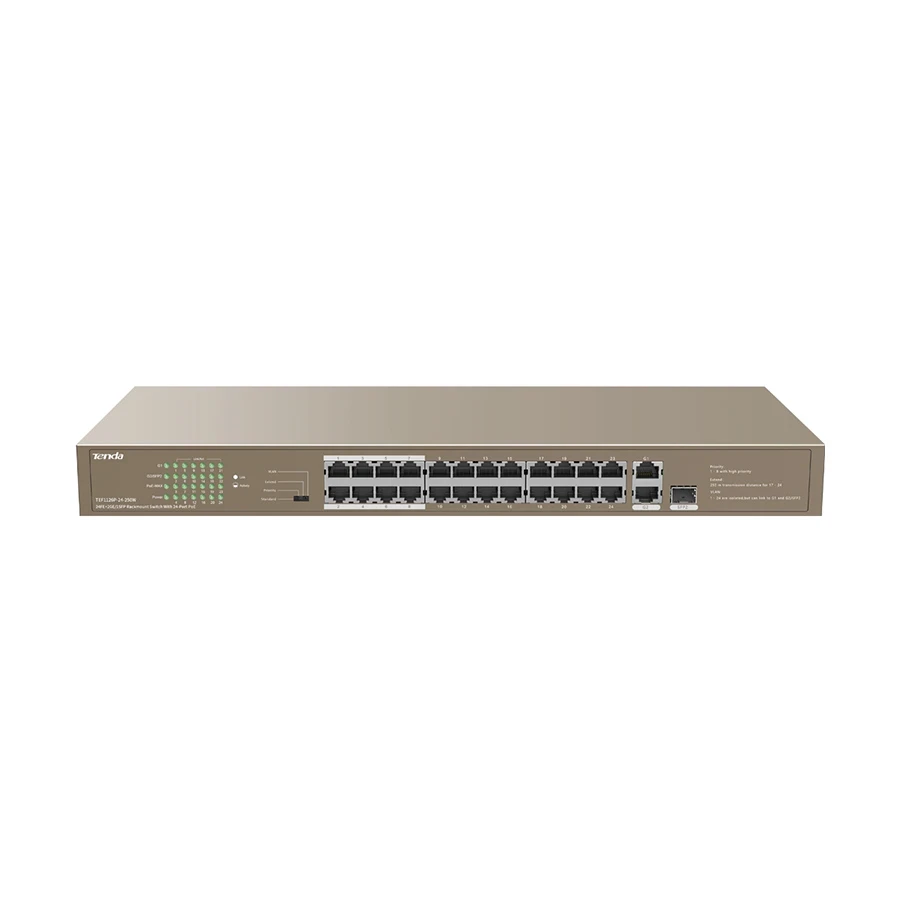

Tenda TEF1126P-24-250W 27-Port Unmanaged PoE Switch
Key Specification
‣Ports: 24
× 10/100 Mbps RJ-45 (PoE+) + 3 × Gigabit RJ-45 + 1 × Gigabit SFP
‣PoE: IEEE
802.3af/at; up to 30 W per port; total PoE power budget of 225 W
‣Network Standards:
IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x
‣Performance:
Switching capacity of 8.8 Gbps
‣Form Factor:
Rack-mountable; dimensions: 440 × 215 × 44 mm
Product Specification
|
Category |
Details |
|
Brand
/ Model / P/N |
Tenda
TEF1126P-24-250W |
|
Type |
Unmanaged / Smart PoE Switch |
|
Ports
& Slots |
24
× 10/100 Mbps RJ-45 ports (PoE + data) 1 × 10/100/1000 Mbps RJ-45 uplink port
1 × 1000 Mbps Base-X SFP slot |
|
Power / PoE Support |
Standards: IEEE 802.3af / 802.3at Max PoE per port: up to
~30 W Total PoE budget/output: ~225-230 W AC input: ~100-240 V, 50/60 Hz |
|
Performance
/ Switching Data |
Switching
capacity: ~8.8 Gbps Forwarding rate: ~6.55 million packets/sec (mpps) MAC
address table: ~16K entries |
|
Modes / Features |
Four modes via hardware DIP switch: Standard, Priority,
VLAN, Extend Extend mode: applies to first 1-8 ports, reduces speed to 10
Mbps but increases transmission distance to ~250 m VLAN mode: isolates ports
1-24 from each other but allows them to communicate with uplink/SFP ports
Priority mode: prioritizes certain ports (e.g. for surveillance) |
|
Protection
/ Reliability |
Lightning
/ surge protection (≈ 6 kV) PoE overload protection, short-circuit
protection, over-temperature & over-voltage protections |
|
Physical / Environmental |
Dimensions: ~440 × 178.8 × 44 mm Operating Temp: ~0 °C to
~45 °C Storage Temp: ~-40 °C to ~70 °C Humidity: ~10-90% non-condensing
(operating), ~5-90% storage Rack-mountable (1U), desktop/wall possible |
|
LED
Indicators |
Link/Activity
LEDs for ports 1-24 LEDs for uplink and SFP PoE-MAX LED Power LED |
|
Certifications & Compliance |
CE, FCC, RoHS, etc. |
* Product may vary with different Kit or
Version
Product Details
Tenda TEF1126P-24-250W 27-Port Fast Ethernet
Unmanaged PoE Switch
The Tenda TEF1126P-24-250W is
a 27-port unmanaged PoE switch designed for SMBs, surveillance
systems, and wireless networking. It includes 24 × 10/100Mbps PoE+ RJ45
ports, 2 × Gigabit RJ45 uplink ports, and 1 × Gigabit SFP uplink
port, delivering a 250W total PoE budget. With plug-and-play
installation, 6kV lightning protection, and 250m long-distance
transmission mode, it ensures stable, reliable, and cost-effective
networking for demanding environments.
Key Features & Benefits
- 27 Ports Total
– 24 × Fast Ethernet PoE+ ports, 2 × Gigabit RJ45 uplinks, 1
× Gigabit SFP uplink.
- High PoE Power
– Supports IEEE 802.3af/at PoE+, with up to 250W total PoE
budget.
- Long-Distance Mode
– Extends PoE transmission up to 250 meters, ideal for IP cameras.
- Plug & Play
– No configuration required, easy deployment.
- Stable Performance
– 8.8Gbps switching capacity ensures smooth data forwarding.
- Enhanced Protection
– Built-in 6kV lightning protection for outdoor and industrial use.
- One-Key VLAN Mode
– Isolates ports to improve security and reduce broadcast storms.
- Durable Design
– Rack-mountable metal housing with efficient heat dissipation.
Specifications
- Model:
TEF1126P-24-250W
- Type:
Unmanaged PoE Switch
- Ports:
24 × 10/100Mbps PoE, 2 × Gigabit RJ45 uplinks, 1 × Gigabit SFP uplink
- PoE Standard:
IEEE 802.3af/at
- PoE Power Budget:
250W total
- Switching Capacity:
8.8Gbps
- Transmission Distance: Up to 250m (extend mode)
- Lightning Protection:
6kV surge protection
- Form Factor:
Rack-mountable (1U) metal case
- Color:
Black
Why Choose Tenda TEF1126P-24-250W?
- Provides affordable PoE+ connectivity for
large-scale deployments.
- Ideal for IP surveillance networks, Wi-Fi APs, and
SMB offices.
- Offers plug-and-play operation with long-distance
and VLAN security features.
Shop Now at Computer Village Agrabad
Get the Tenda TEF1126P-24-250W 27-Port Unmanaged PoE Switch at Computer
Village Agrabad, Wali Mansion, 600 Sk. Mujib Road, Chowmohoni, Agrabad,
Chattogram.
We provide fast delivery across Bangladesh, including Dhaka,
Chattogram, Sylhet, Rajshahi, Khulna, and Barisal.
