NZXT N7 B650E (Wi-Fi 6E) DDR5 AMD AM5 Socket Motherboard with Black Cover #N7-B65XT-B1
Key Specification
Product Specification
|
Brand |
Nzxt |
|
Model |
NZXT N7 B650E (Wi-Fi 6E) |
|
Color |
Black |
|
CPU Data |
Chipset Brand: AMD Chipset: AMD B650E Sockets Supported: AM5 Built-in Processor: N/A Supported CPU: AMD Ryzen 9000, 8000,
and 7000 Series Processors. Generation: N/A |
|
Memory
Support |
Memory Type: DDR5 Memory MHz: 7200+(O.C.) / 7000(O.C.)/
6800(O.C.)/ 6600(O.C.)/ 6400(O.C.)/ 6200(O.C.)/ 6000(O.C.)/ 5800(O.C.)/
5600(O.C.)/ 5400(O.C.)/ 5200(O.C.)/ 4800/ 4000MHz non-ECC, un-buffered Memory Channel: Dual Memory Slot: 4 Memory Max: 192GB |
|
Storage Info |
Storage Interface: 6.0Gb/s M.2/SSD Expansion Slot: 3 M.2/SSD Expansion : 3 x M.2, (1 x M.2,
Type 2242/2260/2280 (PCIe 5.0 x4 mode), 1 x M.2, Type 2242/2260/2280 (PCIe
4.0 x4 mode), 1 x M.2, Type 2242/2260/2280 (PCIe 4.0 x2 mode)) |
|
Graphics
Info |
Multi-GPU Support: N/A PCI Express Slot: PCI Express 1 x PCIe 5.0 x
16 slot (PCIEX16 1), supports x16 mode (Supports NVMe SSD as boot disks), 2 x
PCIe 4.0 x 16 slots (PCIEX16 2 and PCIEX16 3), support x 2 mode (Supports
NVMe SSD as boot disks) |
|
Audio & Video |
Audio Chipset: Realtek ALC1220P Codec Audio Channel – Unmentioned |
|
Network
& Connectivity |
LAN Chipset: Realtek: RTL8125BG 2.5G LAN LAN Speed (Mbps): 10/ 100/ 1000/ 2500/ 5000Mbps WiFi: Yes WiFi Technology: Wi-Fi 6E Bluetooth: Bluetooth 5.2 |
|
Ports Data |
USB Port: 2 x USB 2.0 Type-A, 1 x USB
3.2 Gen 2x2 Type-C, 2 x USB 3.2 Gen 2 Type-C, 3 x USB 3.2 Gen 1 Type-C VGA Port: N/A HDMI Port: 1 Display: N/A SATA Port: 4 |
|
Technical
Data |
Cable Management: Front Heatsink: Yes RGB Support: ARGB Approx. Power Consumption: 70W Form Factor: ATX |
|
Compatibility |
Supported Operating System: Windows 10,11
Supported Operating System: Supports
AMD Socket AM5 for AMD Ryzen 9000, 8000, and 7000 Series Processors |
|
Warranty |
3 year |
|
* Product
may vary with different Kit or Version |
|
Product Details
NZXT

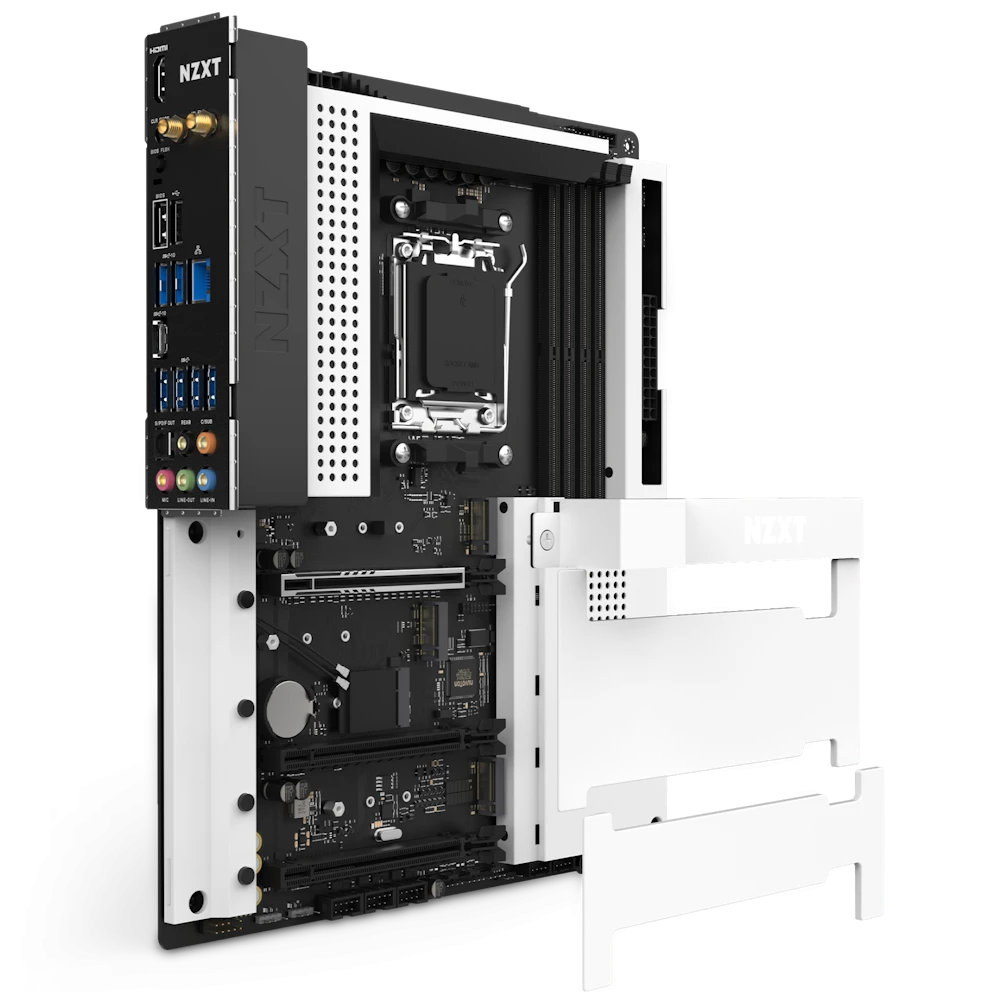

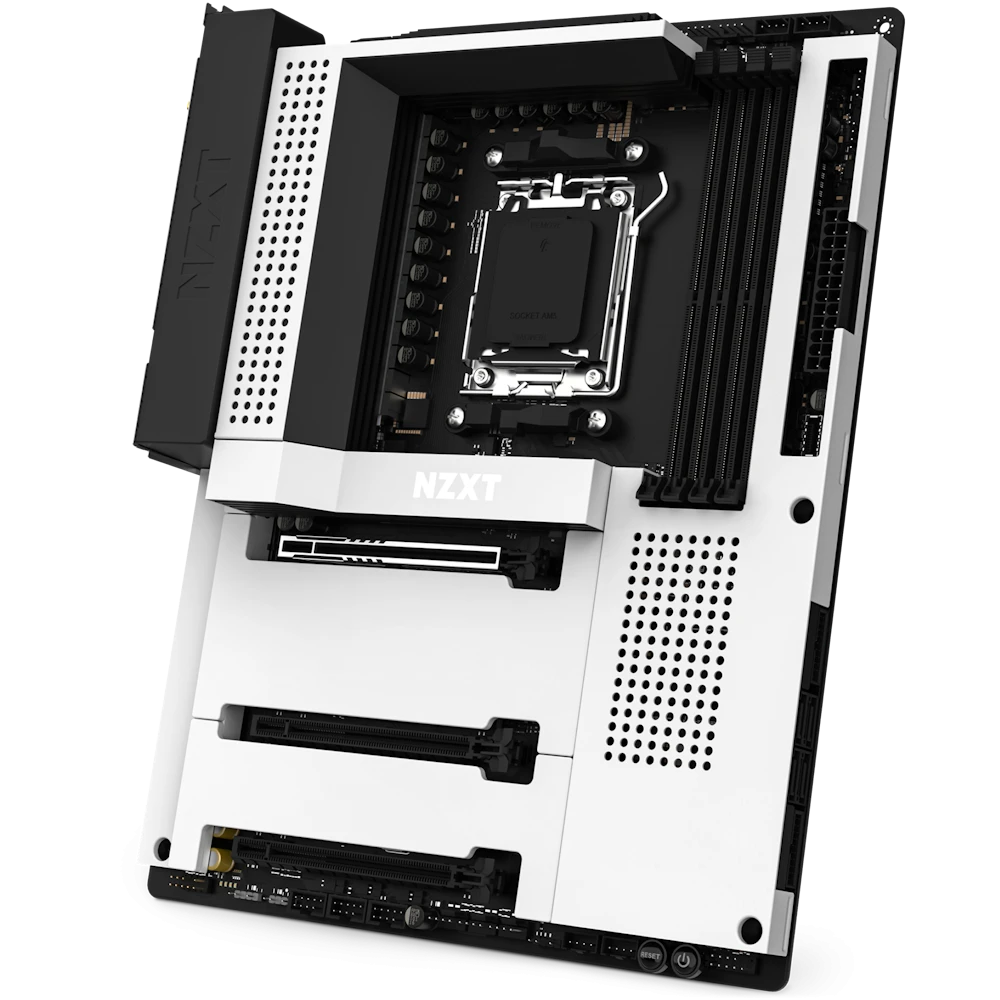

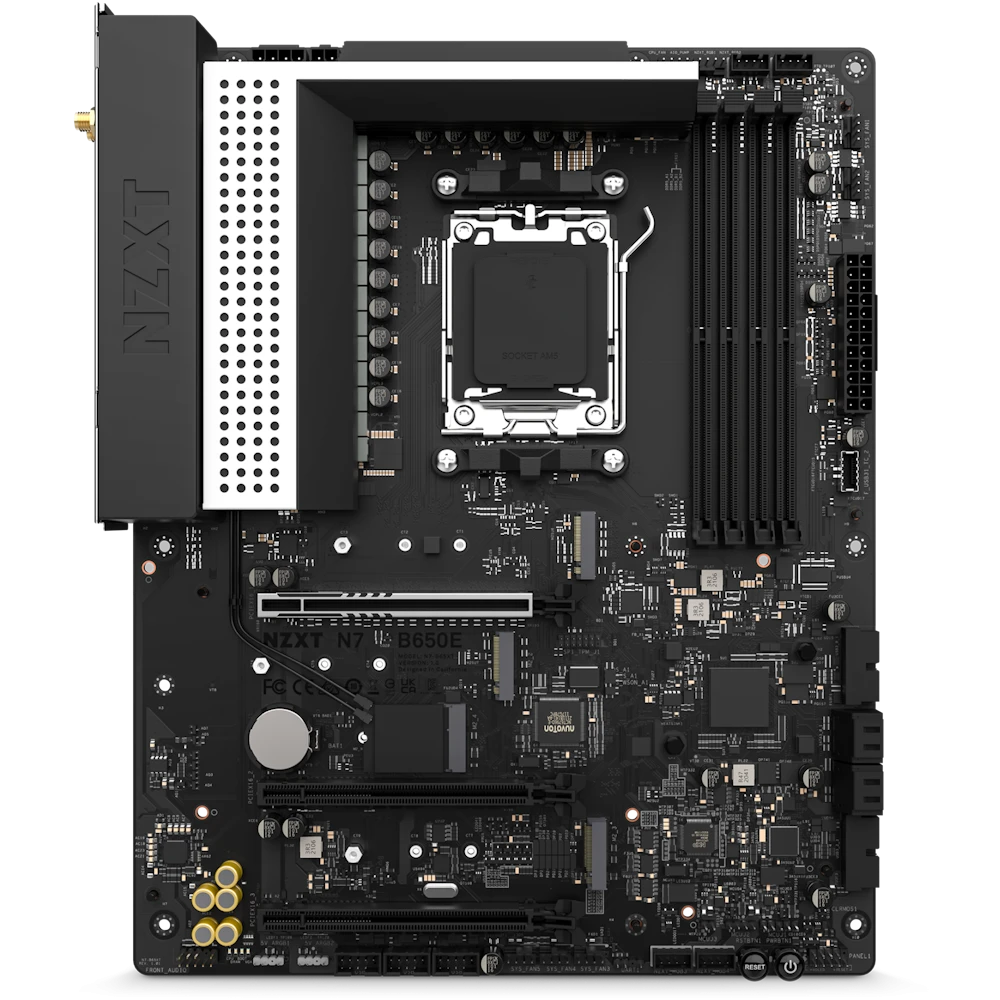

N7 B650E (Wi-Fi 6E) Motherboard (Black)
The NZXT N7 B650E (Wi-Fi 6E)
motherboard in Black offers an exceptional platform for AMD builds,
featuring Wi-Fi 6E and support for the latest AMD Ryzen 9000, 8000,
and 7000 Series processors with the AMD B650E chipset. With DDR5
memory support, this motherboard provides impressive overclocking potential
up to 7200+ MHz and top-tier connectivity, including Bluetooth 5.2
and 2.5G LAN. Its clean black design and integrated ARGB lighting
offer both performance and style.
Features
- AMD B650E Chipset
with AM5 socket for AMD Ryzen 9000, 8000, and 7000 Series
processors
- DDR5 Memory
support with overclocking up to 7200+ MHz
- Dual Channel Memory
with a maximum capacity of 192GB
- Wi-Fi 6E
for ultra-fast wireless performance
- Bluetooth 5.2
for seamless connectivity with compatible devices
Storage
and Expansion
- 3 x M.2 Slots:
- 1 x M.2 PCIe 5.0 x4
for fast storage devices (Type 2242/2260/2280)
- 1 x M.2 PCIe 4.0 x4
for additional high-speed storage (Type 2242/2260/2280)
- 1 x M.2 PCIe 4.0 x2
for more flexible expansion options (Type 2242/2260/2280)
- SATA 6Gb/s Ports:
4 for additional storage devices
Graphics
and Display
- PCI Express Slots:
- 1 x PCIe 5.0 x16 slot (PCIEX16 1) for high-end GPUs (x16 mode, NVMe SSD
boot disk support)
- 2 x PCIe 4.0 x16 slots (PCIEX16 2 and PCIEX16 3) for additional expansions
(x2 mode, NVMe SSD boot disk support)
- HDMI Port:
1 for direct display connection
Audio
and Video
- Realtek ALC1220P Codec for high-quality audio
- Supports multi-channel audio for an immersive
experience in gaming and multimedia
Network
and Connectivity
- Realtek RTL8125BG 2.5G LAN for wired network connections
(10/100/1000/2500/5000Mbps)
- Wi-Fi 6E
for cutting-edge wireless speeds

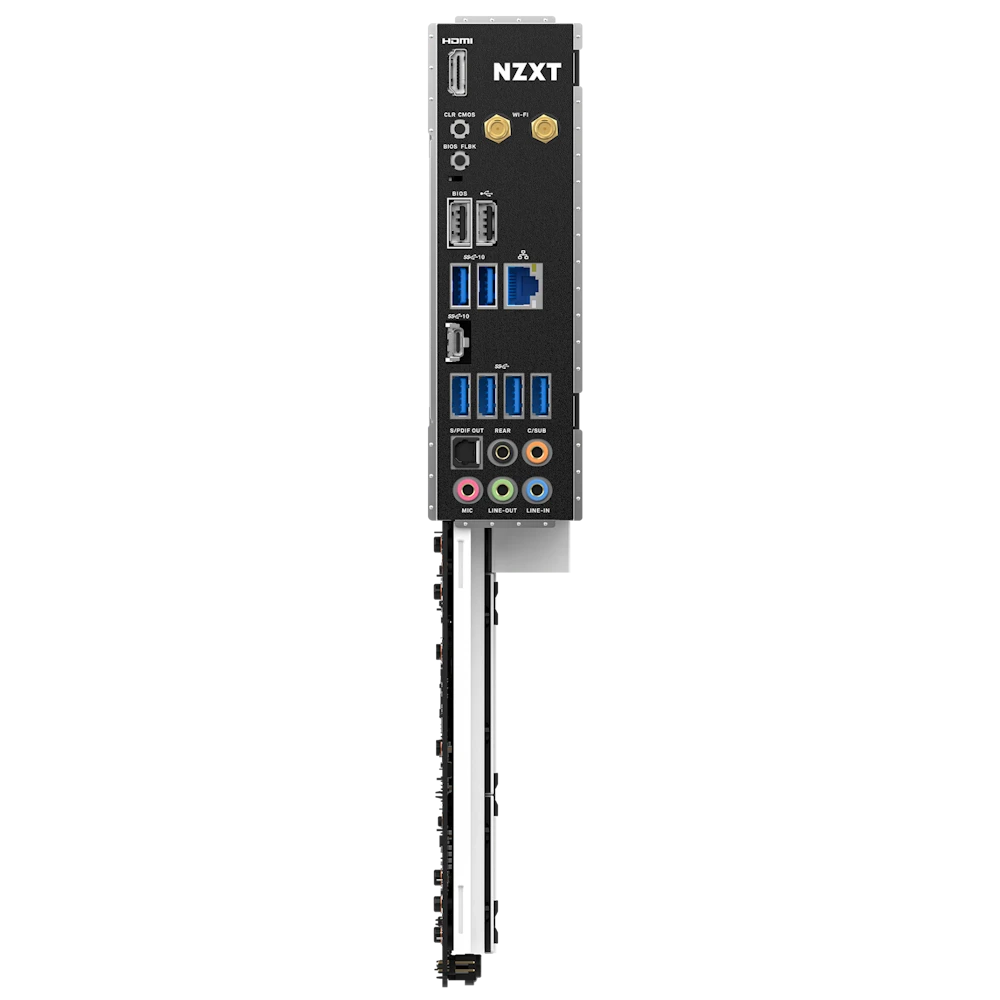

- USB Ports:
- 2 x USB 2.0 Type-A
- 1 x USB 3.2 Gen 2x2 Type-C
- 2 x USB 3.2 Gen 2 Type-C
- 3 x USB 3.2 Gen 1 Type-C
- SATA Ports:
4 for additional storage devices
Design
and Build
- Form Factor:
ATX for compatibility with most cases
- Color:
Black for a sleek, professional appearance
- Heatsink:
Integrated for improved cooling performance
- Cable Management:
Front routing for a tidy, organized build
- ARGB Support:
Customizable RGB lighting with ARGB support for personalizing your
PC’s look
Power
and Efficiency
- Approximate Power Consumption: 70W
- Designed to deliver efficient power usage while
maintaining high performance
Compatibility
and Warranty
- Operating System Support: Windows 10 and Windows 11
- CPU Compatibility:
Supports AM5 socket AMD Ryzen 9000, 8000, and 7000 Series
processors
- Warranty:
3-year warranty from NZXT
Price
and Availability
The NZXT N7 B650E (Wi-Fi 6E)
Black motherboard is available for purchase at Computer Village Agrabad,
Chattogram, Bangladesh. For the latest pricing and availability, please
check directly at the store.
