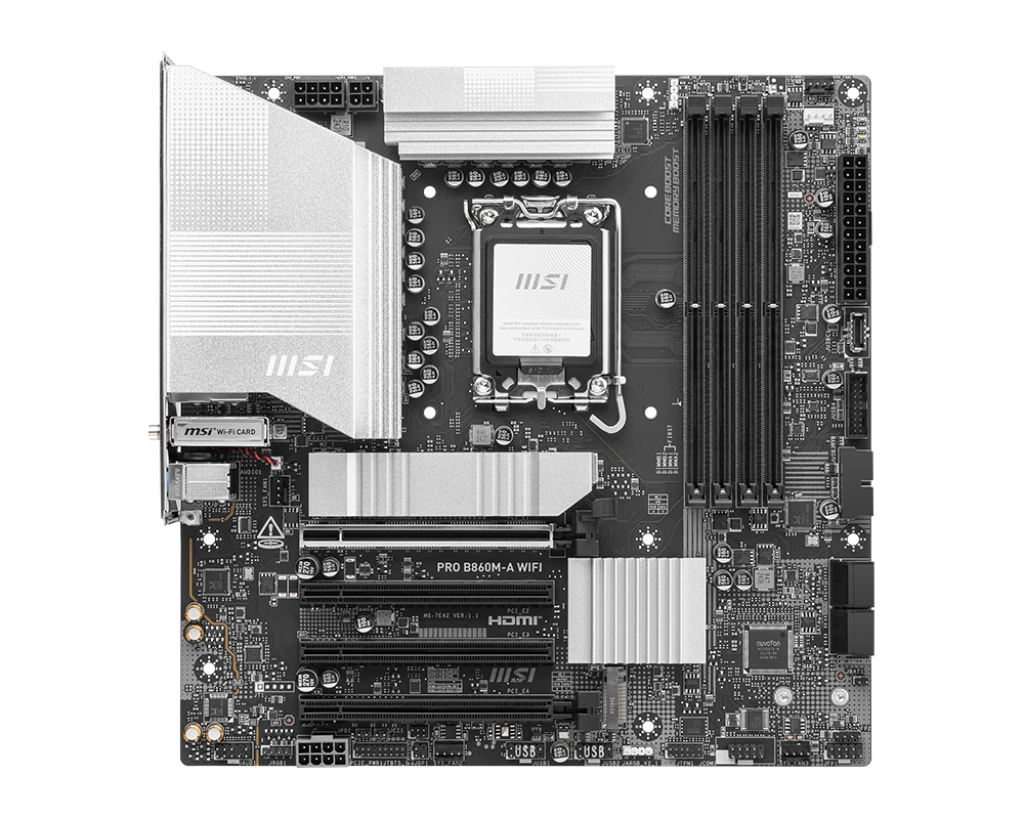

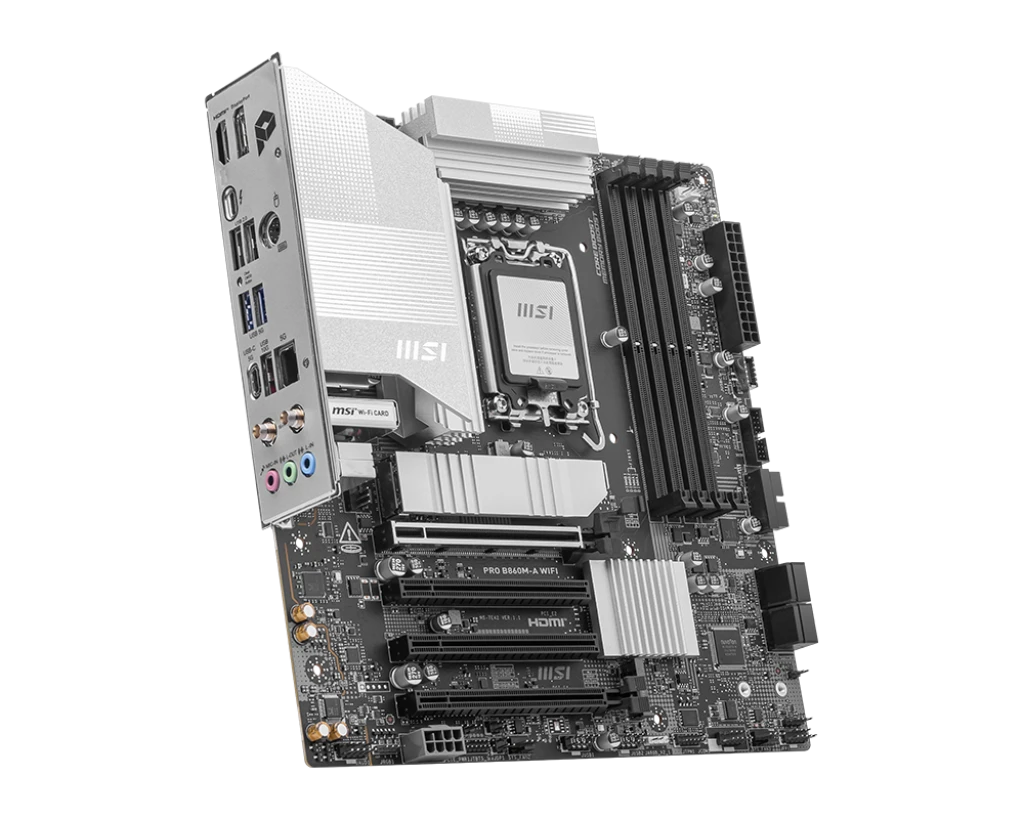

MSI PRO B860M-A (Wi-Fi 7) Micro-ATX Motherboard

The MSI PRO B860M-A (Wi-Fi 7) is a future-ready Micro-ATX motherboard tailored for the Intel Core Ultra Series 2 processors using the new LGA1851 socket. Designed with modern connectivity, performance-focused architecture, and powerful memory support, this motherboard is a stellar choice for business professionals, productivity users, and system builders aiming for next-gen capabilities. Featuring support for DDR5 RAM, PCIe 5.0 storage, and Wi-Fi 7, it delivers remarkable speed and system stability in compact builds.

Features

• Intel Core Ultra Series 2 Support: Built on the Intel B860 chipset, this board is compatible with Intel Core Ultra processors, ensuring strong performance and power efficiency across advanced computing tasks.
• Future-Proof Socket Design: Equipped with the LGA1851 socket, the board supports the next generation of desktop processors for unmatched processing capabilities.
• Advanced Memory Support: Includes 4 x DDR5 slots supporting memory speeds up to 8000MHz (OC) and capacities up to 256GB, offering extensive headroom for multitasking, virtual machines, or demanding workloads.
• Robust PCIe & Expansion: Packed with 4 PCIe x16 slots, it offers ample room for expansion cards, ensuring versatility for future upgrades.

Storage and Expansion

• Triple M.2 Slots:
• 1 x PCIe 5.0 x4 M.2 slot for cutting-edge NVMe SSDs delivering lightning-fast data transfer.
• 2 x PCIe 4.0 M.2 slots for high-performance storage with flexibility in form factors (2280/2260/2242).
• SATA Ports: Offers 4 x SATA 6Gb/s ports for traditional SSDs or HDDs.

Graphics and Display

• Integrated Display Support: Comes with 1 x HDMI and 1 x DisplayPort for onboard graphics output when using CPUs with integrated graphics.
• Multi-GPU Ready: Although not featuring official multi-GPU support, the PCIe configuration can accommodate multiple expansion cards for creative workflows or additional I/O.

Networking and Connectivity

• Next-Gen Wired LAN: Powered by the Realtek 8126 chipset, the motherboard supports blazing-fast 5Gbps LAN for seamless online experiences, low-latency gaming, and rapid file transfers.
• Wi-Fi 7 & Bluetooth 5.4:
• Wi-Fi 7 ensures ultra-fast wireless speeds, low interference, and improved stability.
• Bluetooth 5.4 provides faster data exchange and better range for peripherals and accessories.

Connectivity Options

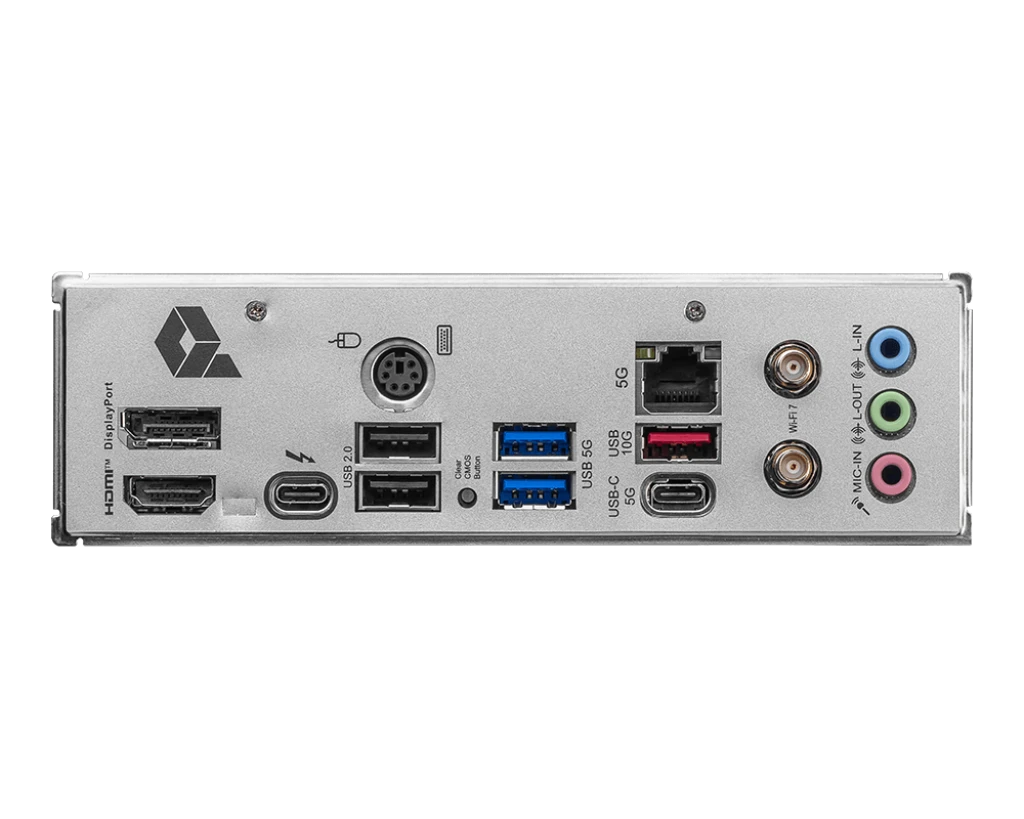

• Comprehensive USB Layout:
• 1 x Thunderbolt 4 (40Gbps) Type-C
• 1 x USB 10Gbps Type-A
• 2 x USB 5Gbps Type-A
• 1 x USB 5Gbps Type-C
• 2 x USB 2.0 ports
• Other Ports:
• 1 x HDMI, 1 x DisplayPort
• 1 x TPM port for secure boot and encryption

Design and Build

• Color Scheme: Sleek black and silver design suited for professional environments or modern custom builds.
• Heatsink Cooling: Integrated heatsinks help regulate thermal performance, especially during heavy loads or high-speed storage use.
• ARGB Lighting: Includes 1 x RGB LED connector (JRGB) for customizable lighting effects.
• Form Factor: Micro-ATX, compatible with compact and mid-sized cases.
• Cable Management: Front-facing ports for clean and efficient internal layout.

Power and Efficiency

• Power Efficiency: Optimized to run with approx. 60W power draw, making it efficient for 24/7 operation or always-on builds.
• Thermal Management: Heatsink-equipped components enhance durability and prolong system lifespan.

Compatibility and Warranty

• OS Support: Fully compatible with Windows 11.
• Processor Compatibility: Designed specifically for Intel Core Ultra Series 2 processors using the LGA1851 socket.
• Warranty: Backed by a reliable 3-year manufacturer warranty, ensuring long-term support and protection.

Price and Availability

The MSI PRO B860M-A (Wi-Fi 7) is available now at Computer Village Agrabad, Chattogram, Bangladesh. Visit in-store or contact for current pricing and stock updates.
