MSI PRO A620M-E DDR5 AMD Motherboard
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI PRO A620M-E |
|
Color |
Black |
|
CPU Data |
Chipset Brand: AMD Chipset: AMD B850 Sockets Supported: AM5 Built-in Processor: N/A Supported CPU: Supports AMD Ryzen 8000/
7000 Series Desktop Processors Generation: N/A |
|
Memory
Support |
Memory Type: DDR5 Memory MHz: 6800+(OC)/ 6600(OC)/ 6400(OC)/
6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/
4800(JEDEC) MHz Memory Channel: Dual Memory Slot: 2 Memory Max: 128GB |
|
Storage Info |
Storage Interface: 6.0Gb/s M.2/SSD Expansion Slot: 1 M.2/SSD Expansion: 1 x M.2 (1 x M.2
(From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices) |
|
Graphics
Info |
Multi-GPU Support: N/A PCI Express Slot: 1 x PCI-E x 16, 1 x PCI-E
x 1 (PCI_E1 Gen PCIe 4.0 supports up to x16, PCI_E2 Gen PCIe 3.0 supports up
to x1) |
|
Audio & Video |
Audio Chipset: Realtek ALC897 Audio Channel – 7.1 |
|
Network
& Connectivity |
LAN Chipset: Realtek RTL8111H LAN Speed (Mbps): 10/ 100/ 1000/ 2500/ 5000Mbps |
|
Ports Data |
USB Port: 2 x USB 2.0, 4 x USB 3.2 Gen
1 Type A VGA Port: 1 HDMI Port: 1 Display: N/A SATA Port: 4 TPM: 1 |
|
Technical
Data |
Cable Management: Front Heatsink: Yes RGB Support: ARGB RGB Connector: 1 x RGB LED connector (JRGB) Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported Operating System: Windows 11,
Windows 10 Supported Operating System: Ryzen 7000/
8000 Series Processors |
|
Warranty |
3 year |
|
* Product
may vary with different Kit or Version |
|
Product Details
MSI

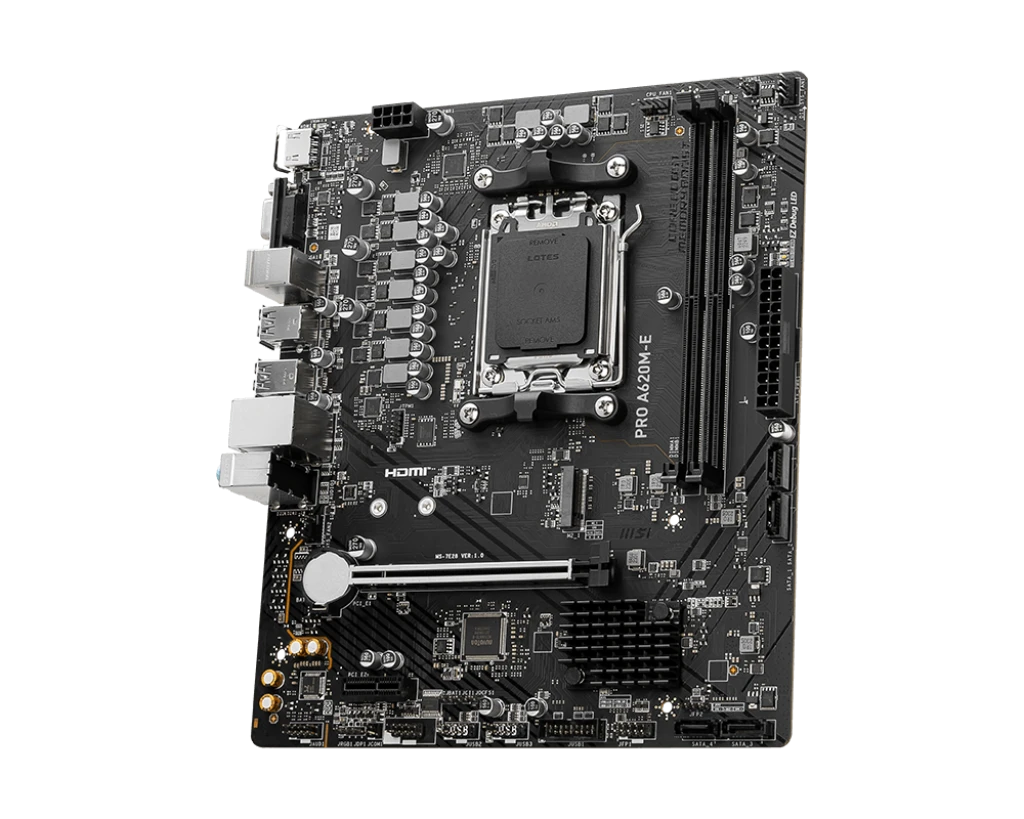

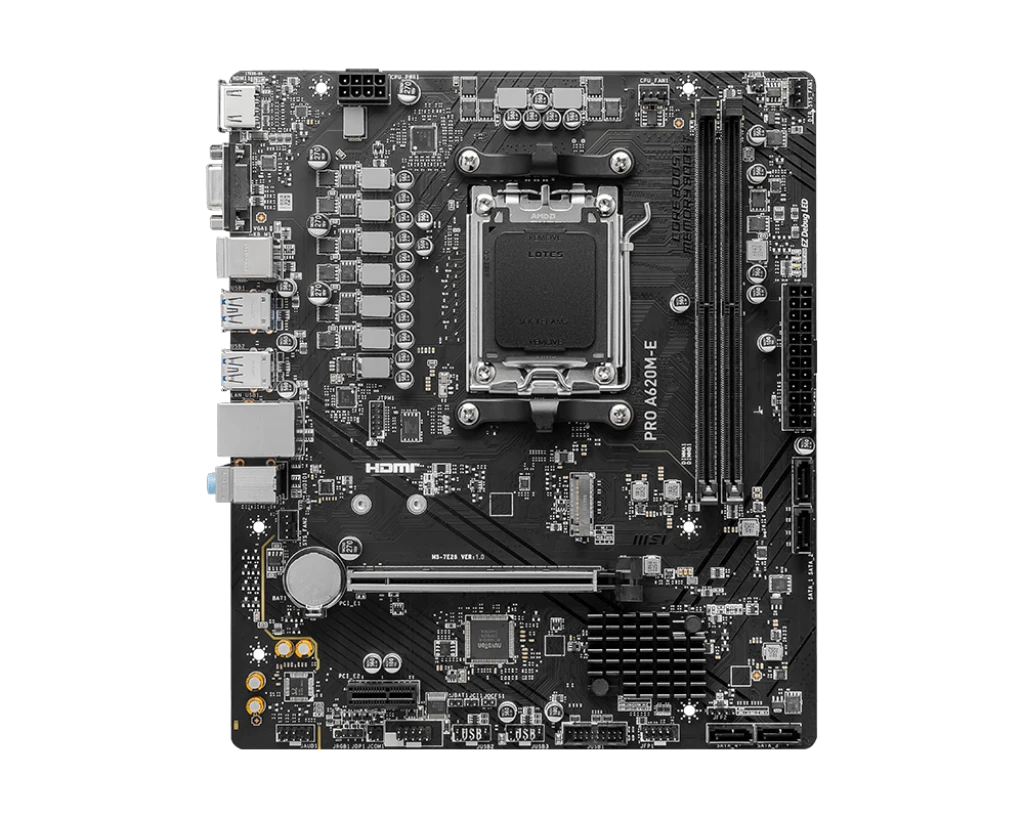

PRO A620M-E Micro-ATX Motherboard
The MSI PRO A620M-E is a
next-generation Micro-ATX motherboard designed for the latest AMD
Ryzen 8000 and 7000 Series Desktop Processors on the powerful AM5
platform. Engineered for stability, performance, and productivity, this
board is a compelling choice for users seeking a budget-friendly yet
future-ready solution that supports DDR5 memory, PCIe 4.0, and high-speed
M.2 storage.
Features
- Advanced CPU Support:
This motherboard supports AMD Ryzen 7000 and 8000 Series processors
via the AM5 socket, unlocking modern processing power with
cutting-edge architecture and energy efficiency.
- Chipset & Architecture: Built on the AMD B850 chipset, the board is
optimized for enhanced connectivity and long-term compatibility with AMD’s
AM5 roadmap.
Memory
and Storage Support
- DDR5 Memory Ready:
It features dual DDR5 memory slots supporting up to 128GB of
high-speed memory with overclocking capabilities up to 6800+ MHz,
ensuring peak performance in multitasking, gaming, and content creation.
- Storage Expansion:
- Includes 1 x PCIe 4.0 M.2 slot directly linked
to the CPU, supporting NVMe SSDs with 2280 and 2260 form
factors.
- 4 x SATA 6Gb/s ports
offer reliable options for traditional hard drives and 2.5" SSDs.
Graphics
and Expansion Options
- PCIe Slots:
- 1 x PCIe 4.0 x16 slot for a dedicated graphics card, ideal for gaming or
graphical workloads.
- 1 x PCIe 3.0 x1 slot
for expandability such as sound cards, network cards, or other PCIe
devices.
- Display Outputs:
Equipped with both VGA and HDMI ports, the board supports both
modern and legacy display interfaces, offering flexibility in monitor
choices.
Audio
and Networking
- High-Definition Audio:
Integrated Realtek ALC897 audio chipset delivers 7.1-channel
high-definition sound, enhancing multimedia enjoyment with
crystal-clear output.
- Next-Gen LAN:
Features a Realtek RTL8111H LAN chipset that supports ultra-fast
network speeds up to 5Gbps, making it ideal for high-speed
downloads, streaming, or online gaming.
Connectivity
Options
- USB Ports:
- 4 x USB 3.2 Gen 1 Type-A for high-speed peripheral connections.
- 2 x USB 2.0
ports for legacy device support.
- Additional I/O:
Equipped with TPM support, offering enhanced security features for
Windows 11 and business-class installations.
Design
and Build
- Form Factor:
Compact Micro-ATX design for smaller PC builds without sacrificing
performance.
- Heatsink Design:
Includes integrated heatsinks for VRMs and chipset cooling, ensuring
long-term stability under load.
- ARGB Support:
Comes with 1 x RGB LED connector (JRGB) to sync lighting effects
with compatible cases and peripherals, enhancing visual aesthetics.
- Power Consumption:
Operates efficiently with a power consumption of approximately 60W,
helping reduce energy costs over time.
Compatibility
and Warranty
- OS Support:
Fully compatible with Windows 10 and Windows 11, offering broad
software support.
- Socket & CPU Compatibility: Built for AMD AM5 socket processors, including
the latest Ryzen 8000 and 7000 Series CPUs.
- Warranty:
Backed by a reliable 3-year manufacturer warranty for peace of mind
and product assurance.
Price
and Availability
The MSI PRO A620M-E is now available at Computer Village Agrabad, Chattogram, Bangladesh. Visit the store for competitive pricing and up-to-date stock information.
