MSI B860 GAMING PLUS (Wi-Fi 7) DDR5 ATX Motherboard
Key Specification
Product Specification
|
Brand |
MSI |
|
Model |
MSI B860M GAMING PLUS (Wi-Fi 7) |
|
Color |
Black |
|
CPU Data |
Chipset Brand: Intel Chipset: Intel B860 Sockets Supported: LGA1851 Built-in Processor: N/A Supported CPU: Intel Core Ultra
Processors (Series 2) Generation: Ultra |
|
Memory
Support |
Memory Type: DDR5 Memory MHz: 8800 - 6400 (OC) MT/s / 6400 -
4800 (JEDEC) MT/s Non-ECC, Un-buffered memory Memory Channel: Dual Memory Slot: 4 Memory Max: 256GB |
|
Storage Info |
Storage Interface: 6.0Gb/s M.2/SSD Expansion Slot: 3 M.2/SSD Expansion : 3 x M.2 (1 x M.2
supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices, 1 x M.2
supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 1 x M.2 supports up
to PCIe 4.0 x2 , supports 2280 devices) |
|
Graphics
Info |
Multi-GPU Support: N/A PCI Express Slot: 4 x PCI-E x16 slot |
|
Audio & Video |
Audio Chipset: REALTEK ALC897 Codec Audio Channel – 7.1 |
|
Network
& Connectivity |
LAN Chipset: 1 x 5G LAN LAN Speed (Mbps): 5Gbps WiFi: Yes WiFi Technology: Wi-Fi 7 (802.11 a/ b/ g/ n/
ac/ ax/ be) Bluetooth: Bluetooth 5.4 |
|
Ports Data |
USB Port: 4 x USB 2.0 (Rear), 2 x USB
5Gbps Type A (Rear), 2 x USB 10Gbps Type A (Rear), 1 x Thunderbolt 4 40Gbps
(Type-C) VGA Port: N/A HDMI Port: 1 Display: 1 SATA Port: 4 Thunderbolt: 1 TPM Port: 1 x TPM pin header(Support
TPM 2.0) |
|
Technical
Data |
Cable Management: Front Heatsink: Yes RGB Support: RGB RGB Connector: 2 x Addressable V2 RGB LED
connector (JARGB_V2), 1 x RGB LED connector(JRGB) Approx. Power Consumption: 70W Form Factor: ATX |
|
Compatibility |
Supported Operating System: Windows 11
64-bit Supported Operating System: Supports
Intel Core Ultra Processors (Series 2) |
|
Warranty |
3 year |
|
* Product
may vary with different Kit or Version |
|
Product Details
MSI
B860M GAMING PLUS (Wi-Fi 7) ATX Motherboard

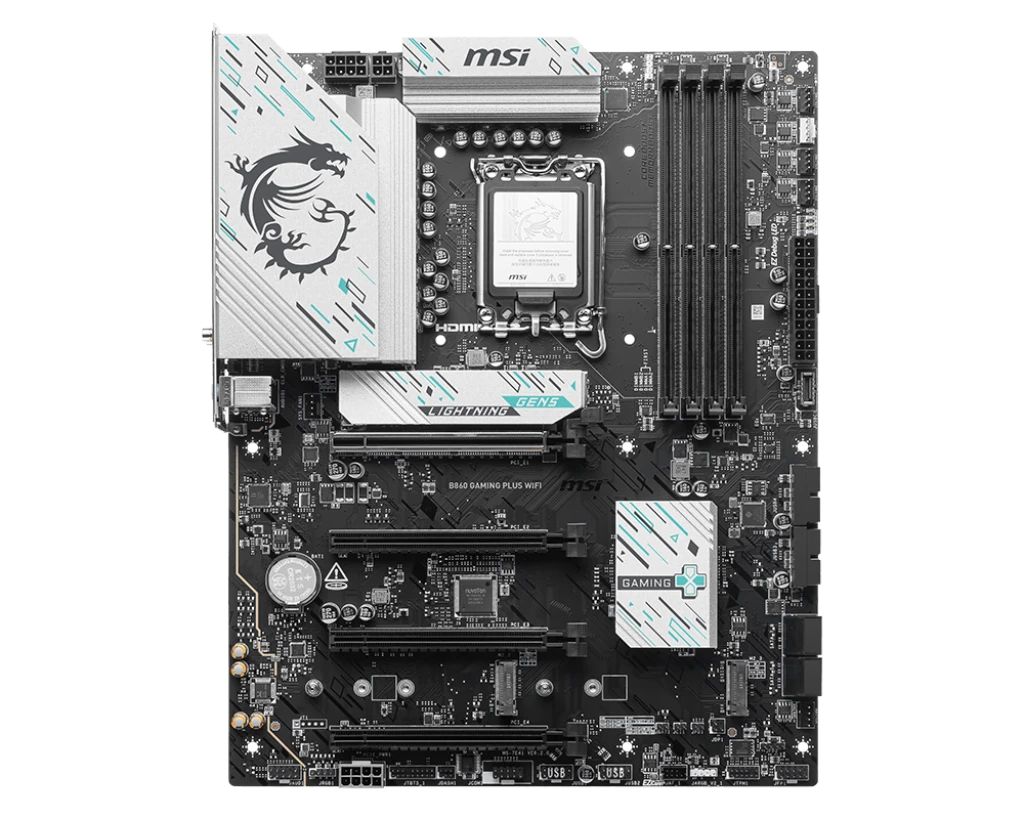

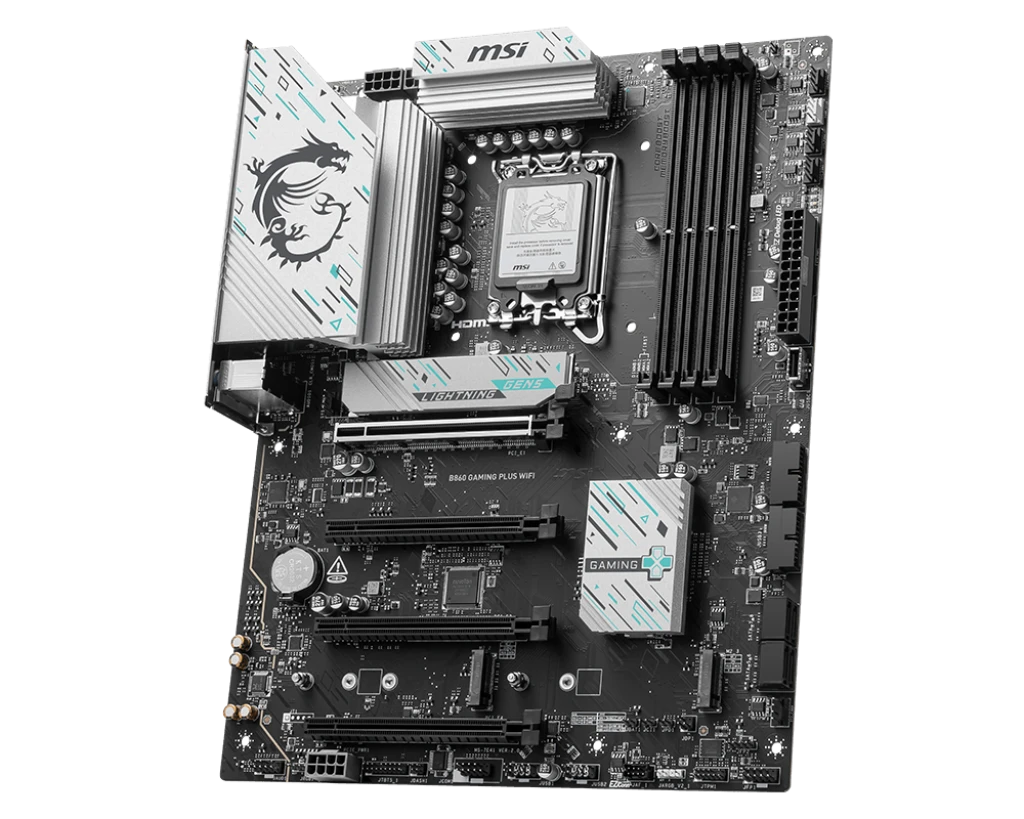

The MSI B860M GAMING PLUS (Wi-Fi
7) is a high-performance ATX motherboard engineered for modern Intel
Core Ultra Series 2 processors on the LGA1851 socket. Designed to
deliver next-gen speed, stability, and connectivity, it supports DDR5 memory,
PCIe 5.0 NVMe SSDs, Wi-Fi 7, and comes equipped with advanced RGB
lighting connectors—all tailored for gamers, creators, and enthusiasts
building a future-proof desktop system.
Features
- Intel B860 Chipset:
Optimized for the latest Intel Core Ultra (Series 2) processors.
- LGA1851 Socket:
Full support for next-generation Intel CPUs, delivering better performance
and efficiency.
- DDR5 Memory Ready:
Supports memory speeds of 8800 MT/s (OC) to 4800 MT/s (JEDEC)
for ultra-fast performance with up to 256GB capacity across 4
dual-channel DIMM slots.
- PCI Express Expansion:
Features 4 x PCIe x16 slots for multiple expansion cards and
high-bandwidth applications.
Storage
and Expansion
- Triple M.2 Slots:
- 1 x PCIe 5.0 x4
(2280/2260/2242) for cutting-edge SSDs.
- 1 x PCIe 4.0 x4
(2280/2260) for high-speed NVMe drives.
- 1 x PCIe 4.0 x2
(2280) for additional expansion.
- 4 x SATA III Ports
for 6Gb/s SSDs and HDDs.
Graphics
and Display
- Integrated Graphics Output: 1 x HDMI for processors with integrated
graphics support.
- Multi-GPU Support:
While SLI/CrossFire aren’t officially supported, expansion capabilities
remain flexible.
Network
and Connectivity
- 5Gbps LAN Port:
Ultra-fast wired network powered by a high-speed 5G LAN chipset.
- Wi-Fi 7 (802.11a/b/g/n/ac/ax/be): The latest wireless standard offering superior
bandwidth and lower latency.
- Bluetooth 5.4:
Enhanced wireless device pairing with improved range and performance.
Connectivity
Options

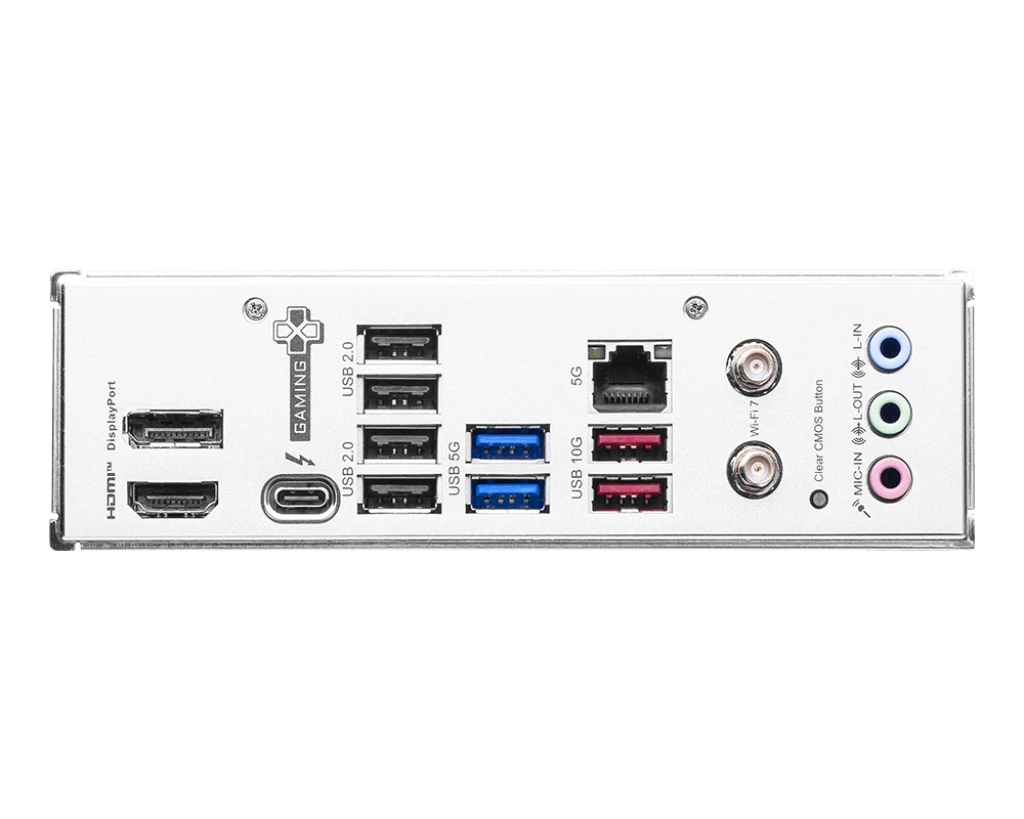

- Rear USB Ports:
- 4 x USB 2.0
- 2 x USB 5Gbps Type-A
- 2 x USB 10Gbps Type-A
- 1 x Thunderbolt 4 (40Gbps) Type-C
- Video Output:
1 x HDMI
- SATA Ports:
4
- TPM 2.0 Header:
1 x TPM pin header for enhanced system security and Windows 11 compatibility
Design
and Build
- Form Factor:
Standard ATX, ideal for mid- to full-sized PC builds.
- Color Theme:
Sleek black finish with subtle silver accents for a premium gaming
aesthetic.
- RGB Lighting:
- 2 x Addressable RGB (JARGB_V2) connectors
- 1 x RGB LED (JRGB) connector for synchronized lighting effects across your setup.
- Cooling and Heatsinks:
Integrated heatsinks ensure thermal regulation under demanding loads.
- Cable Management:
Designed for front cable routing to maintain a tidy build layout.
Power
and Efficiency
- Typical Power Consumption: Approx. 70W
- Enhanced Thermal Design: Optimized for balanced cooling and power efficiency.
Compatibility
and Warranty
- OS Support:
Compatible with Windows 11 64-bit
- Processor Compatibility: Designed for Intel Core Ultra Series 2
processors
- Warranty:
Comes with a 3-year manufacturer warranty
Price
and Availability
The MSI B860M GAMING PLUS (Wi-Fi
7) motherboard is available at Computer Village Agrabad, Chattogram,
Bangladesh. Please contact the store directly for the latest pricing and
stock availability.
