Brand

Maxsun

Model

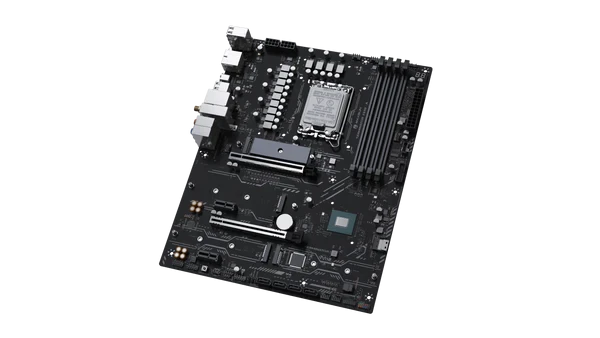

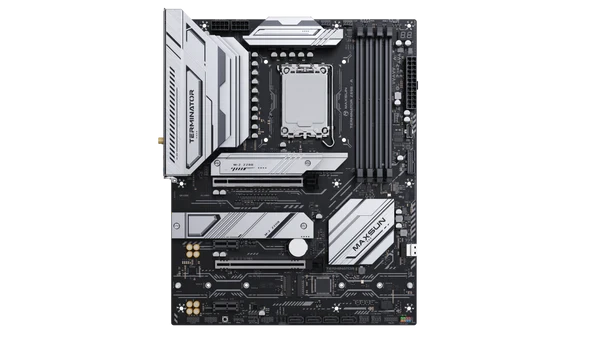

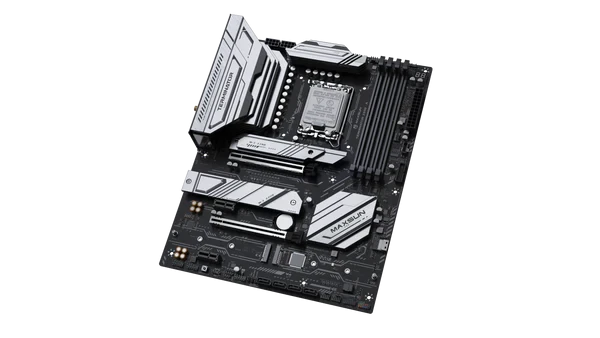

Maxsun Terminator Z890-A (Wi-Fi 6)

Color

Black & White

CPU Data

Chipset Brand: Intel

Chipset: Intel Z890

Sockets Supported: LGA1851

Built-in Processor: N/A

Supported CPU: Intel Core Ultra processors

Generation: Ultra

Memory Support

Memory Type: DDR5

Memory MHz: 8800(O.C)/ 8600(O.C)/ 8400(O.C)/ 8266(O.C)/ 8200(O.C)/ 8000(O.C)/ 7950(O.C)/ 7900(O.C)/ 7800(O.C)/ 7600(O.C.)/ 7400(O.C.)/ 7200(O.C.)/ 7000(O.C.)/ 6800(O.C.)/ 6600(O.C.)/ 6400/ 6200/ 6000/ 5800/ 5600MHz/ 4800MHz DIMM.

Memory Channel: Dual

Memory Slot: 4

Memory Max: 256GB

Storage Info

Storage Interface: 6.0Gb/s

M.2/SSD Expansion Slot: 4

M.2/SSD Expansion : 4 x M.2 Slot (1 x M.2 type 2242/2280 supports PCIe 5.0 x4/x2, 3 x M.2 type 2242/2280/22110 supports PCIe 4.0 x4/x2)

Graphics Info

Multi-GPU Support: N/A

PCI Express Slot: 1 x PCIe 5.0 x16 (configurable as x8+x8 or x8+x4+x4), 1 x PCIe x16 (supports PCIe 4.0 x4), 2 x PCIe x1 (supports PCIe 4.0 x1)

Audio & Video

Audio Chipset: REALTEK ALC897 Codec

Audio Channel – Unmentioned

Network & Connectivity

LAN Chipset: Realtek RTL8125BG/D 2.5G Ethernet

LAN Speed (Mbps): 10/ 100/ 1000/ 2500 Mbps

WiFi: Yes

WiFi Technology: Wi-Fi 6

Bluetooth: Bluetooth 5.2

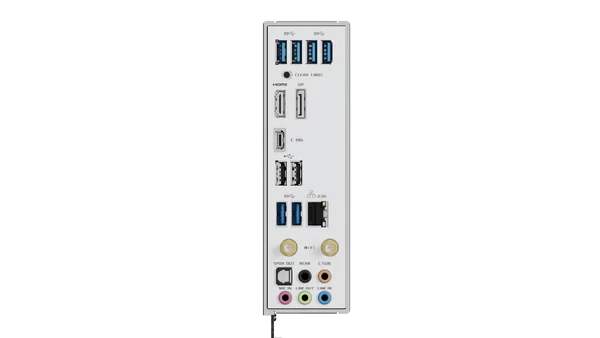

Ports Data

USB Port: 2 x USB 10G Type-A, 4 x USB 5G Type-A, 2 x USB 2.0 Type-A, 1 x USB 40G Type-C

VGA Port: N/A

HDMI Port: 1

Display: 1

SATA Port: 4

Technical Data

Cable Management: Front

Heatsink: Yes

RGB Support: ARGB

RGB Connector: 2 x 3-Pin ARGB, 1 x 4-Pin NRGB

Approx. Power Consumption: 70W

Form Factor: ATX

Compatibility

Supported Operating System: Windows 10, 11

Supported Operating System: Intel LGA1851, compatible with Intel Core Ultra processors

Warranty

3 year

* Product may vary with different Kit or Version
