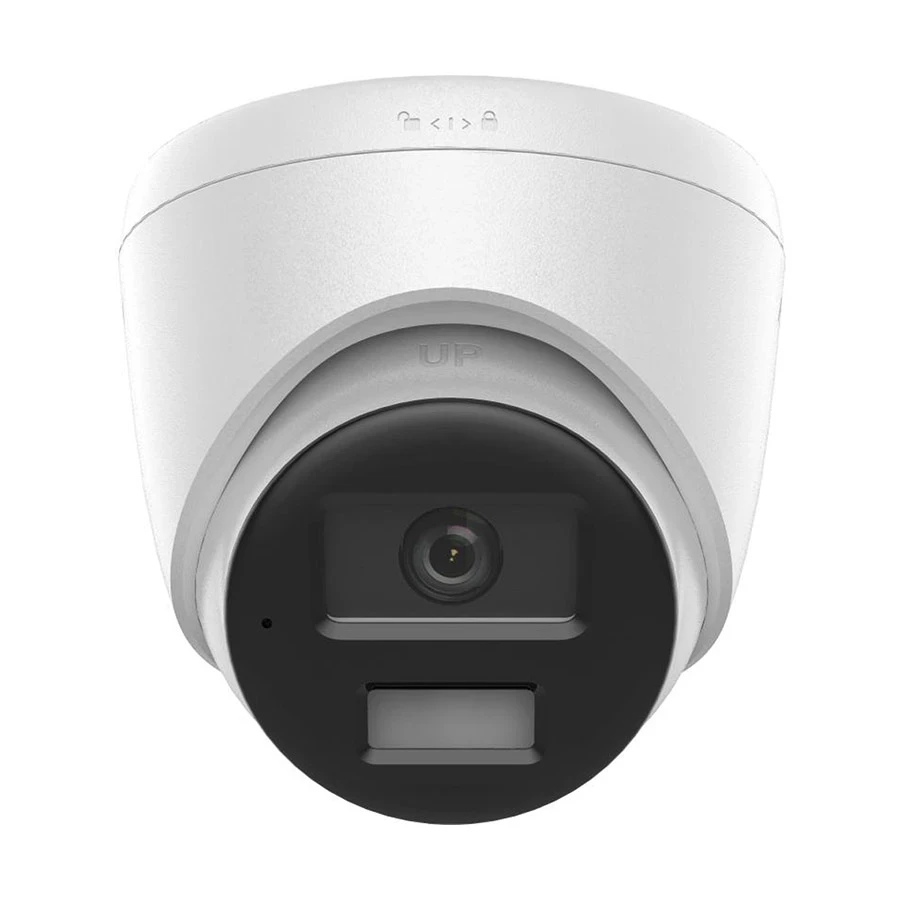

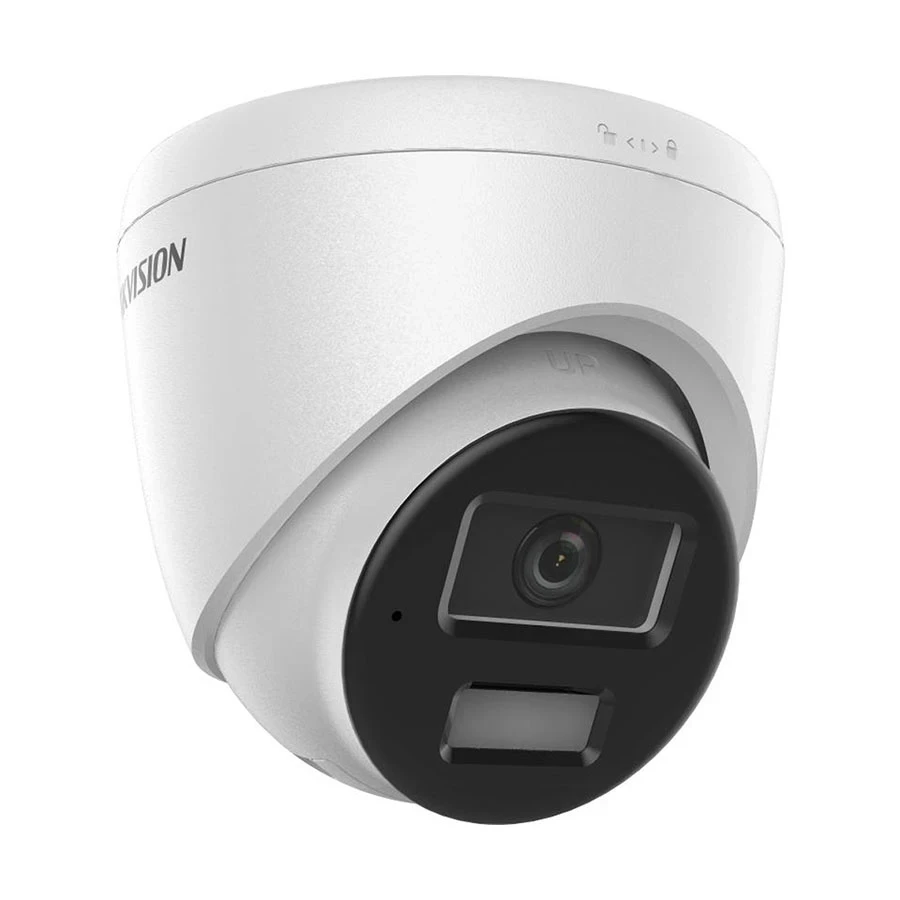

Hikvision DS-2CD1363G2-LIUF/SL (2.8mm) (6.0MP) Smart Hybrid Light Fixed Turret IP Camera
Key Specification
‣ Usage - Outdoor
‣ Form-Factor - Turret
‣ Mega Pixels (MP) - 6.0
‣ Night Vision Mode - Black
and White
‣ Working Distance – 76
Meter
Product Specification
|
Brand |
Hikvision |
|
Model |
Hikvision
DS-2CD1363G2-LIUF/SL |
|
Usage |
Outdoor |
|
Type |
IP
Camera |
|
Camera |
Number of Camera: 1 Camera Type: Fixed Mega Pixels (MP): 6.0 Max. Camera Resolution: 3200 x 1800 Secondary Camera Type: Not Applicable Secondary Camera Mega Pixel (MP): Not
Applicable Secondary Camera Max Resolution: Not
Applicable Sensor Type: 1/2.4 Inch Progressive Scan
CMOS Resolution: Main Stream: 50Hz: 20fps (3200 x
1800, 2688 x 1520, 1920 x 1080, 1280 x 720), 60Hz: 20fps (3200 x 1800, 2688 x
1520, 1920 x 1080, 1280 x 720), Sub-Stream: 50Hz: 20fps (1280 x 720, 640 x
480, 640 x 360), 60Hz: 20fps (1280 x 720, 640 x 480, 640 x 360) Shutter Speed: 1/3s to 1/100,000s Slow Shutter: Unmentioned Day & Night: IR cut filter Night Vision: Yes Night Vision Mode: Black and White S/N Ratio: >52 dB |
|
Lens |
Number
of Lens: Single Lens (Primary) Lens: 2.8mm Focal
Length: 4.8 mm to 120 mm PTZ: No Zoom: Unmentioned Viewing
Angle: 105 Degree (H), 55 Degree (V), 127 Degree (D) |
|
Image |
Triple-Stream: Unmentioned Frame Rate - Unmentioned Noise Reduction: Yes Digital Noise Reduction (DNR): 3D DNR Wide Dynamic Range (WDR): 120 dB |
|
Network
& Connectivity |
Sim
Supported: No Sim
Network Type: Not Applicable Interface(s):
1 x RJ45 10M/100M self-adaptive Ethernet port Wi-Fi: No Wi-Fi
Details: No |
|
Security |
Security: Password protection, complicated
password, watermark, basic and digest authentication for HTTP, WSSE and
digest authentication for Open Network Video Interface, security audit log,
host authentication (MAC address) Password Protection: Yes Watermark: Yes Motion Detection: Yes Human Detection: Yes Face Detection: Unmentioned Lightning Protection: Unmentioned Surge Protection: Unmentioned Voltage Transient Protection: Unmentioned Simultaneous Live View: Up to 6 channels |
|
Technical
Data |
Video
Type: Main stream: H.265+/ H.265/ H.264+/ H.264, Sub-stream: H.265/ H.264/
MJPEG Mic
& Speaker: Both Mic and Speaker Audio
Communication: Two-Way Audio Input
Trigger: Unmentioned Working
Distance: 76 Meter Protocols:
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP,
SMTP, UPnP |
|
Physical Attributes |
Form-Factor: Turret Card Slot: Yes Storage Type: MicroSD Storage Supported: Unmentioned Body Material: Metal/Plastic Color: White Dimensions: 110 x 102.7mm Weight (gm): 340 gm Relevant Accessories (Not Included): Without
Adapter & Wall Mount |
|
Power |
Power: 12VDC Battery
Capacity: Not Applicable Battery
Backup: No Battery
Backup Time: Not Applicable Power
Supply: 12 VDC -/+ 25%, 0.66 A, max. 8 W,5.5 mm coaxial power plug, reverse
polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W Approx.
Power Consumption: 9.5W Operating
Temperature: -30 Degree C to 65 Degree C Operating
Humidity: Humidity 90% or less (non-condensing) |
|
Warranty |
1 Year (Without Adapter) |
|
* Product may vary with
different Kit or Version |
|
Product Details
Hikvision
DS-2CD1363G2-LIUF/SL Outdoor IP Camera
The Hikvision
DS-2CD1363G2-LIUF/SL is a 6.0MP high-resolution outdoor turret IP camera
featuring two-way audio, motion detection, and human detection. It
delivers clear night vision in black and white mode and supports advanced
security features, making it ideal for professional surveillance
applications.
Camera
Performance
- Sensor:
1/2.4 Inch Progressive Scan CMOS for high-definition imaging.
- Resolution:
3200 x 1800 (Main Stream).
- Frame Rate:
- Main Stream:
- 50Hz:
20 fps (3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720).
- 60Hz:
20 fps (3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720).
- Sub-Stream:
- 50Hz:
20 fps (1280 x 720, 640 x 480, 640 x 360).
- 60Hz:
20 fps (1280 x 720, 640 x 480, 640 x 360).
- Shutter Speed:
1/3s to 1/100,000s.
- Slow Shutter:
Unspecified.
- Day & Night:
IR cut filter for automatic switching.
- Night Vision:
Yes.
- Night Vision Mode:
Black & White.
- S/N Ratio:
>52 dB, ensuring minimal noise in low-light conditions.
Lens
& Viewing Capabilities
- Lens:
2.8mm.
- Focal Length:
4.8mm to 120mm.
- PTZ (Pan-Tilt-Zoom):
No.
- Zoom:
Unspecified.
- Viewing Angles:
- Horizontal:
105°.
- Vertical:
55°.
- Diagonal:
127°.
& Video Quality
- Noise Reduction:
3D Digital Noise Reduction (DNR).
- Wide Dynamic Range (WDR): 120 dB, improving performance in high-contrast
lighting.
- Triple-Stream:
Unspecified.
Network
& Connectivity
- Ethernet Port:
1 x RJ45 10M/100M self-adaptive Ethernet port.
- Wi-Fi:
No.
- Supported Protocols:
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS,
FTP, SMTP, UPnP.
Security
Features
- Password Protection:
Yes.
- Security Protocols:
Watermark, basic and digest authentication for HTTP, WSSE and digest
authentication for Open Network Video Interface, security audit log, host
authentication (MAC address).
- Motion Detection:
Yes.
- Human Detection:
Yes.
- Face Detection:
Unspecified.
- Simultaneous Live View: Up to 6 channels.
Storage
& Audio
- Card Slot:
Yes.
- Storage Type:
MicroSD.
- Storage Supported:
Unspecified.
- Mic & Speaker:
Yes, supports two-way audio communication.
- Audio Communication:
Two-Way Audio.
- Input Trigger:
Unspecified.
- Working Distance:
76 meters.
Physical
Build & Power
- Form Factor:
Turret, ideal for outdoor installations.
- Body Material:
Metal/Plastic.
- Color:
White.
- Dimensions:
110 x 102.7mm.
- Weight:
340 gm.
- Relevant Accessories:
Without Adapter & Wall Mount.
Power
& Environmental Conditions
- Power Supply:
- 12VDC ± 25%, 0.66 A.
- PoE Power Consumption: 9.5W.
- Direct Power Consumption: 8W.
- Operating Temperature:
-30°C to 65°C.
- Operating Humidity:
Up to 90% (non-condensing).
Warranty
- 1 Year Warranty
(without adapter).
