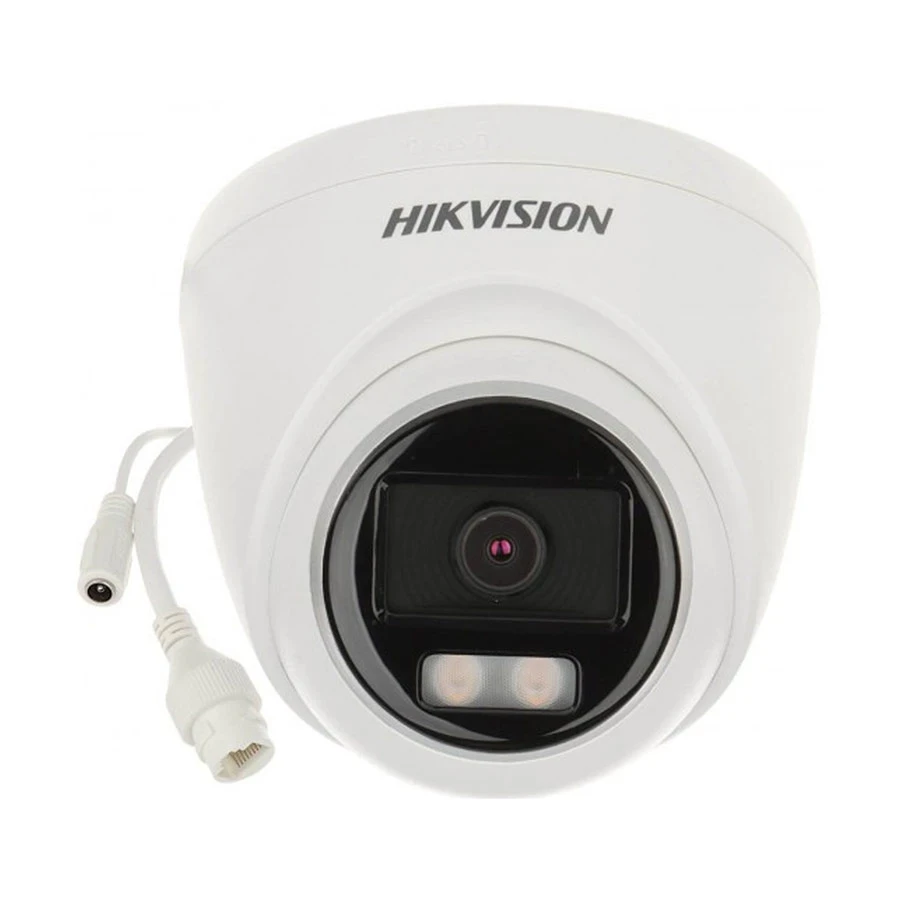

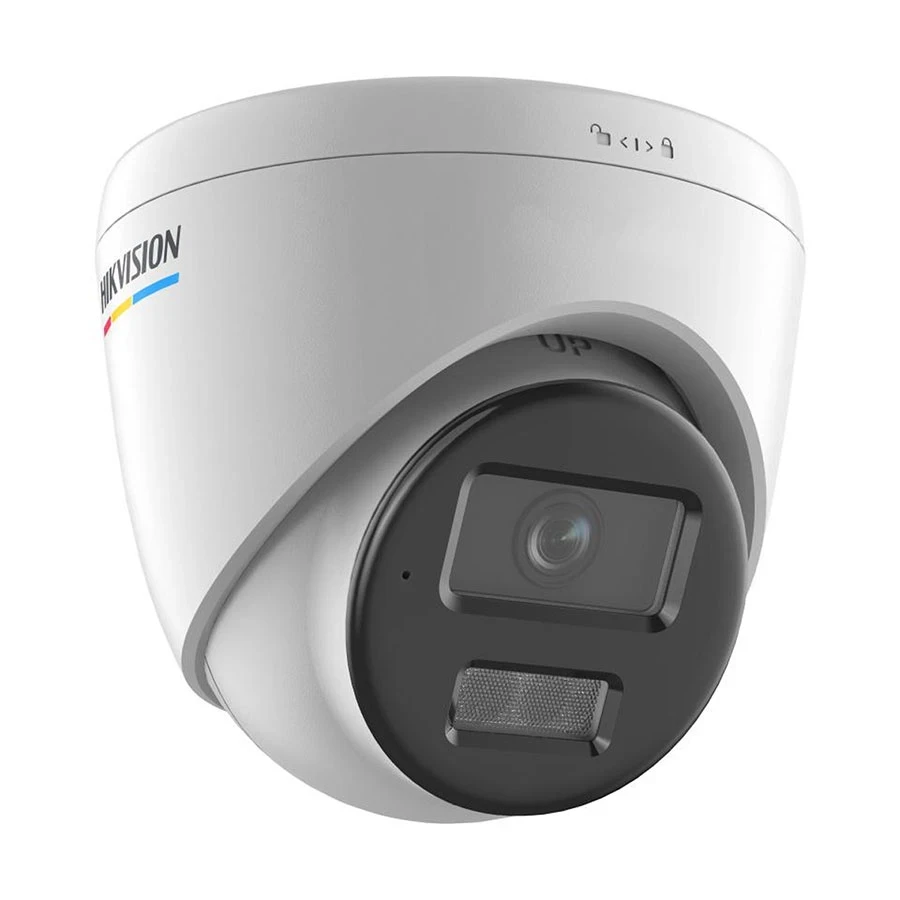

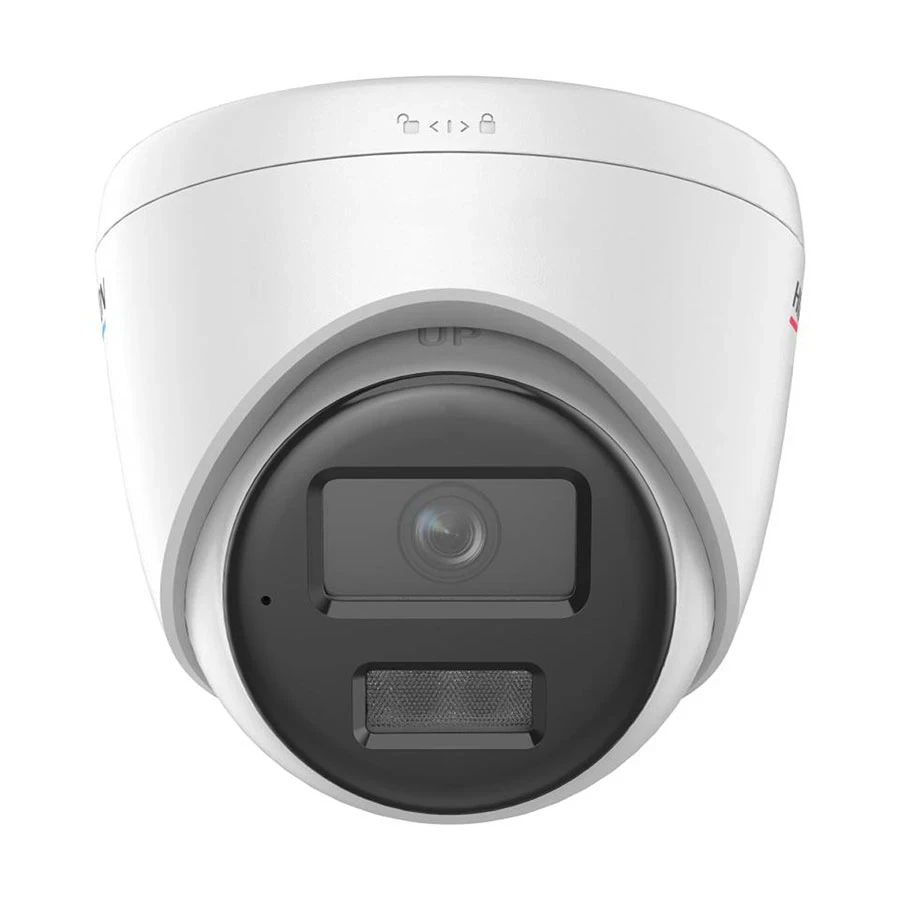

Hikvision DS-2CD1347G2H-LIU Outdoor IP Camera

The Hikvision DS-2CD1347G2H-LIU is a high-performance outdoor IP camera designed to provide 4.0MP ultra-clear resolution, color night vision, and advanced security features. With its durable turret-style metal and plastic body, this camera ensures reliable surveillance in various weather conditions.

Camera Performance

• Sensor: 1/3 Inch Progressive Scan CMOS, capturing high-definition video.
• Resolution: 2560 x 1440, ensuring clear and detailed imagery.
• Shutter Speed: 1/3s to 1/100,000s, allowing for excellent exposure control.
• Day & Night: IR cut filter, automatically switching between modes.
• Night Vision: Yes, supports color night vision for superior visibility in low-light environments.
• S/N Ratio: >52 dB, reducing noise for better image clarity.

Lens & Viewing Capabilities

• Lens: 2.8mm fixed lens.
• Focal Length: 2.8mm.
• Viewing Angles:
• Horizontal: 96°
• Vertical: 52°
• Diagonal: 114°
• PTZ (Pan-Tilt-Zoom): No.
• Zoom: 25x Optical Zoom, 16x Digital Zoom for flexible surveillance needs.

Image & Video Quality

• Noise Reduction: 3D Digital Noise Reduction (DNR) minimizes grainy video artifacts.
• Wide Dynamic Range (WDR): 120 dB, improving visibility in high-contrast lighting.
• Frame Rate:
• Main Stream:
• 50 Hz: 20 fps, 25 fps
• 60 Hz: 20 fps, 24 fps
• Triple-Stream: Unmentioned.

Network & Connectivity

• Ethernet Port: 1 x RJ45 10M/100M self-adaptive Ethernet port.
• Wi-Fi: Not supported.
• Protocols Supported: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RCTP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP.

Security Features

• Password Protection: Yes, with advanced encryption and authentication methods.
• Watermark: Yes, ensuring video integrity.
• Motion Detection: Yes, providing alerts based on movement.
• Human Detection: Yes, offering intelligent security detection.
• Face Detection: Not specified.
• Security Protocols: Includes basic and digest authentication for HTTP, WSSE, host authentication (MAC address), and security audit log.

Storage & Audio

• Card Slot: Not available.
• Storage Type: Not supported.
• Mic & Speaker: No.
• Audio Communication: No.
• Input Trigger: Motion detection.

Physical Build & Power

• Form Factor: Turret, ideal for outdoor mounting.
• Body Material: Metal + Plastic, offering durability.
• Color: White.
• Dimensions: 110 x 93 mm.
• Weight: 3000 gm.
• Relevant Accessories: Without Adapter & Wall Mount.

Power & Environmental Conditions

• Power Supply:
• 12 VDC ± 25%, 0.5 A, max. 6.0 W.
• PoE (IEEE 802.3af, Class 3, max. 7.5 W).
• 24 VAC option available.
• Power Consumption: Approx. 7.5W.
• Operating Temperature: -30°C to 65°C, ensuring operation in extreme conditions.
• Operating Humidity: Up to 95% (non-condensing).

Warranty

• 1 Year Warranty (without adapter).
