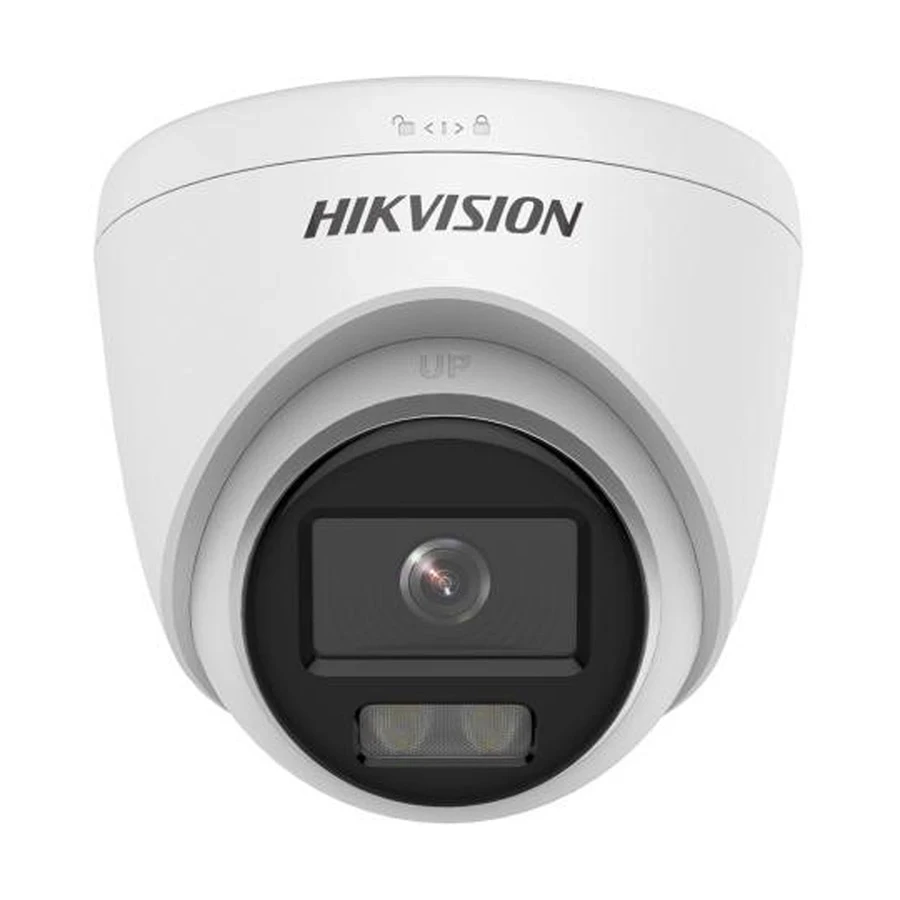

Hikvision DS-2CD1347G0-L IP Camera

The Hikvision DS-2CD1347G0-L is a high-performance indoor IP camera designed to deliver exceptional video quality with a 4.0MP resolution and a maximum resolution of 2560 x 1440. Ideal for various indoor surveillance needs, this camera offers features such as motion detection, color night vision, and advanced security protocols.

Camera Performance

• Sensor: 1/2.7 Inch Progressive Scan CMOS, designed for capturing high-definition images.
• Resolution: 2560 x 1440 resolution ensures sharp and detailed video.
• Shutter Speed: 1s to 1/100,000s, providing excellent clarity in various lighting conditions.
• Day & Night: Night vision mode is available, but day/night functionality specifics are unmentioned.
• Night Vision: Color night vision allows for clear video capture even in low light.
• S/N Ratio: Not specified.

Lens & Viewing Capabilities

• Lens: 2.8mm fixed lens.
• Focal Length: Not specified.
• Viewing Angles:
• Horizontal: 96.5°
• Vertical: 50.8°
• Diagonal: 113.9°
• PTZ: No, this model does not support pan/tilt/zoom functionality.
• Zoom: Not specified.

Image Quality

• Noise Reduction: 3D Digital Noise Reduction (DNR) helps to reduce image noise for clearer video.
• Wide Dynamic Range (WDR): 120 dB, enhancing image clarity in scenes with contrasting light levels.
• Frame Rate:
• Main Stream: 25 fps (50 Hz), 30 fps (60 Hz) for various resolutions.
• Sub-Stream: 25 fps (50 Hz), 30 fps (60 Hz) for smaller resolutions.
• Third Stream: Similar frame rates as the main and sub-streams, offering flexibility.
• Triple-Stream: Yes, supports multiple video streams for efficient bandwidth management.

Network & Connectivity

• Ethernet Port: 1 x RJ45 10M/100M self-adaptive Ethernet port for reliable wired network connections.
• Wi-Fi: Not supported.
• Protocols: Supports a variety of network protocols, including TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS.

Security Features

• Password Protection: Yes, with advanced password security protocols for better protection.
• Watermark: Not specified.
• Motion Detection: Yes, for triggering alerts based on movement.
• Human Detection: Not mentioned.
• Face Detection: Not mentioned.
• Other Security: Features include HTTPS encryption, IP address filtering, TLS 1.2, and security audit log.

Storage

• Card Slot: Not mentioned.
• Storage Type: Not specified.
• Storage Supported: Not applicable, with no local storage details available.

Physical Build & Power

• Form Factor: Dome style, ideal for discreet and reliable indoor monitoring.
• Color: White finish, making it blend seamlessly in various environments.
• Dimensions: 110 x 101 mm.
• Weight: 350 gm.
• Power Supply: 12 VDC or PoE (IEEE 802.3af, Type 1 Class 3) for flexible power options.
• Approx. Power Consumption: Max. 4.5W, ensuring low power consumption.

Operating Conditions

• Operating Temperature: -30°C to 65°C, ensuring functionality across a wide temperature range.
• Operating Humidity: Up to 95% (non-condensing), suitable for various indoor environments.

Warranty

• 1 Year Warranty (without adapter).
