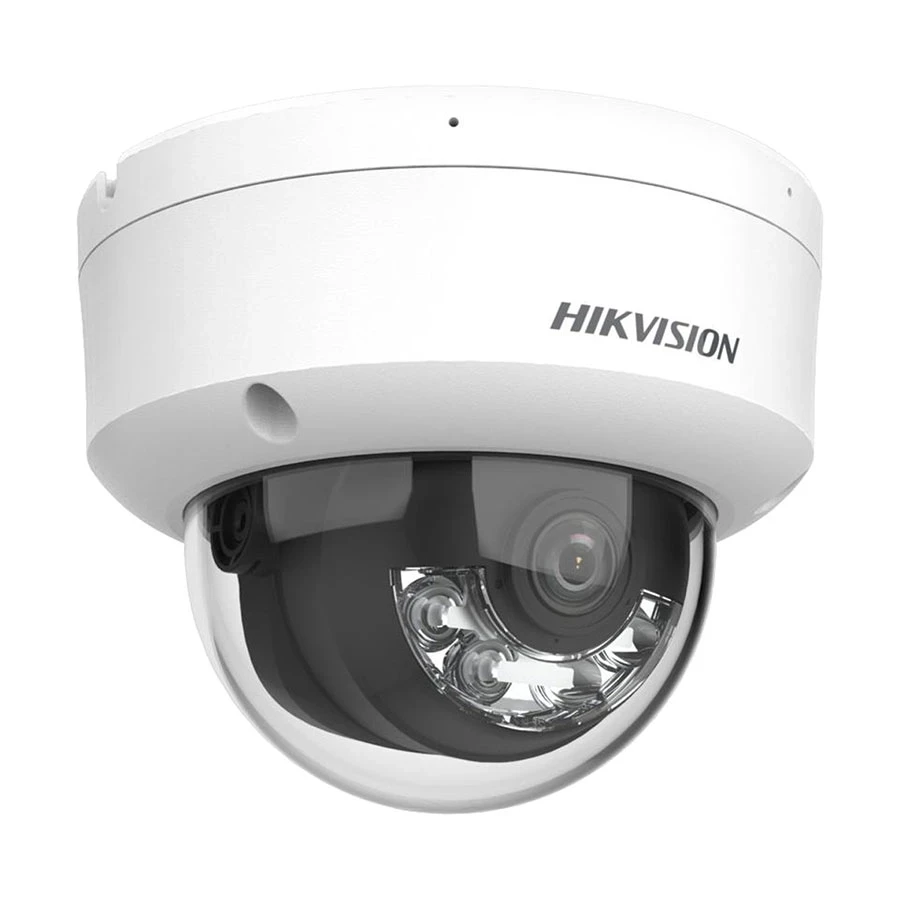

Hikvision DS-2CD1143G2-LIU (2.8mm) (4.0MP) Smart Hybrid Light Fixed Dome IP Camera
Key Specification
‣ Usage - Outdoor
‣ Form-Factor - Dome
‣ Mega Pixels (MP) - 4.0
‣ Night Vision Mode - Black
and White
‣ Working Distance – 63
meter
Product Specification
|
Brand |
Hikvision |
|
Model |
Hikvision
DS-2CD1143G2-LIU |
|
Usage |
Outdoor |
|
Type |
IP
Camera |
|
Camera |
Number of Camera: 1 Camera Type: Fixed Mega Pixels (MP): 4.0 Max. Camera Resolution: 2560 x 1440 Secondary Camera Type: Not Applicable Secondary Camera Mega Pixel (MP): Not
Applicable Secondary Camera Max Resolution: Not
Applicable Sensor Type: 1/3 Inch Progressive Scan CMOS Resolution: 2560 x 1440 Shutter Speed: 1s to 1/100,000s Slow Shutter: Unmentioned Day & Night: IR cut filter Night Vision: Yes Night Vision Mode: Black and White S/N Ratio: >52 dB |
|
Lens |
Number
of Lens: Single Lens (Primary) Lens: 2.8mm Focal
Length: Unmentioned PTZ: No Zoom: Unmentioned Viewing
Angle: 98 Degree (H), 54 Degree (V), 114 Degree (D) |
|
Image |
Triple-Stream: Unmentioned Frame Rate - Unmentioned Noise Reduction: Yes Digital Noise Reduction (DNR): 3D DNR Wide Dynamic Range (WDR): 120 dB |
|
Network
& Connectivity |
Sim
Supported: No Sim
Network Type: Not Applicable Interface(s):
1 x RJ45 10M/100M self-adaptive Ethernet port Wi-Fi: No Wi-Fi
Details: No |
|
Security |
Security: Password protection, complicated
password, watermark, basic and digest authentication for HTTP, WSSE and
digest authentication for Open Network Video Interface, security audit log,
host authentication (MAC address) Password Protection: Yes Watermark: Yes Motion Detection: Yes Human Detection: Yes Face Detection: Unmentioned Lightning Protection: Unmentioned Surge Protection: Unmentioned Voltage Transient Protection: Unmentioned Simultaneous Live View: Up to 6 channels |
|
Technical
Data |
Video
Type: H.265+, H.265, H.264+, H.264, MJPEG Mic
& Speaker: Only Mic Audio
Communication: No Input
Trigger: Unmentioned Working
Distance: 63 meter Protocols:
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP,
SMTP |
|
Physical Attributes |
Form-Factor: Dome Card Slot: Unmentioned Storage Type: Unmentioned Storage Supported: Unmentioned Body Material: Metal/Plastic Color: White Dimensions: 121.4 x 97.7mm Weight (gm): 550 gm Relevant Accessories (Not Included): Unmentioned |
|
Power |
Power: 12
VDC +- 25%, 0.5 A, max. 6 W,5.5 mm coaxial power plug, reverse polarity
protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W Battery
Capacity: Not Applicable Battery
Backup: No Battery
Backup Time: Not Applicable Power
Supply: 12 VDC +- 25%, 0.5 A, 5.5 mm coaxial power plug, reverse polarity
protection, PoE: IEEE 802.3af, Class 3 Approx.
Power Consumption: 7.5W Operating
Temperature: -30 Degree C to 65 Degree C Operating
Humidity: Humidity 95% or less (non-condensing) |
|
Warranty |
1 Year |
|
* Product may vary with
different Kit or Version |
|
Product Details
Hikvision
DS-2CD1143G2-LIU IP Camera
The Hikvision DS-2CD1143G2-LIU
is a high-performance outdoor IP camera designed for secure surveillance
with 4.0MP resolution and a maximum resolution of 2560 x 1440.
With its advanced sensor technology, this camera provides clear,
detailed images for various security applications.
Camera
Performance
- Sensor:
1/3 Inch Progressive Scan CMOS
- Resolution:
2560 x 1440 for high-definition video quality.
- Shutter Speed:
1s to 1/100,000s, allowing flexibility in various lighting
conditions.
- IR Cut Filter:
Ensures accurate day-and-night image quality.
- Night Vision:
Black and White mode to provide clear surveillance in low-light
environments.
- S/N Ratio:
>52 dB for high-quality, noise-free images.
Lens
& Viewing Capabilities
- Lens:
2.8mm fixed lens.
- Focal Length:
Not explicitly mentioned.
- Viewing Angles:
- Horizontal FOV:
98°
- Vertical FOV:
54°
- Diagonal FOV:
114°
Quality
- Noise Reduction:
Equipped with 3D Digital Noise Reduction (DNR) for clear images in
various lighting.
- Wide Dynamic Range (WDR): 120 dB to handle high-contrast lighting
situations.
- Triple-Stream:
Not mentioned.
- Frame Rate:
Not explicitly stated.
Network
& Connectivity
- Ethernet Port:
1 x RJ45 10M/100M self-adaptive Ethernet port for stable, wired
connections.
- Wi-Fi:
Not supported.
- Protocols:
Supports TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6,
UDP, QoS, FTP, SMTP, ensuring compatibility with a wide range of
network systems.
Security
Features
- Password Protection:
Strong password protocols to ensure secure access.
- Watermark:
Supports watermarking for video integrity.
- Motion Detection:
Automatically detects movement and sends alerts.
- Human Detection:
Identifies human figures for more targeted alerts.
- Face Detection:
Not mentioned.
Storage
- Card Slot:
Not explicitly mentioned.
- Storage Type:
Not specified.
Physical
Build & Power
- Form Factor:
Dome design for easy ceiling or wall mounting.
- Body Material:
Metal/Plastic for durability.
- Color:
White.
- Dimensions:
121.4 x 97.7 mm.
- Weight:
550 gm.
- Power Consumption:
7.5W maximum, powered via 12V DC or PoE (802.3af).
Operating
Conditions
- Operating Temperature:
-30°C to 65°C, designed to function in extreme weather conditions.
- Operating Humidity:
Up to 95% (non-condensing) for use in high-humidity environments.
Warranty
- Comes with a 1-year warranty.
