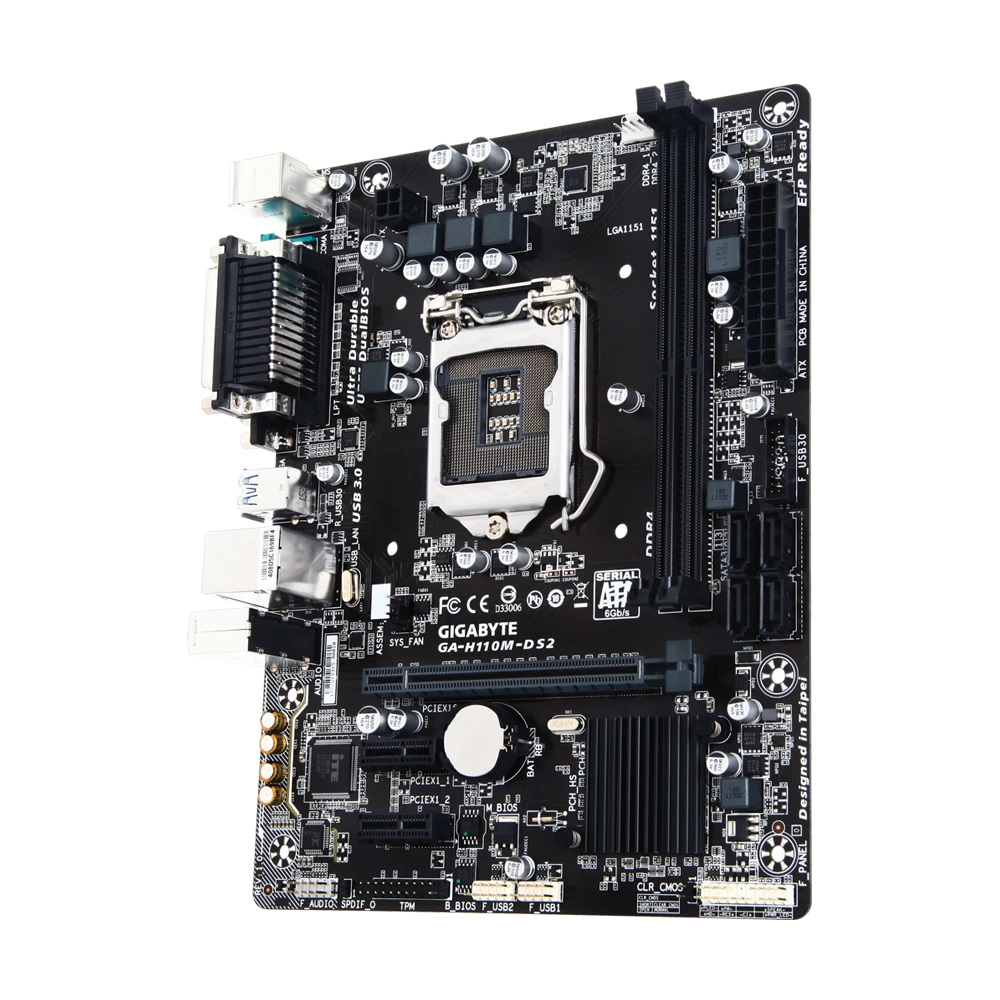

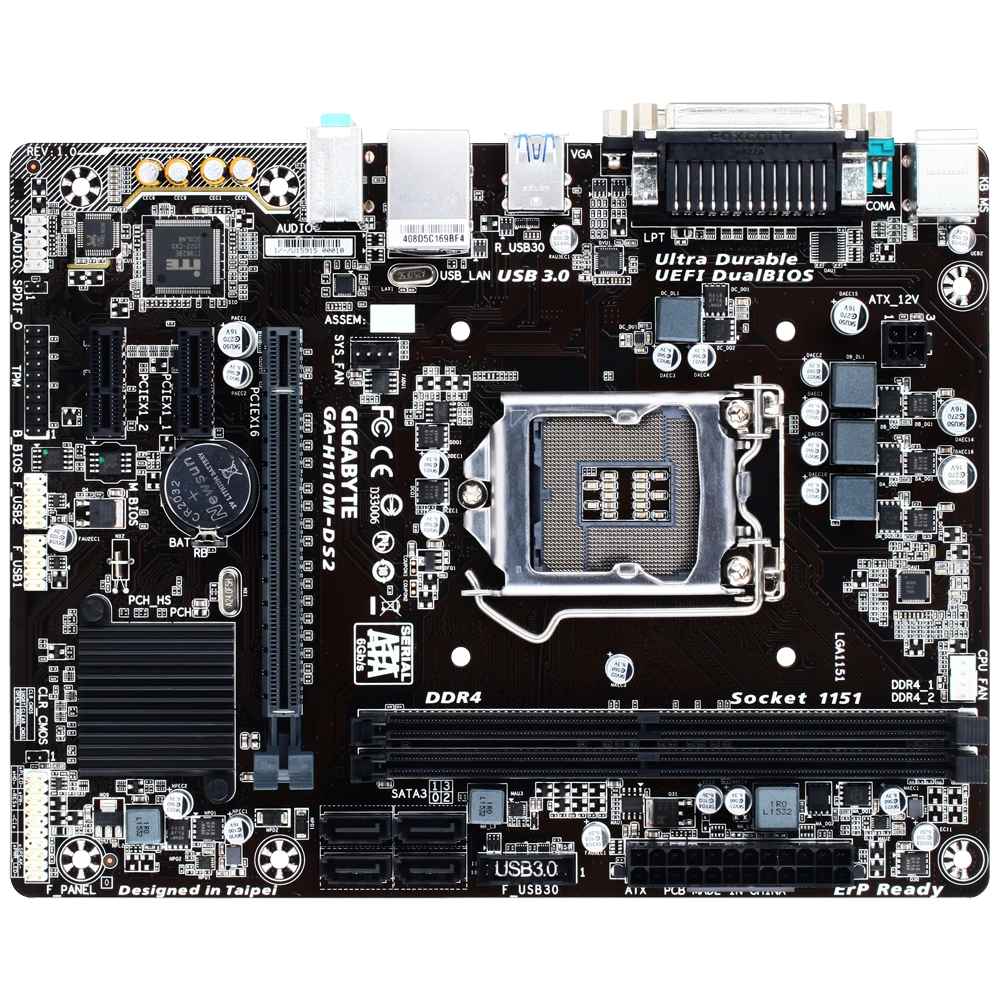

Gigabyte GA-H110M-DS2 is a reliable and compact Micro ATX motherboard designed to meet the needs of everyday computing, offering exceptional performance and versatility at an affordable price point. Built on the Intel® H110 Express Chipset, this motherboard supports 6th and 7th Generation Intel® Core™, Pentium®, and Celeron® processors in the LGA1151 socket, making it an ideal choice for home or office use.

Processor and Memory Support

The GA-H110M-DS2 is engineered to handle a range of processors, from high-performance Intel® Core™ i7 to energy-efficient Celeron® models. Its dual DDR4 DIMM slots support up to 32GB of system memory, ensuring smooth multitasking and efficient performance for productivity applications. With support for DDR4 2400/2133 MHz memory modules, users can enjoy faster data transfer speeds. The motherboard is compatible with both ECC and non-ECC UDIMM modules (operating in non-ECC mode) and supports Extreme Memory Profile (XMP) for customized performance tuning.

Storage and Connectivity

This motherboard offers 4 SATA 6Gb/s connectors, providing ample storage options for solid-state drives (SSDs) and traditional hard drives (HDDs). While it lacks an M.2 slot, the fast SATA connectivity ensures reliable performance for storage-intensive tasks such as data transfer and application loading.

Graphics and Audio

The integrated Intel® HD Graphics processor supports a D-Sub port, delivering a maximum resolution of 1920x1200@60Hz for clear and crisp visuals. Whether for basic multimedia use or office applications, this motherboard delivers reliable graphics performance. It also features Realtek® Audio CODEC, providing high-definition sound with support for 2/4/5.1/7.1-channel configurations. Additionally, the inclusion of S/PDIF Out ensures compatibility with advanced audio systems.

Expansion and Networking

The GA-H110M-DS2 includes 1 PCIe x16 slot (PCIe 3.0) for adding dedicated graphics cards and 2 PCIe x1 slots (PCIe 2.0) for additional peripherals. The integrated Realtek® GbE LAN chip ensures fast and stable network connectivity, making it suitable for both work and entertainment.

User-Friendly Features

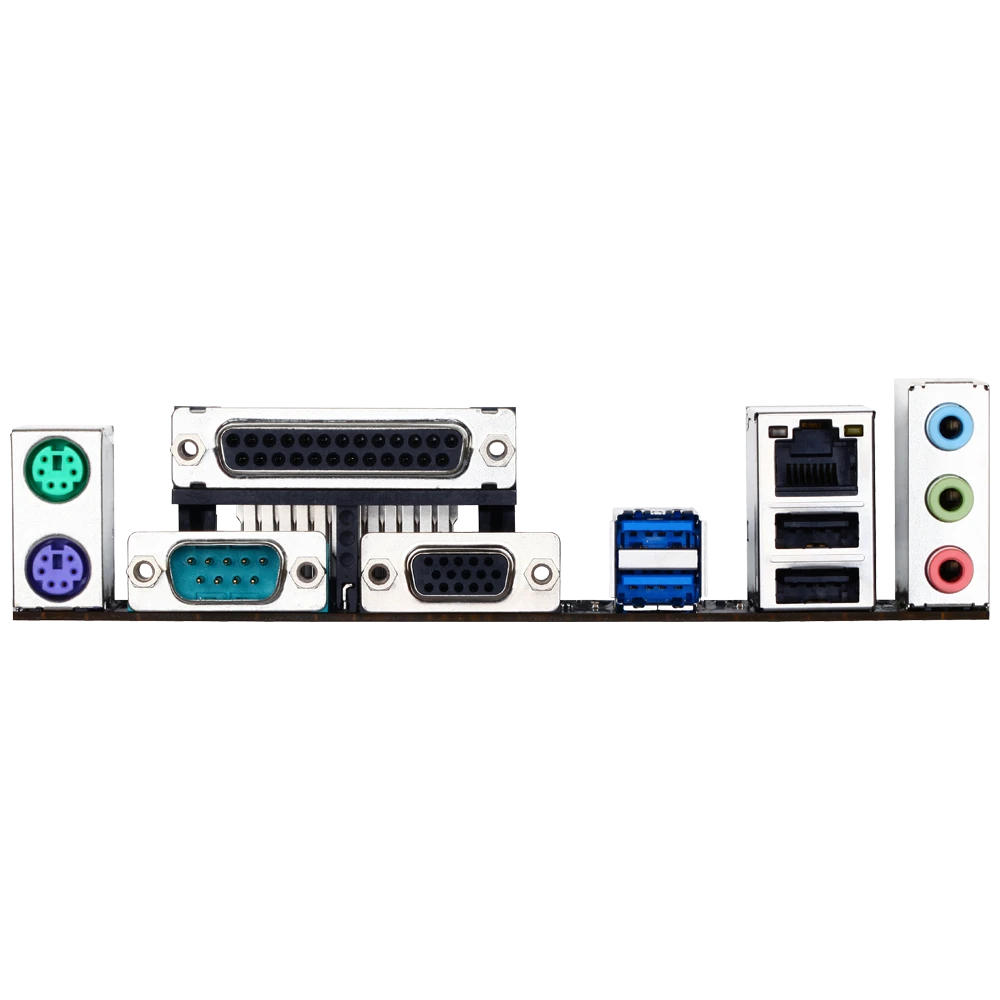

Designed with ease of use in mind, this motherboard features DualBIOS™ technology for enhanced system security and a range of software utilities such as APP Center and Q-Flash for easy BIOS management. Legacy ports, including PS/2, serial, and parallel ports, provide compatibility with older devices, while modern USB 3.0 and 2.0 ports ensure seamless connectivity.

Compact and Dependable

With its Micro ATX form factor (22.6cm x 17.4cm), the GA-H110M-DS2 is perfect for compact PC builds. Backed by a 3-year warranty, it offers a dependable solution for versatile and efficient computing.
