Brand

Deepcool

Model

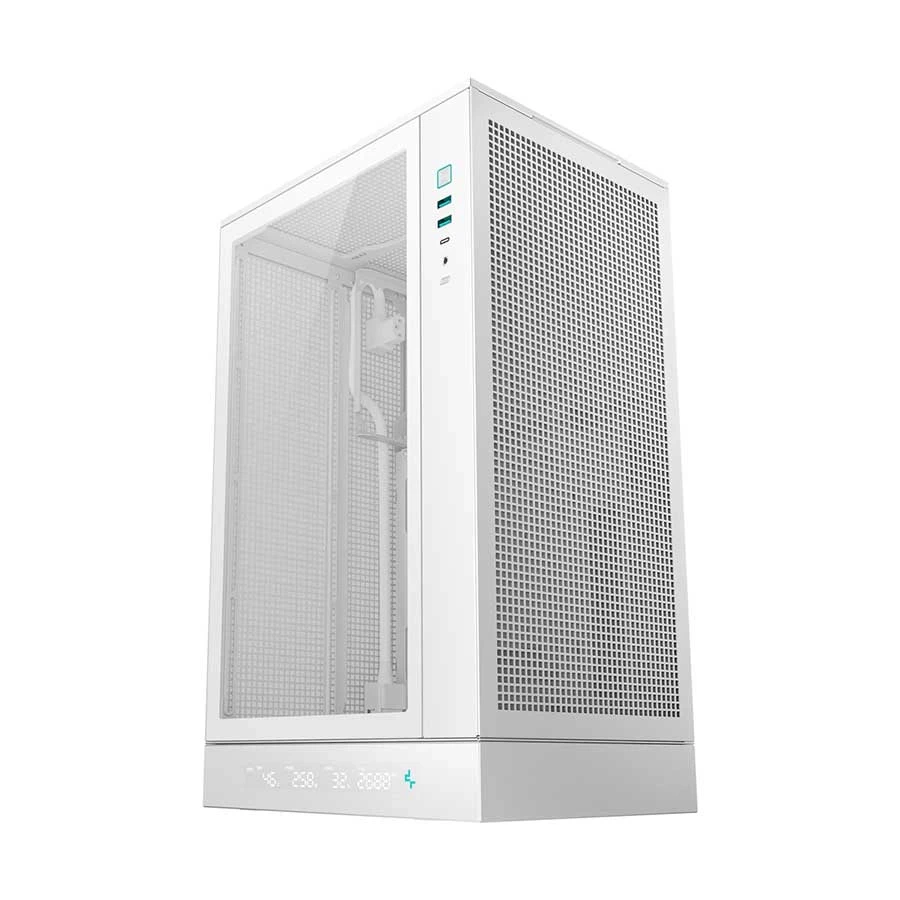

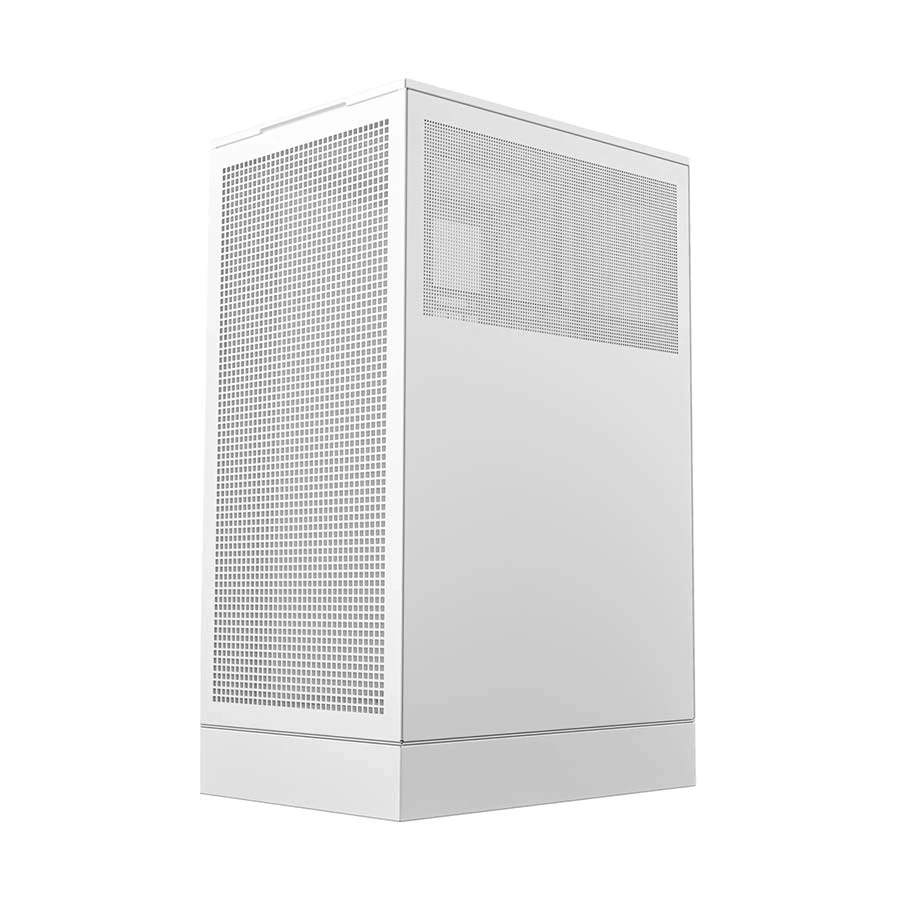

Deepcool CH270 Digital WH

Type

Mini Tower

Technical Data

Supported Motherboard Type: Mini-ITX, Micro-ATX

Supported LED Strip: No

Fan / Light Controller: No

Back-Connect Supported: Yes

Graphics-Card Length: 388/413mm (No Top fans)

Supported CPU Cooler: Air Cooler or Liquid Cooler

CPU Cooler Height: 174mm

PSU Length: 150mm

Cable Management Depth: 29.6mm

Interfaces & Slots

Front/Top USB port: 2 x USB 3.0, 1 x USB Type-C Gen 2

Front/Top Audio Port: 1 x Audio/Mic

5.25 Inch Drive Bay: No

3.5 Inch Drive Bay: 1

2.5 Inch Drive Bay: 1

1.8 Inch Drive Bay: No

Expansion Slots: 4

Optical Drive Bay: No

Memory Card Slot: No

Cooling System Data

Cooling Fan (Built-In): No

Additional Fan Slot: 6

Supported Fan Size: Top: 2 x 120mm, Side: 3 x 120mm/2 x 140mm, Bottom: 1 x 120mm

Lighting Fan: No

Radiator Support Front/Top/Rear: Side: 120/240/360mm, Bottom: 120mm

Radiator Support Max.: Up to 360mm

Power Data

Power Supply (Built-In): No

Power Supply Type: ATX PS2 (Not Included)

Power Supply Mounted: Top

Approx. Power Consumption: 5W

Physical Atributes

Transparent Side Window: Yes

Case Windowed: Tempered Glass

Buttons: Power

Number of Buttons: 1

Material: ABS+SPCC+Tempered Glass

Dust Cover: Front, Top, Bottom, Back

Color: White

Dimensions: 296 x 225 x 486mm

Weight (Kg): 5.8 Kg

Handle: No

Extra Data

Others

DIGITAL VERTICAL BASE, A digital display bar is integrated at the base of the case to monitor your system vitals in real time. The status mode can switch between CPU, GPU, and PSU. SMALL SIZE OUTSIDE, FULL SIZE INSIDE, UNCOMPROMISED VENTILATION, The wraparound mesh panels and up to six 120mm fan placements effectively ensure cool air flows through the compact system and takes heat away. The maximum thermal hardware can go up to a 360mm AIO liquid cooler on the side or a 174mm high tower heat sink on the CPU.

Specialty

The CH270 DIGITAL WH is an elevated mini-tower case with a small footprint to save up your desktop space. It is adapted to accommodate up to M-ATX motherboards and mainstream ATX components to smooth your building experience. GO MICRO The Micro Form Factor CH270 DIGITAL WH comes with a tempered glass side panel to give your modern internal gears a show as the perforated top and front panels can be decked out with PIXEL rubber bits. The case also meets the rising demands for rear connector motherboards with a wider clearance in the backplane.

Warranty

No warranty

* Product may vary with different Kit or Version
