Model

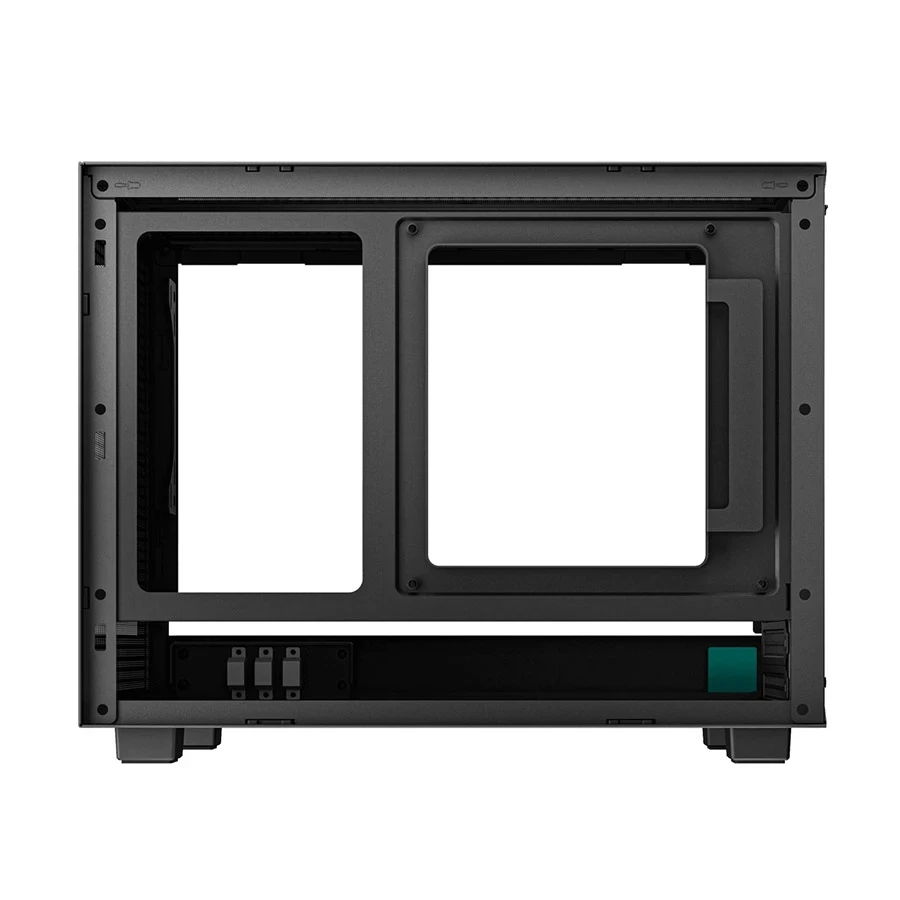

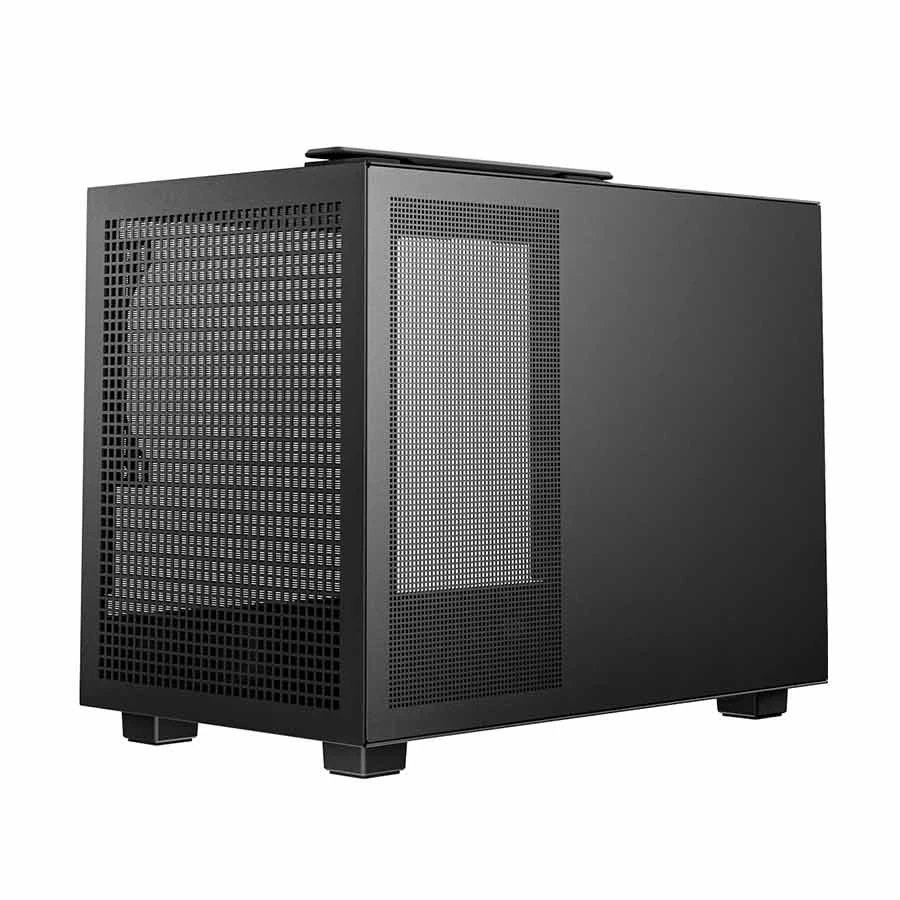

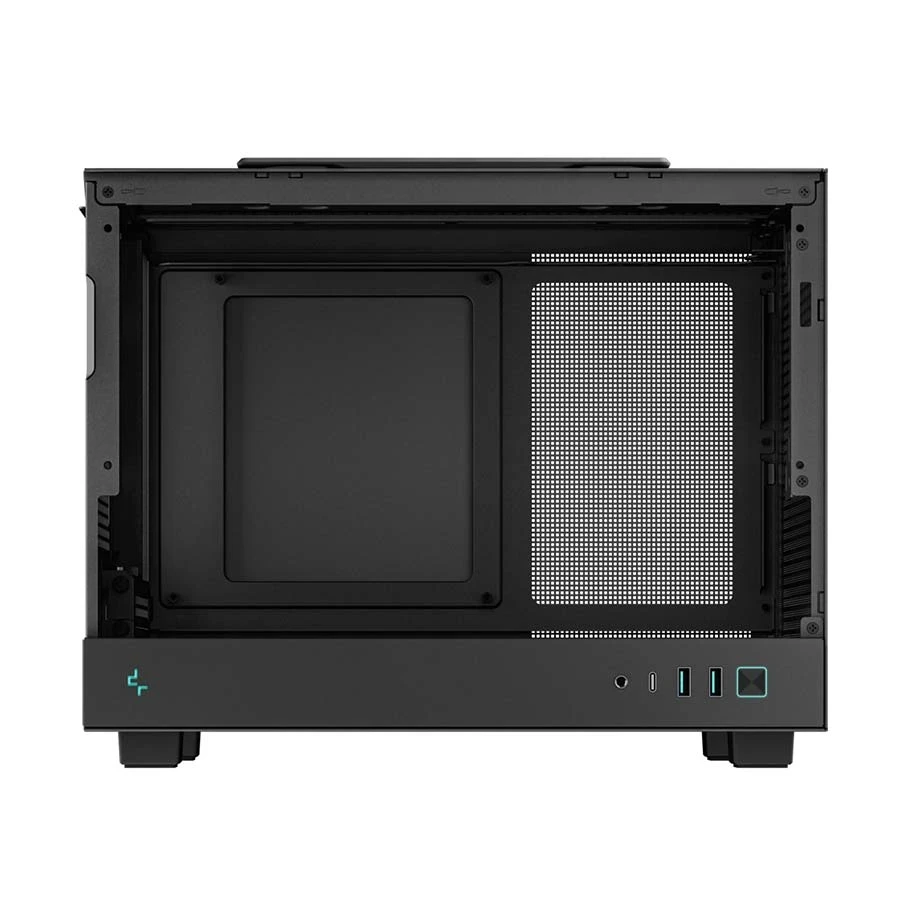

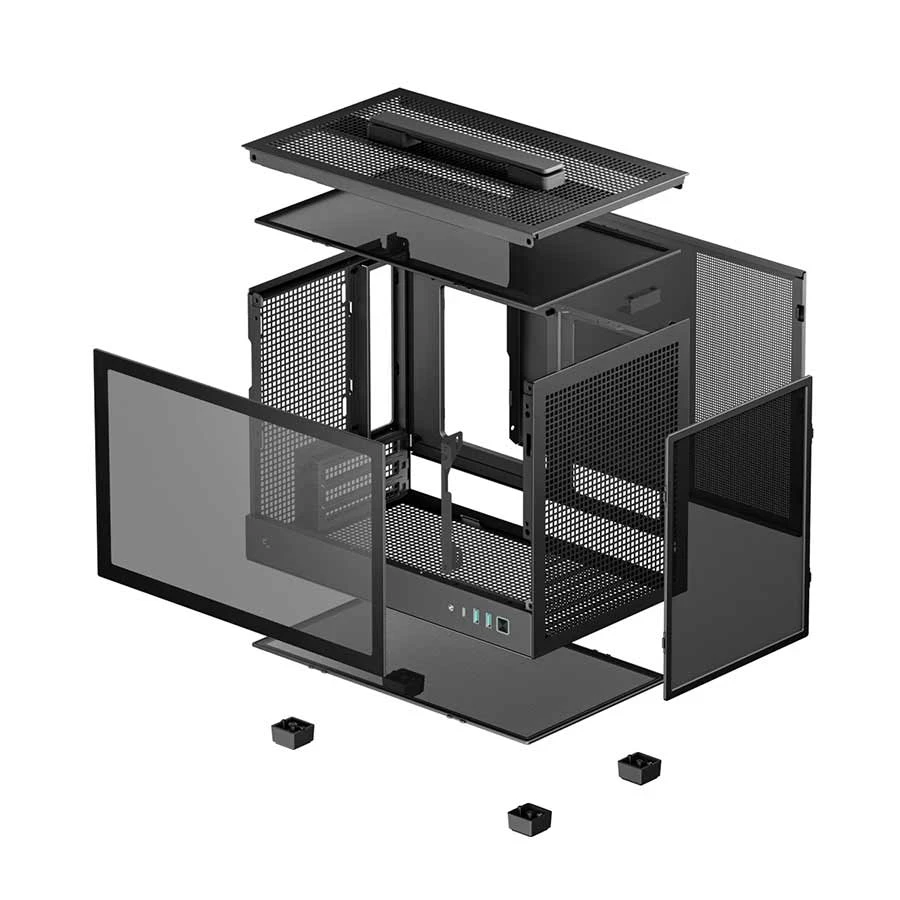

Deepcool CH160

Brand

Deepcool

Series

Gaming

Type

Mini Tower

Technical Data

Supported Motherboard Type: Mini-ItX, Macro-ITX

Supported LED Strip: Unmentioned

Fan / Light Controller: Unmentioned

Back-Connect Supported: No

Graphics-Card Length: 305mm (SFX/SFX), 230mm (ATX)

Supported CPU Cooler: Air Cooler

CPU Cooler Height: 172mm

PSU Length: unmentioned

Cable Management Depth: unmentioned

Interfaces & Slots

Front/Top USB port: 2 x USB 3.0, 1 x Type-C

Front/Top Audio Port: 1 x Audio

3.5 Inch Drive Bay: 1

2.5 Inch Drive Bay: 1

Expansion Slots: 3

Optical Drive Bay: No

Memory Card Slot: unmentioned

Cooling System Data

Cooling Fan (Built-In): No

Additional Fan Slot: 4

Pre-Installed Fan Size: unmentioned

Supported Fan Size: Front: 1 x 120mm, Top: 2 x 120mm, Rear: 1 x 120mm

Lighting Fan: No

Radiator Support Front/Top/Rear: No

Radiator Support Max: No

Power Data

Power Supply (Built-In): No

Power Supply Mounted: unmentioned

Approx. Power Consumption: 5W

Physical Atributes

Transparent Side Window: Yes

Case Windowed: Tempered Glass Window

Buttons: 1 x Power Button

Number of Buttons: 1

Dust Cover: unmentioned

Color: Black

Dimensions: 336 x 200 x 283.5mm

Weight (Kg): 3.3 Kg

Handle: Yes

Extra Data

Specialty - The CH160 is an ultra-portable mini-ITX case that has all the hallmarks of a high-airflow DeepCool case but in a small footprint. The internal layout provides a lot of flexibility for drives and PSU options.

Warranty

No warranty

* Product may vary with different Kit or Version
