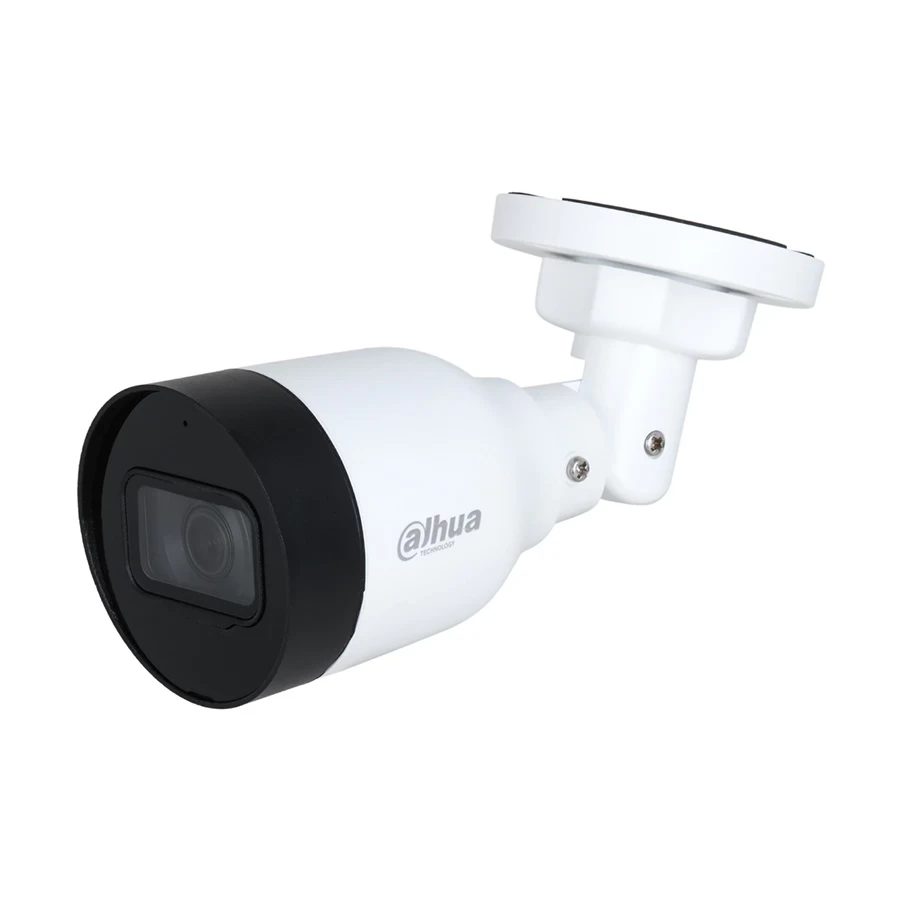

Dahua DH-IPC-HFW1230S1-A-S5 Outdoor IP Camera

The Dahua DH-IPC-HFW1230S1-A-S5 is a high-performance 2MP outdoor IP camera designed for advanced surveillance. With high-definition imaging, intelligent motion detection, and robust security features, it ensures reliable monitoring for homes, businesses, and commercial properties.

Camera Performance

This bullet-style IP camera is equipped with a 2.0MP progressive scan CMOS sensor, delivering clear and sharp images at a maximum resolution of 1920 × 1080 pixels. The auto/manual shutter speed ranges from 1/3 to 1/100000 seconds, providing flexibility in capturing fast-moving objects. Its Day & Night function (Auto ICR) automatically switches between color and black-and-white modes based on lighting conditions.

Night Vision & Image Processing

While this camera does not have night vision, it utilizes 3D Digital Noise Reduction (DNR) technology to enhance image clarity by minimizing noise and graininess. The DWDR (Digital Wide Dynamic Range) improves exposure balance in high-contrast lighting, ensuring better image quality in both bright and dark environments.

Lens & Viewing Capabilities

The Dahua DH-IPC-HFW1230S1-A-S5 comes with a fixed-focal 2.8mm or 3.6mm lens, offering a wide field of view for effective coverage. It provides the following viewing angles:

• 2.8mm lens: Horizontal 102°, Vertical 54°, Diagonal 120°
• 3.6mm lens: Horizontal 88°, Vertical 47°, Diagonal 104° While the camera supports PTZ functionality, it does not include zoom capabilities.

Network & Connectivity

This camera is wired-only, using an RJ-45 (10/100 Base-T) Ethernet port for stable connectivity. It does not support Wi-Fi or SIM connectivity, making it an ideal choice for secure, wired surveillance setups.

Security & Detection Features

Equipped with advanced security features, the camera supports:

• Video encryption
• Configuration encryption
• Security logs
• Account lockout
• X.509 certification
• Trusted boot/upgrade/execution

It includes motion detection, human detection, and face detection, enhancing automated security monitoring. Additionally, it features lightning protection, surge protection, and voltage transient protection, ensuring reliable operation even in harsh weather conditions.

Video & Audio Capabilities

With H.265, H.264, H.264B, and H.264H video compression, the camera optimizes bandwidth usage while maintaining high-quality video. The main stream supports resolutions up to 1920 × 1080 at 25/30 FPS, while the sub-stream operates at lower resolutions (704 × 576 or 704 × 480) at up to 30 FPS. The camera does not include a built-in microphone or speaker, meaning two-way audio communication is not available.

Physical Build & Storage

The Dahua DH-IPC-HFW1230S1-A-S5 features a compact bullet-style design made of metal and plastic with a white finish. The camera has the following dimensions:

• Dimensions: 162.6mm × 70mm × 70mm
• Weight: 220g

The camera supports FTP-based storage, but does not have an internal card slot.

Power & Operating Conditions

This camera can be powered via 12V DC or PoE (802.3af), offering flexibility in installation. It has a low power consumption:

• Basic Power Consumption: 1.2W (12V DC) or 2W (PoE)
• Max Power Consumption: 3.2W (12V DC) or 4.1W (PoE) under full load.

Designed for outdoor conditions, it can withstand temperatures ranging from -40°C to +60°C and operate in humidity levels of up to 95% (non-condensing).

Warranty & Additional Information

The Dahua DH-IPC-HFW1230S1-A-S5 comes with a 1-year warranty (adapter not included). Wall mounts and additional accessories must be purchased separately.
