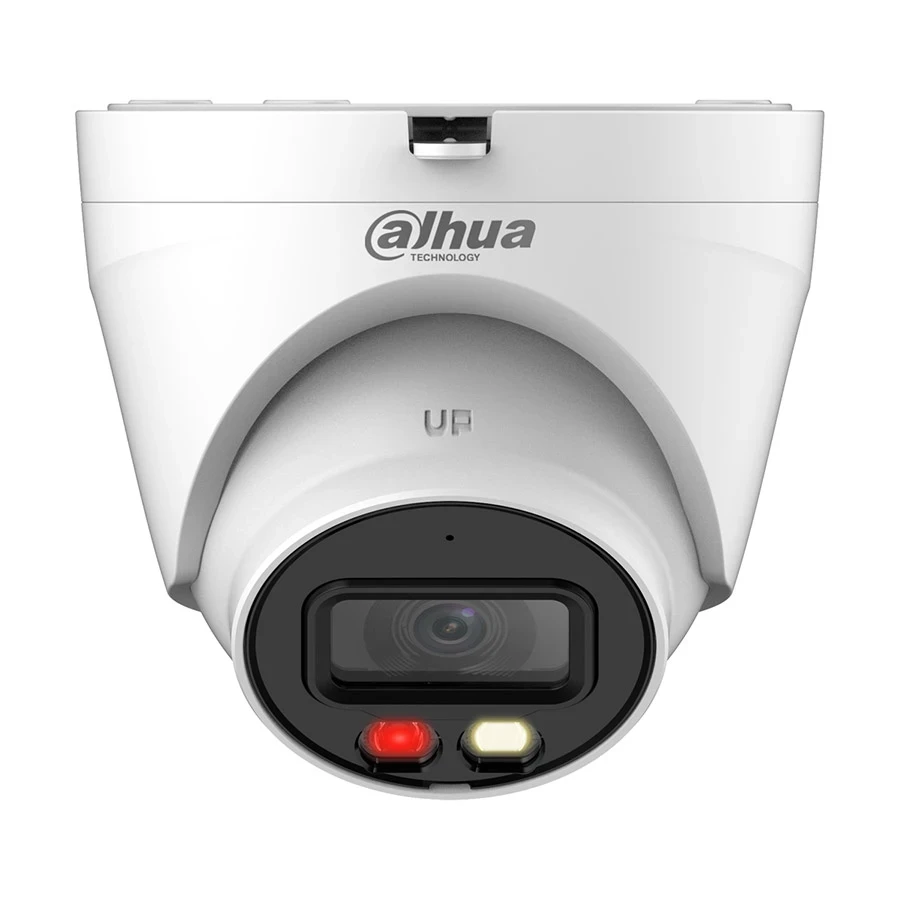

Dahua DH-IPC-HDW1439V-A-IL Outdoor IP Camera

The Dahua DH-IPC-HDW1439V-A-IL is a high-performance 4MP outdoor IP camera designed for reliable surveillance. With high-definition imaging, intelligent motion detection, and robust security features, it ensures dependable monitoring for homes, businesses, and commercial properties.

Camera Performance

This dome-style IP camera is equipped with a 4.0MP CMOS sensor, delivering sharp and detailed images at a maximum resolution of 2560 × 1440 pixels. The auto/manual shutter speed ranges from 1/3 to 1/100000 seconds, allowing for flexibility in capturing fast-moving subjects. Its Day & Night function (Auto ICR) automatically switches between color and black-and-white modes based on lighting conditions.

Night Vision & Image Processing

The Dahua DH-IPC-HDW1439V-A-IL camera features black-and-white night vision capabilities, ensuring clear visibility even in low-light conditions. 3D Digital Noise Reduction (DNR) technology reduces noise and graininess for better image clarity. With 120dB Wide Dynamic Range (WDR), the camera enhances exposure in high-contrast environments, providing superior image quality in both bright and dark scenes.

Lens & Viewing Capabilities

The camera comes with a 2.8mm fixed lens, offering a 94° horizontal, 52° vertical, and 111° diagonal viewing angle, making it ideal for wide-area surveillance. While it does not support PTZ functionality or zoom capabilities, its fixed lens provides excellent coverage for most surveillance needs.

Network & Connectivity

The Dahua DH-IPC-HDW1439V-A-IL camera is wired-only, using an RJ-45 (10/100 Base-T) Ethernet port for stable connectivity. It does not support Wi-Fi or SIM connectivity, making it suitable for wired security installations.

Security & Detection Features

This camera is equipped with advanced security features, including:

• Cybersecurity functions: Configuration encryption, trusted execution, security logs, HTTPS, X.509 certification, and video encryption.
• Motion detection: Configurable with 4 areas and a rectangular shape.
• Human detection: For better monitoring of human activity.

Additionally, it includes watermarking and account lockout for enhanced security, though face detection and other protections (such as lightning, surge, and voltage transient protection) are not specified.

Video & Audio Capabilities

The camera supports multiple video compression formats, including H.265, H.264, H.264H, H.264B, and MJPEG (only for the sub-stream). The main stream supports 2560 × 1440 resolution at up to 25/30 fps, while the sub-stream operates at resolutions of 704 × 576 or 704 × 480. The camera includes mic functionality but does not support two-way audio communication.

Physical Build & Storage

The Dahua DH-IPC-HDW1439V-A-IL features a dome-style design with a metal and plastic body in white. It has the following physical attributes:

• Dimensions: 100.9mm x 109.9mm
• Weight: 330g

The camera supports FTP-based storage and includes a card slot, though internal storage support is unmentioned.

Power & Operating Conditions

The camera can be powered via 12V DC or PoE (802.3af), offering installation flexibility. Its power consumption is as follows:

• Basic Power Consumption: 2W (12V DC) or 2.9W (PoE)
• Maximum Power Consumption: 4.6W (12V DC) or 5.7W (PoE) when H.265 + intelligence + WDR + illuminator intensity are activated.

The camera is designed to withstand extreme weather conditions, operating within a temperature range of -40°C to +60°C and humidity levels of up to 95% (non-condensing).

Warranty & Additional Information

The Dahua DH-IPC-HDW1439V-A-IL comes with a 1-year warranty (adapter not included). Additional accessories and mounting options must be purchased separately.
