Brand

Corsair

Model

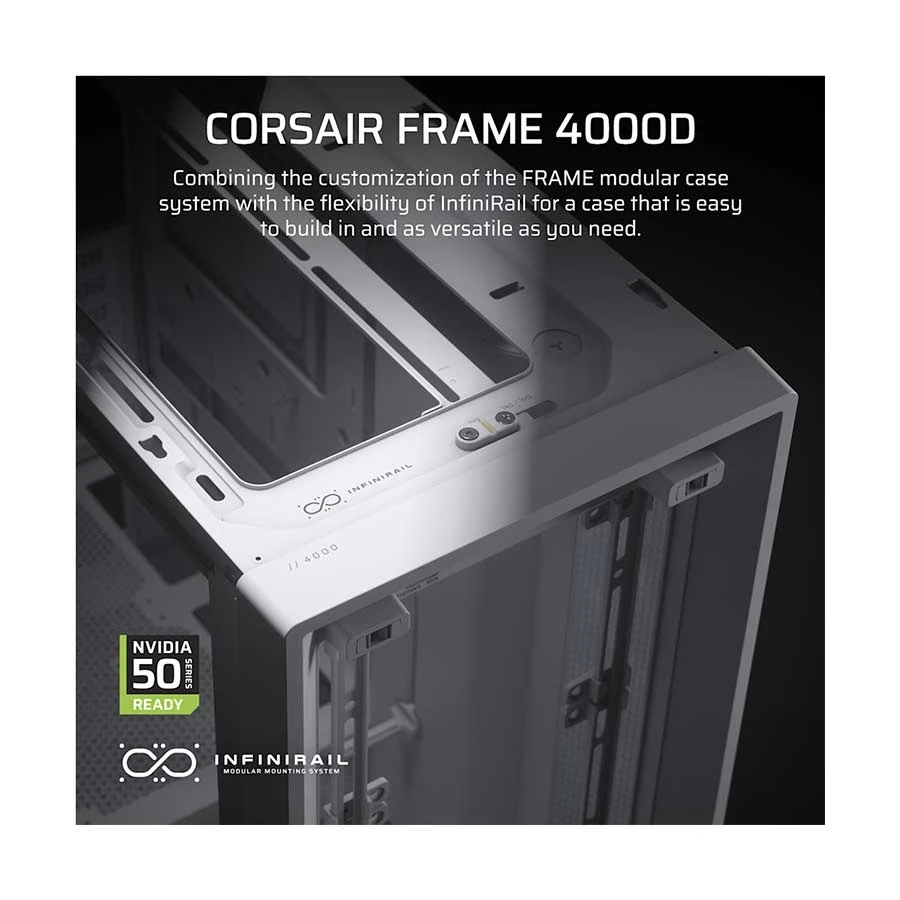

Corsair Frame 4000D Modular

Series

Gaming

Type

Mid Tower

Technical Data

Supported Motherboard Type: Mini-ITX, Micro-ATX, ATX, E-ATX

Supported LED Strip: No

Fan / Light Controller: No

Back-Connect Supported: Yes

Graphics-Card Length: 430mm

Supported CPU Cooler: Air Cooler or Liquid Cooler

CPU Cooler Height: 170mm

PSU Length: 220mm

Cable Management Depth: 37mm

Interfaces & Slots

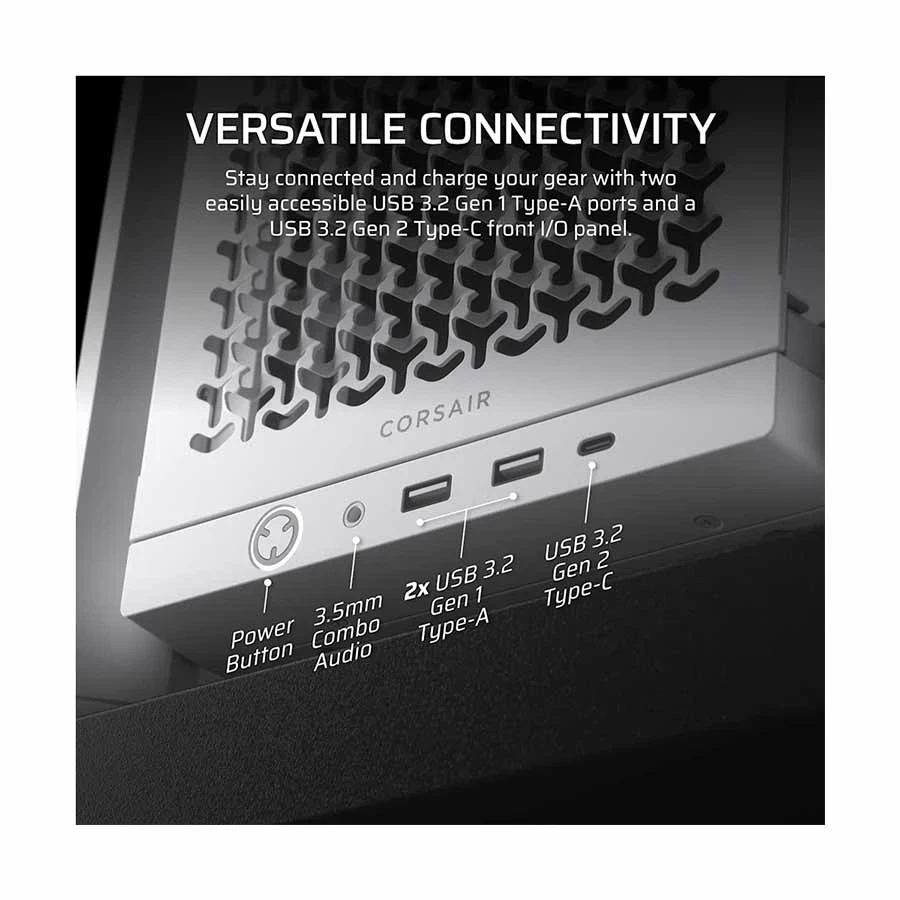

Front/Top USB port: 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 1 Type-A

Front/Top Audio Port: 1 x Audio in/out

3.5 Inch Drive Bay: 2

2.5 Inch Drive Bay: 4

Expansion Slots: 7

Optical Drive Bay: No

Memory Card Slot: No

Cooling System Data

Cooling Fan (Built-In): No

Additional Fan Slot: 12

Supported Fan Size: Top: 3x 120mm, 2x 140mm, Front: 3x 120mm, 2x 140mm, 2x 200mm, Bottom: 2x 120mm, Side: 3x 120mm, 2x 140mm, Rear: 1x 120mm, 1x 140mm

Lighting Fan: No

Radiator Support Front/Top/Rear: Top: 360mm, 280mm, 240mm, Front: 360mm, 280mm, 240mm, Side: 360mm, 280mm, 240mm, Rear: 140mm, 120mm

Radiator Support Max.: Up to 360mm

Power Data

Power Supply (Built-In): No

Power Supply Type: ATX (Not Included)

Power Supply Mounted: Bottom

Approx. Power Consumption: 5W

Physical Atributes

Transparent Side Window: Yes

Case Windowed: Tempered Glass Side Window

Buttons: 1 x Power

Number of Buttons: 1

Material: Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic

Dust Cover: Top

Color: White

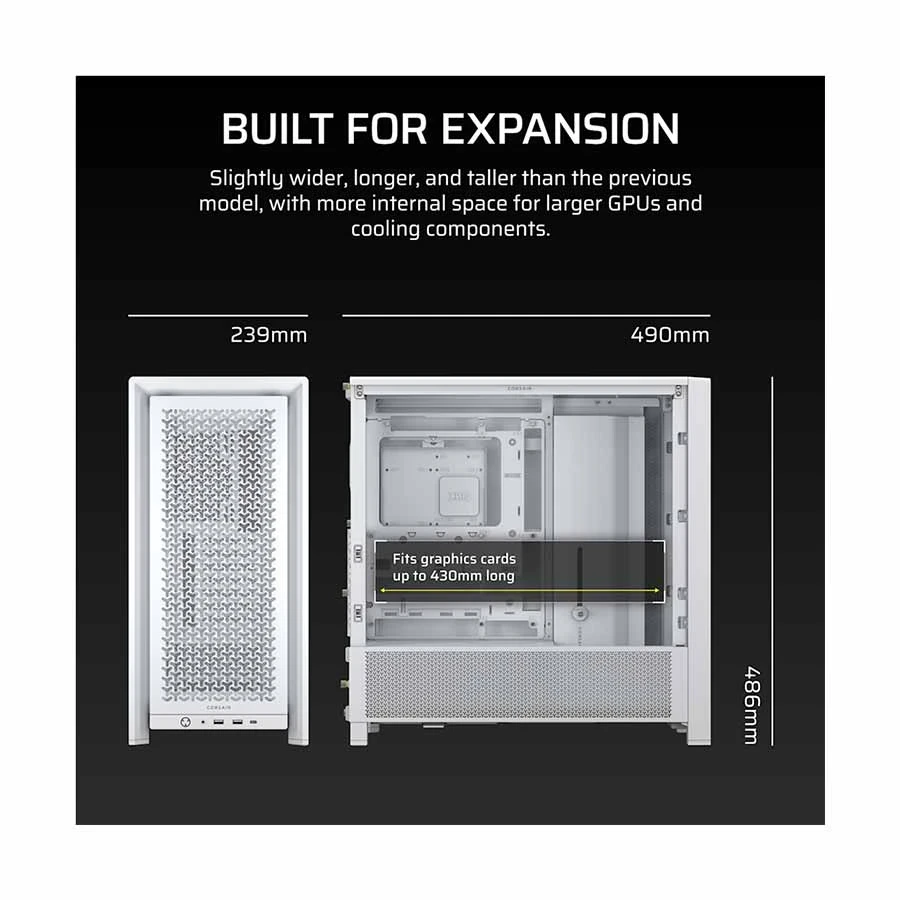

Dimensions: 490 x 486 x 239mm

Weight (Kg): 10.03kg

Handle: No

Extra Data

Others

Compatible Liquid Coolers: H60, H100, H115, H150, NAUTILUS, TITAN, Case Expansion Slots: 7 Horizontal or 3 Vertical.

Specialty

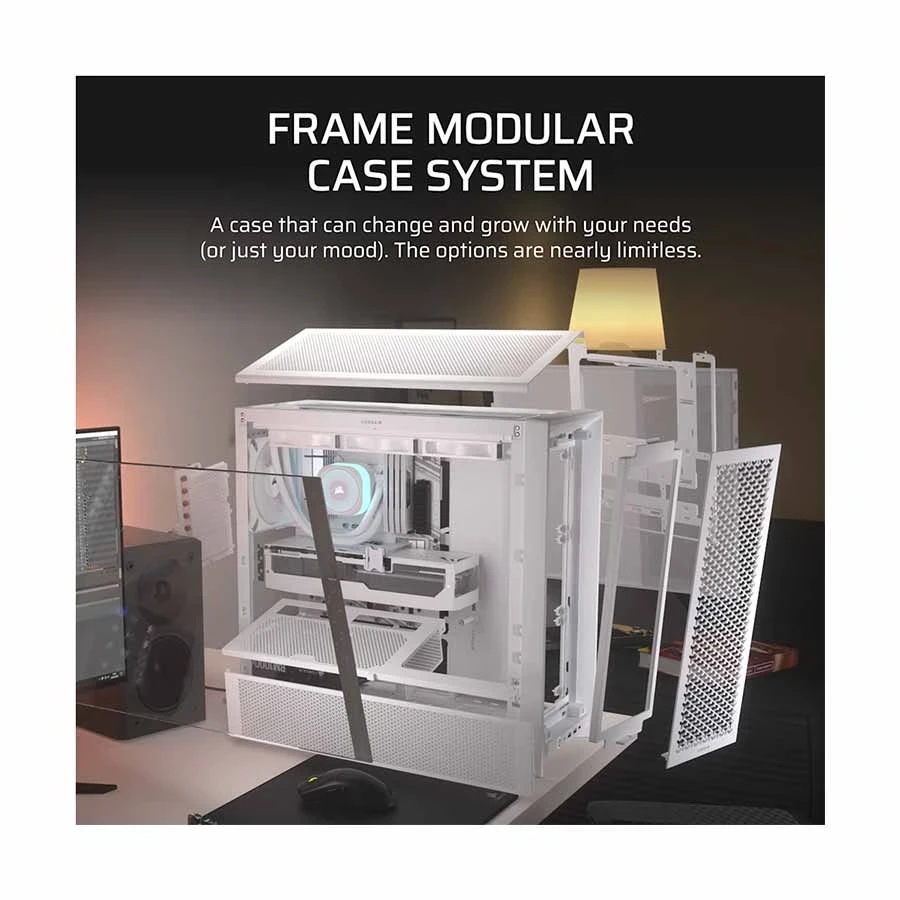

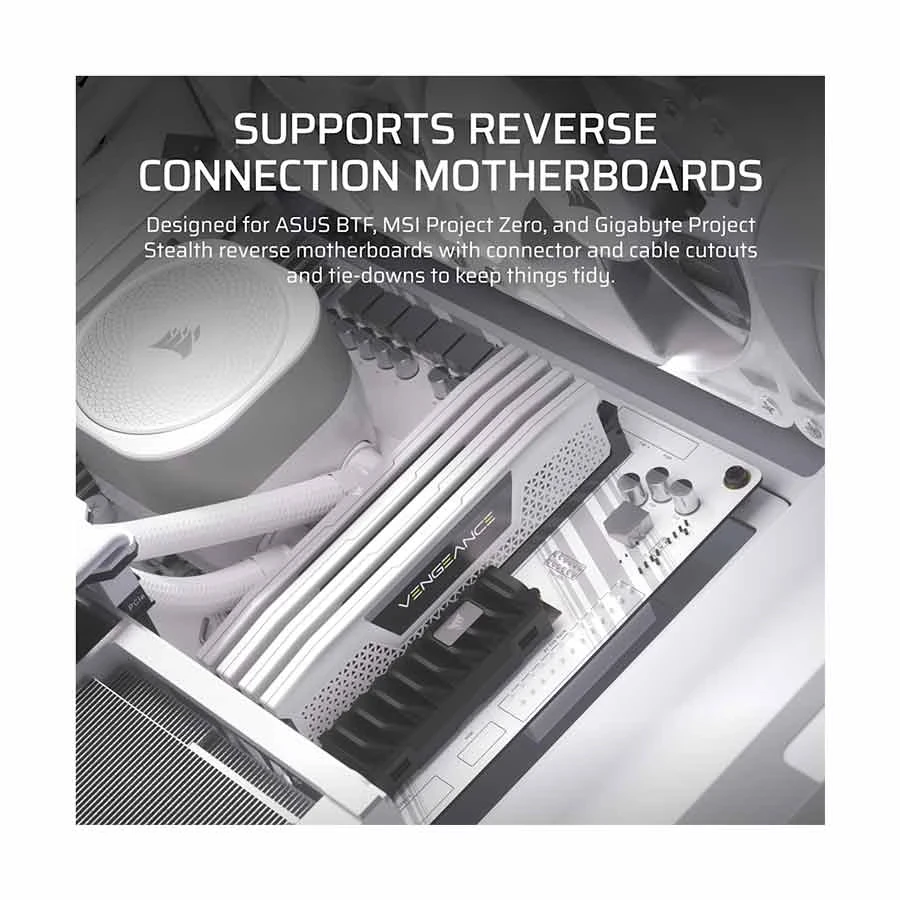

Fully-modular design for next-level customization, InfiniRail Fan Mounting System for easier building, Dual 360mm radiator support, GPU anti-sag stabilization arm, Compatible with reverse connector motherboards including ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH.

Warranty

No warranty

* Product may vary with different Kit or Version
