Model

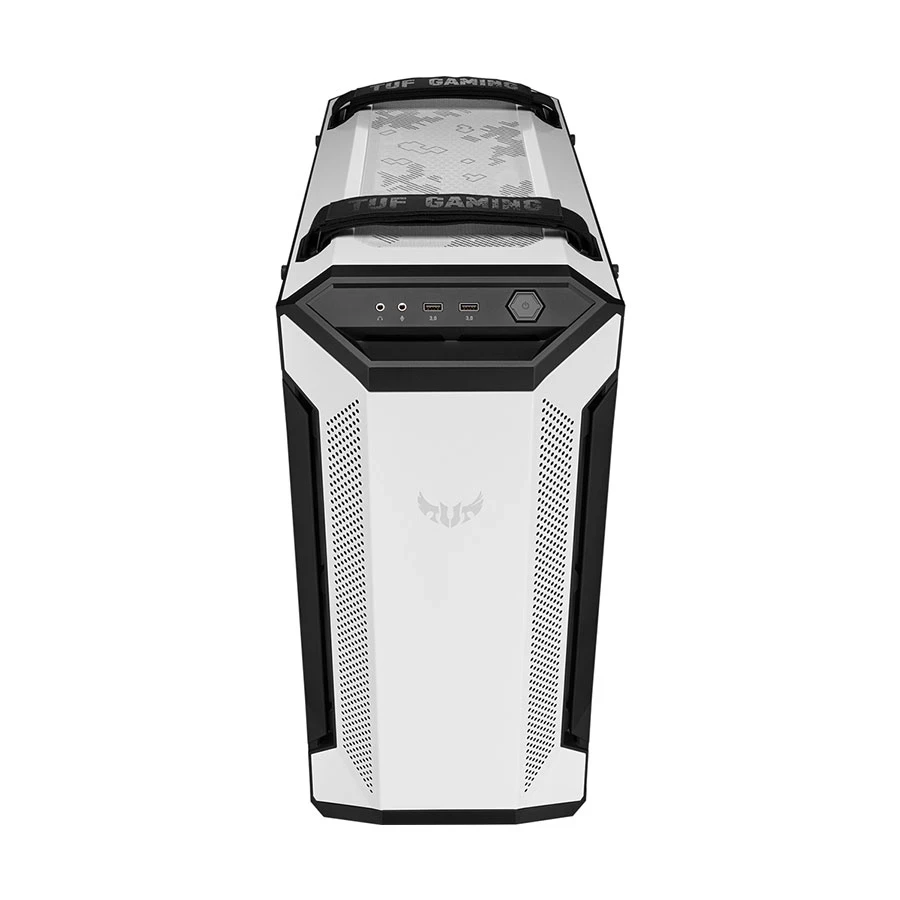

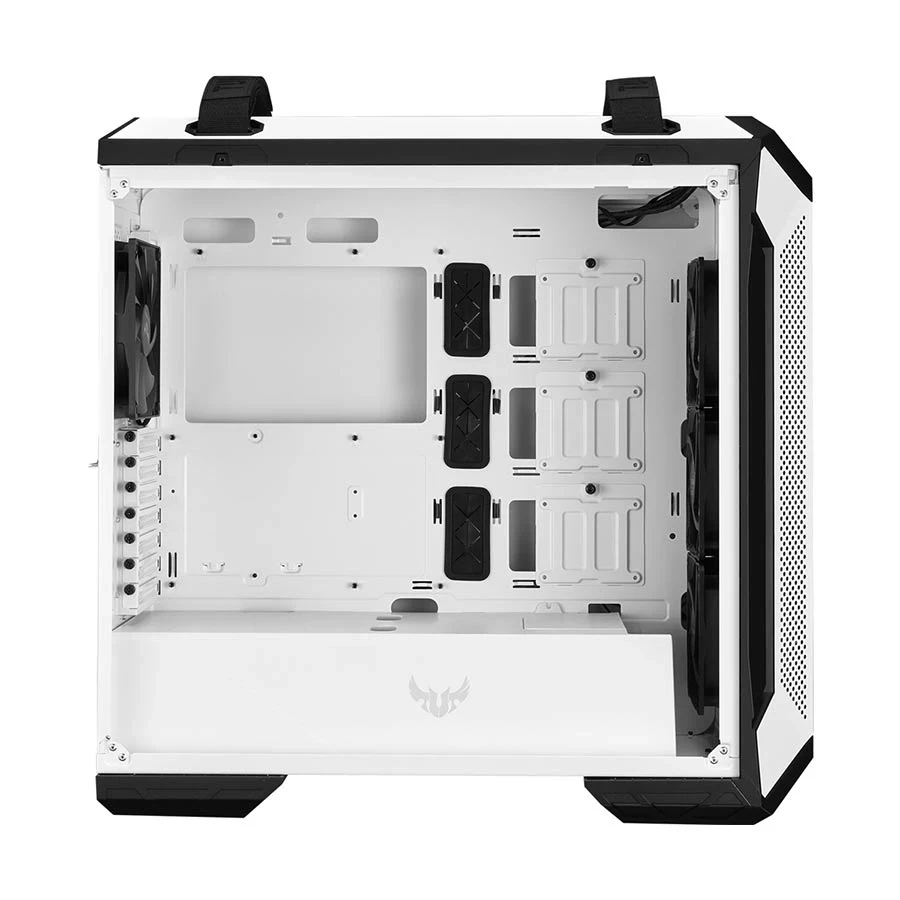

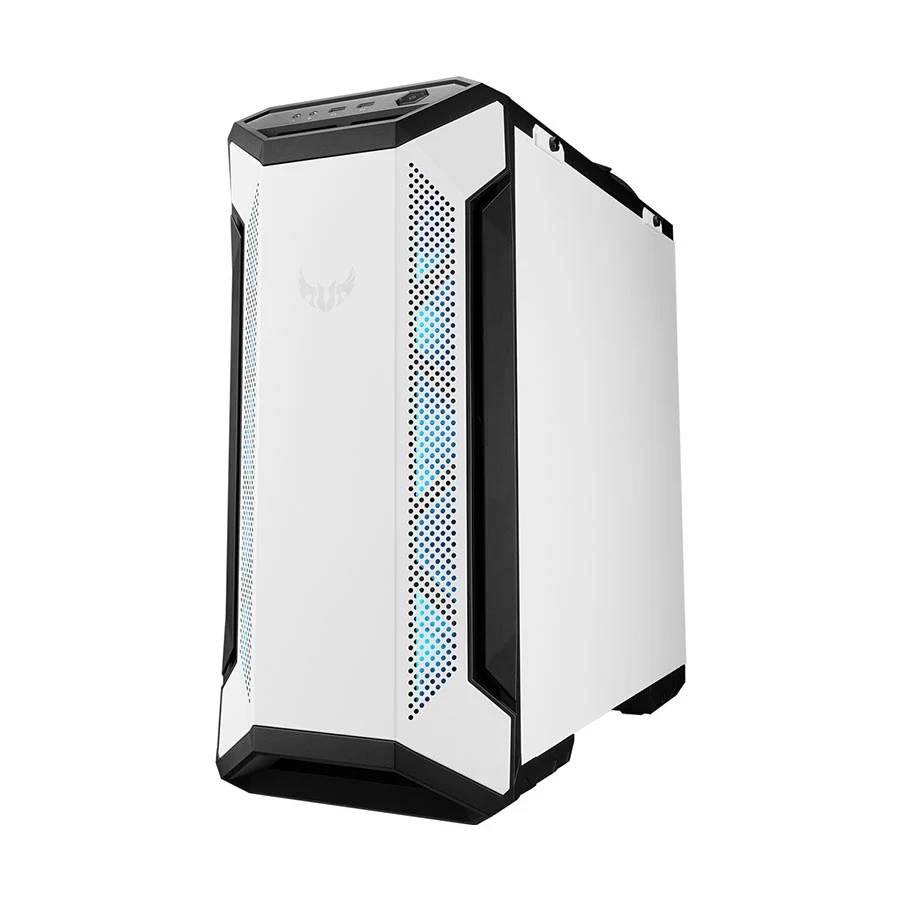

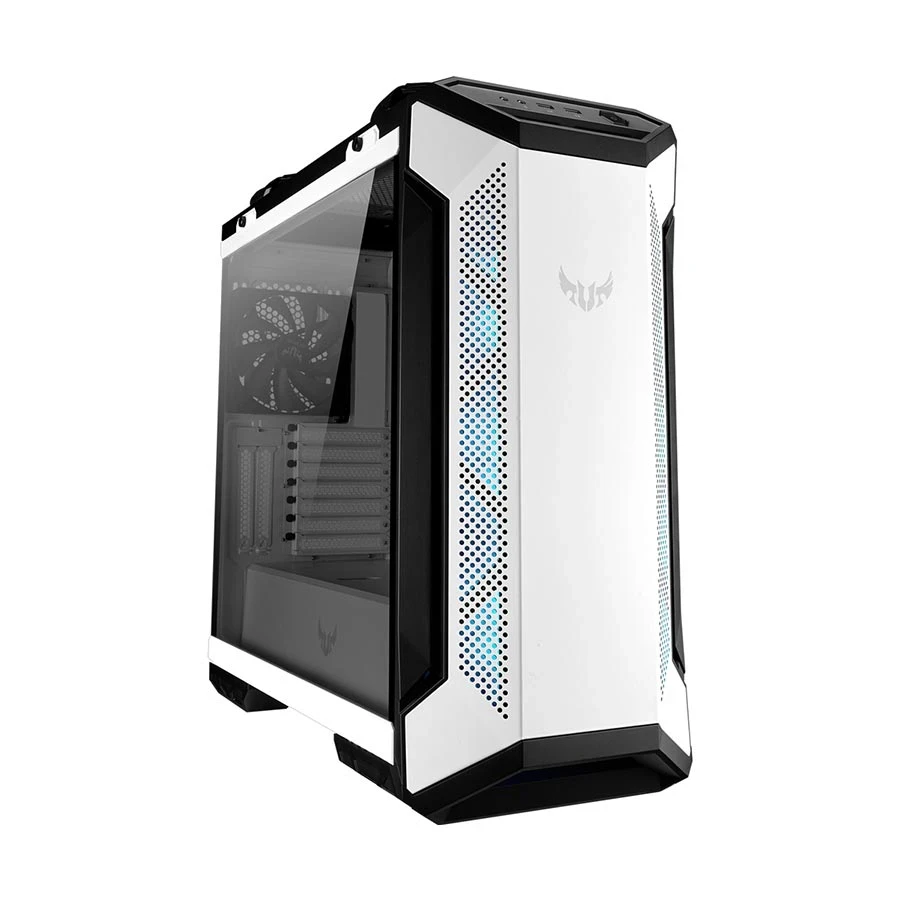

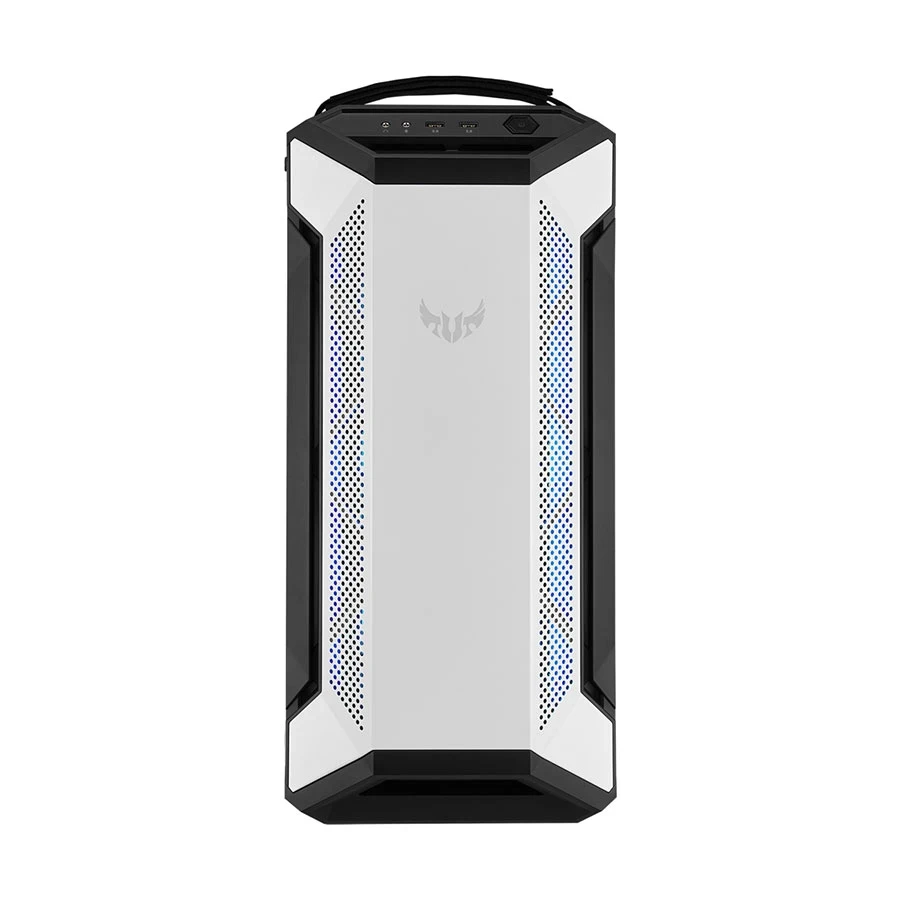

Asus TUF Gaming GT501

Brand

Asus

Series

Gaming

Type

Mid Tower

Technical Data

Supported Motherboard Type: E-ATX , ATX, Micro-ATX, Mini-ITX

Supported LED Strip: No

Fan / Light Controller: No

Back-Connect Supported: No

Graphics-Card Length: 420mm

Supported CPU Cooler: Air Cooler or Liquid Cooler

CPU Cooler Height: 180mm

PSU Length: 240mm

Cable Management Depth: 30 mm

Interfaces & Slots

Front/Top USB port: 2 x USB 3.1 Gen1

Front/Top Audio Port: 1 x Headphone, 1 x Microphone

3.5 Inch Drive Bay: 4

2.5 Inch Drive Bay: 3

Expansion Slots: 7+2

Optical Drive Bay: No

Memory Card Slot: No

Cooling System Data

Cooling Fan (Built-In): 4

Additional Fan Slot: 3

Pre-Installed Fan Size: Front: 3 x 120 mm RGB, Rear: 1 x 140 mm PWM

Supported Fan Size: 120mm/140mm

Lighting Fan: RGB

Radiator Support Front/Top/Rear: Front: 120/140/240/280/360mm, Top:120/140/240/280/360mm, Rear: 120/140mm

Radiator Support Max: Up to 360mm

Power Data

Power Supply (Built-In): No

Power Supply Mounted: Bottom

Approx. Power Consumption: 30W

Physical Atributes

Transparent Side Window: Yes

Case Windowed: Tempered Glass Side Window

Buttons: 1 x Power Button

Number of Buttons: 1

Dust Cover: Front, Top & Bottom

Color: White

Dimensions: 552 x 251 x 545mm

Weight (Kg): 10.5Kg

Handle: Yes

Extra Data

Others - TUF Gaming GT501 trio of 120mm Aura Sync RGB fans each contains 11 blades, and deliver high-static-pressure flow for targeted cooling. There`s also a high-airflow 140mm PWM fan for wider heat removal. It`s also easy to upgrade cooling when you need, with up to seven mounting points for the installation of additional fans. TUF Gaming GT501 makes PC DIY easier than ever. Integrated cable-management ensures neatness, while pre-installed physical supports for the motherboard eliminates additional costs and mean you`re ready to build from the get-go. It all adds up to design with you in mind for an unrivaled PC-building experience.

Specialty - Metal front panel with custom TUF Gaming spatter pattern, and 4mm-thick, smoked, tempered-glass side panel to showcase your build’s internals.

Warranty

No warranty

* Product may vary with different Kit or Version
