Model

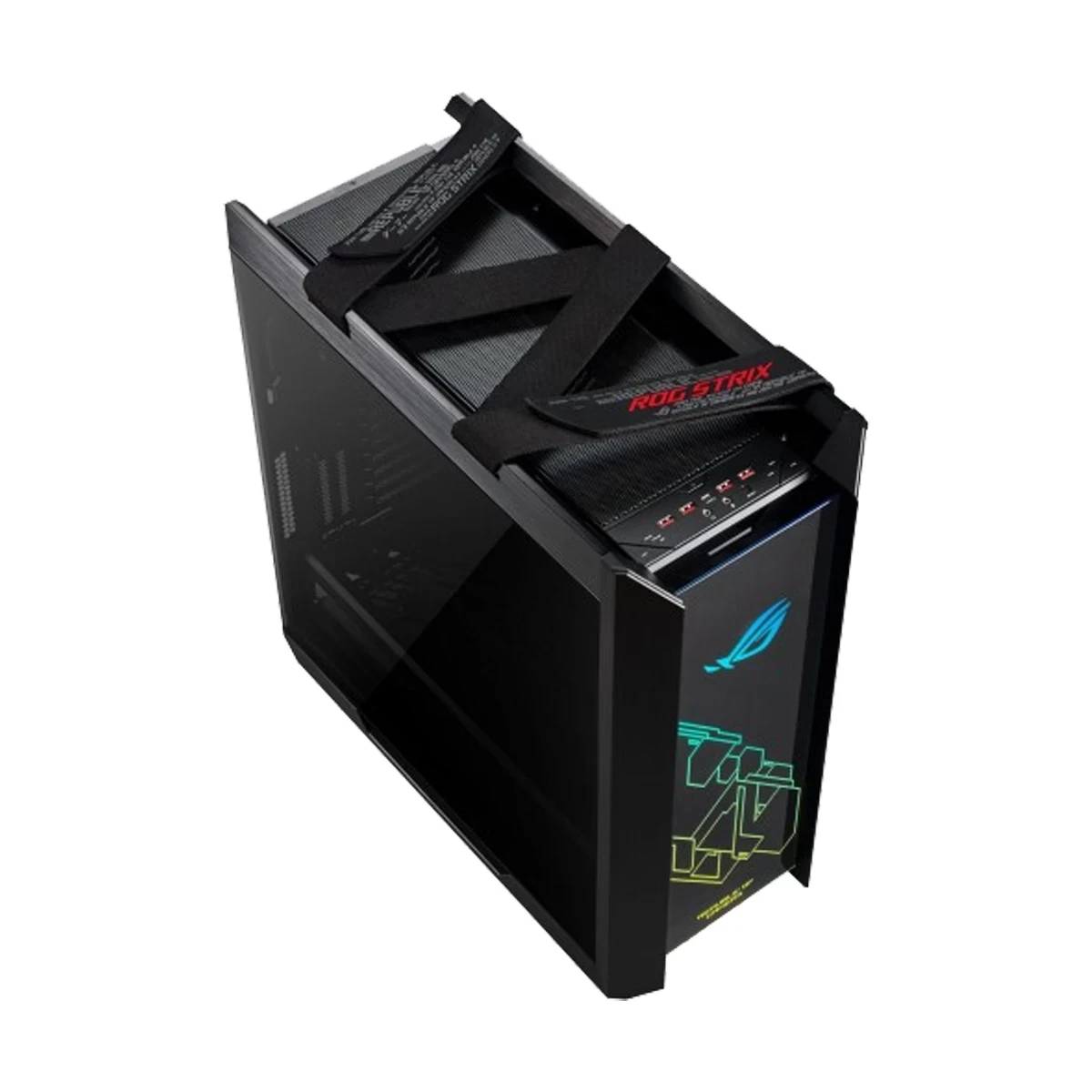

Asus ROG Strix Helios GX601

Brand

Asus

Series

Gaming

Type

Mid Tower

Technical Data

Supported Motherboard Type: ATX, E-ATX, Micro-ATX, Mini-ITX

Supported LED Strip: No

Fan / Light Controller: Yes

Back-Connect Supported: No

Graphics-Card Length: 450mm

Supported CPU Cooler: Air Cooler or Liquid Cooler

CPU Cooler Height: 190mm

PSU Length: 220mm

Cable Management Depth: 33mm

Interfaces & Slots

Front/Top USB port: 1 x USB Type-C (USB 3.1 / USB 3.2 Gen 2), 4 x USB Type-A (USB 3.1 / USB 3.2 Gen 1)

Front/Top Audio Port: 1 x 3.5 mm Input, 1 x 3.5 mm Output

3.5 Inch Drive Bay: 2

2.5 Inch Drive Bay: 2

Expansion Slots: 8

Optical Drive Bay: No

Memory Card Slot: No

Cooling System Data

Cooling Fan (Built-In): 4

Additional Fan Slot: 3

Pre-Installed Fan Size: 3 x 140mm (Front), 1 x 140mm (Rear)

Supported Fan Size: 3 x 120mm (Front), 1 x 120/140mm (Rear), 3 x 120 mm/2 x 40mm (Top)

Lighting Fan: No

Radiator Support Front/Top/Rear: 420mm (Front), 140mm (Rear), 360mm (Top)

Radiator Support Max: Up to 420mm

Power Data

Power Supply (Built-In): No

Power Supply Mounted: Bottom

Approx. Power Consumption: 25W

Physical Atributes

Transparent Side Window: Yes

Case Windowed: Tempered Glass

Buttons: 1 x Power, 1 x LED Control Button, 1 x Fan Control Button, 1 x Reset Button

Number of Buttons: 4

Dust Cover: Bottom, Front, Top

Color: Black

Dimensions: 250 x 591 x 565mm

Weight (Kg): 18 kg

Handle: No

Extra Data

Others - Supported PSU Size: ATX, PSU Mounting Location: Bottom, Fan Controller Included: Yes, Certifications: REACH, RoHS, as per Manufacturer, Built-In Lighting: Yes, Tool-Less Design: Thumbscrews.

Specialty - Aura Sync RGB Lighting: Featuring integrated addressable RGB LEDs in the front panel that can be customized using a dedicated control button or with Aura software, the ROG Strix Helios can use millions of colors and a range of effects. Translucent Rear Cover: A translucent rear cover conceals unsightly wiring and allows illumination from the optional ROG Aura Terminal, SSDs, or other devices with RGB lighting to shine through. Removable Mounting Brackets: Two removable brackets let you easily mount fans and radiators before installing the whole unit into the case, simplifying your building experience.

Warranty

No warranty

* Product may vary with different Kit or Version
