Model

Asus ProArt PA602

Brand

Asus

Series

ProArt

Type

Mid Tower

Technical Data

Supported Motherboard Type: EATX, ATX, Micro-ATX, Mini-ITX, DTX, Mini-DTX

Supported LED Strip: No

Fan / Light Controller: Yes

Back-Connect Supported: No

Graphics-Card Length: 450mm

Supported CPU Cooler: Air Cooler or Liquid Cooler

CPU Cooler Height: 190mm

PSU Length: 190mm

Cable Management Depth: 30mm

Interfaces & Slots

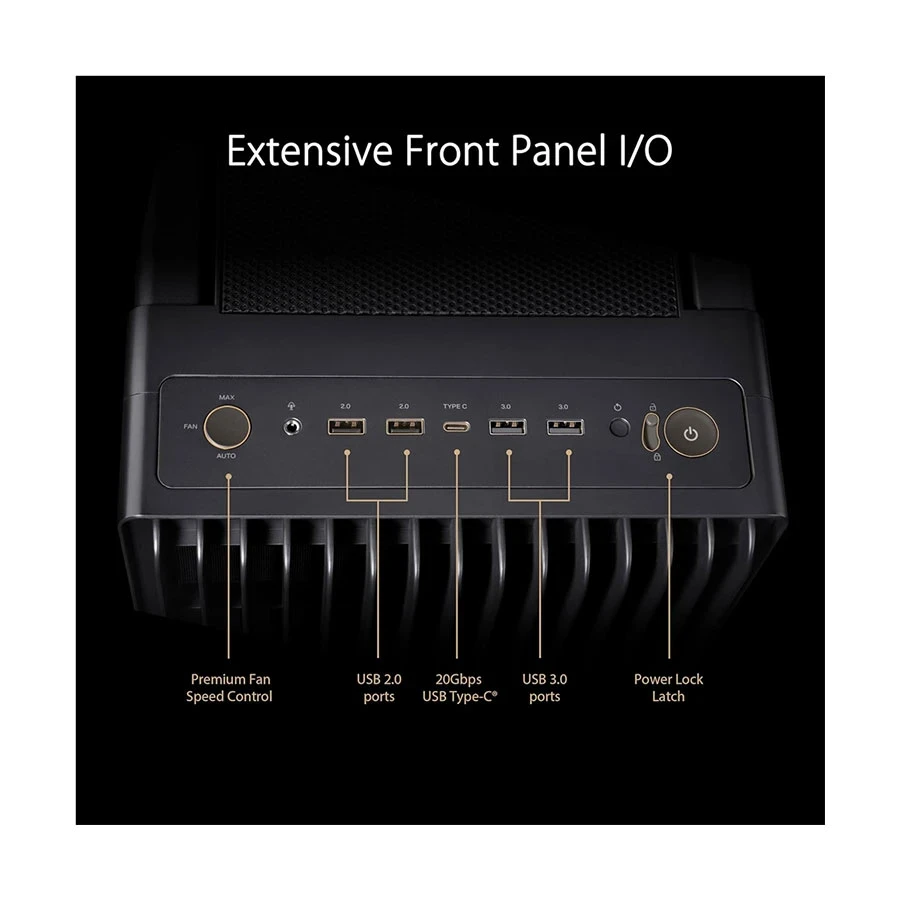

Front/Top USB port: 2 x USB 3.2 Gen1, 1 x USB 3.2 Gen 2x2 Type C, 2 x USB 2.0

Front/Top Audio Port: 1 x Combo

3.5 Inch Drive Bay: 4

2.5 Inch Drive Bay: 4

Expansion Slots: 8

Optical Drive Bay: No

Memory Card Slot: No

Cooling System Data

Cooling Fan (Built-In): 3

Additional Fan Slot: 3

Pre-Installed Fan Size: 2 x 200 mm, 1 x 140 mm PWM

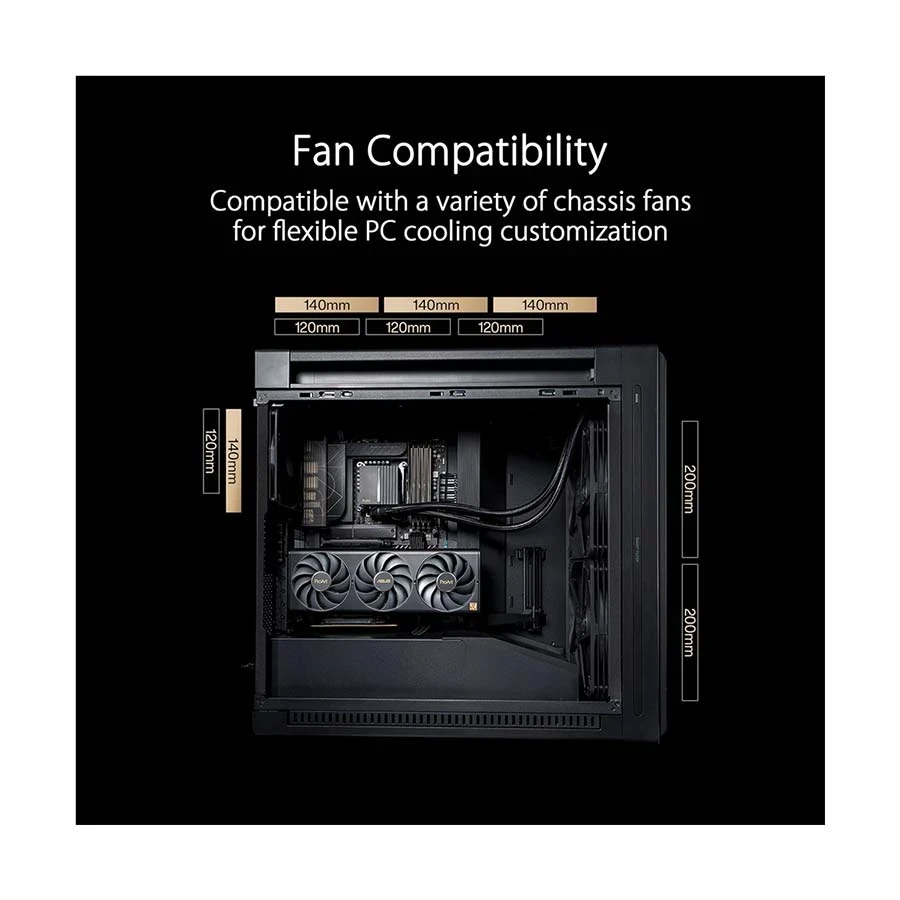

Supported Fan Size: 2 x 200 mm (Front), 3 x 120 mm/ 3 x 140 mm (Top), 1 x 120 mm/ 1 x 140 mm (Rear)

Lighting Fan: No

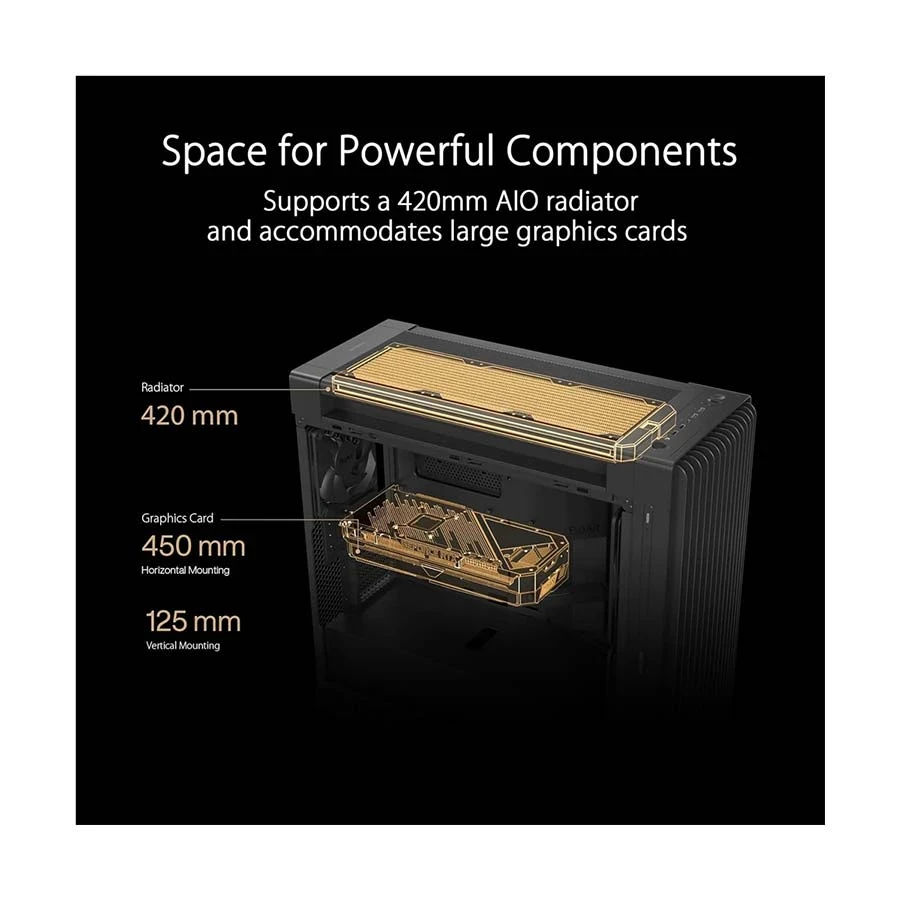

Radiator Support Front/Top/Rear: 120 mm/ 140 mm/ 240 mm/ 280 mm/ 360 mm/ 420 mm (Top)

Radiator Support Max: Up to 420mm

Power Data

Power Supply (Built-In): No

Power Supply Mounted: Bottom

Approx. Power Consumption: 15W

Physical Atributes

Transparent Side Window: Yes

Case Windowed: Tempered Glass

Buttons: 1 x Power Switch, 1 x Reset, 1 x Fan Controller

Number of Buttons: 3

Dust Cover: unmentioned

Color: Black

Dimensions: 593 x 560 x 245mm

Weight (Kg): 15.8 kg

Handle: No

Extra Data

Others - xpansion Slots: 8, 2 (additional vertical),15.5 mm open grill for maximum air intake, 45% grill porosity for optimal airflow, 200x38mm built-in fans for enhanced cooling, Front panel dust detection

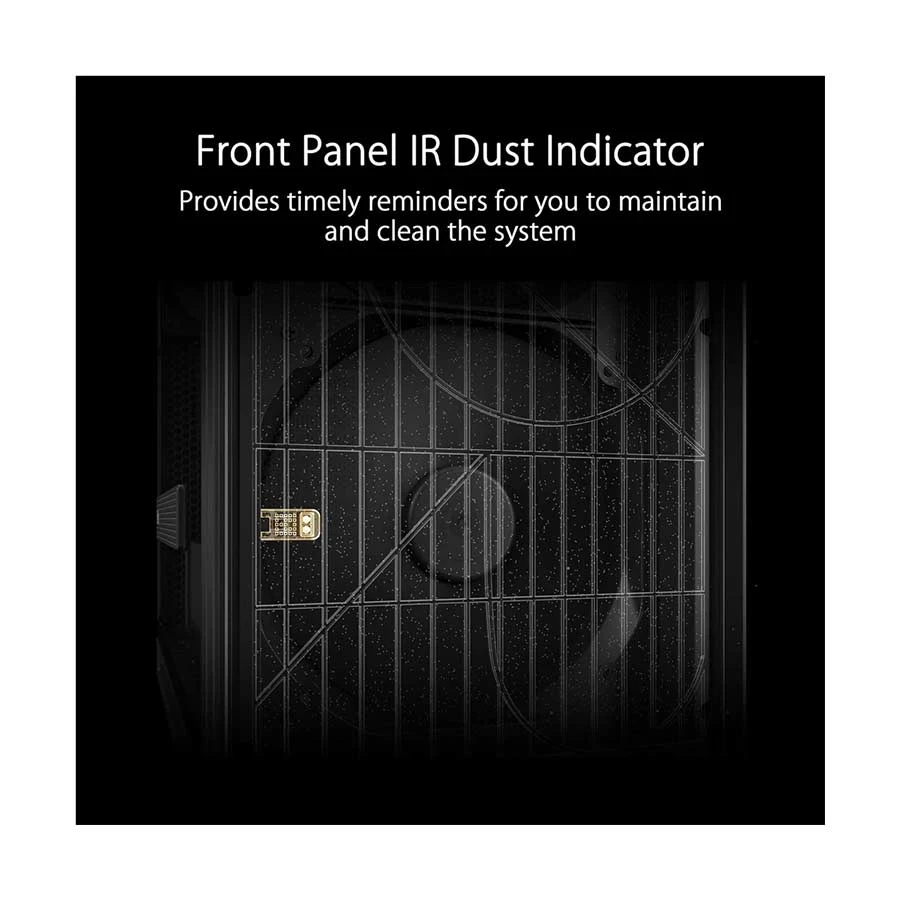

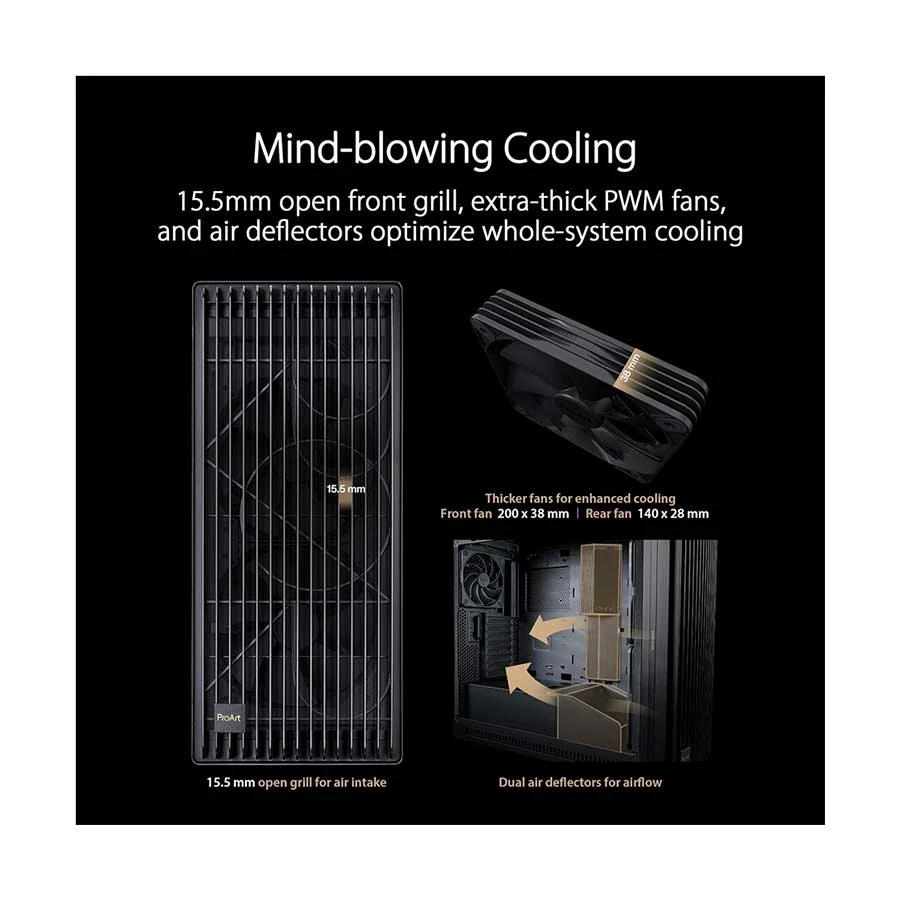

Specialty - Superior Airflow: 15.5 mm front panel grill with 45% porosity, two extra-thick 200 x 38 mm front fans for maximum air intake, and a 140 mm rear exhaust fan, Superior Thermals: Two deflectors send incoming air towards the motherboard and other internal components to optimize temperatures, Ample Space: Supports one 420 mm radiator for AIO cooling or custom liquid-cooling loops and the most robust graphics card get ample room for horizontal or vertical mounting, Extensive I/O: Power Lock Latch and 2-section PWM control; USB Type-C 20Gbps port, Front Panel IR Dust Indicator: Timely reminders to clean the filter to maintain top-tier airflow, Creator-Friendly Design: Tool-less graphics card mounting, integrated graphics card holder and built-in fan hub come together to amp up the building experience, Elegant aesthetics: Minimalist case adorned with ProArt themed design

Warranty

No warranty

* Product may vary with different Kit or Version
