Model

Asus Prime AP201

Brand

Asus

Series

Prime

Type

Mini Tower

Technical Data

Supported Motherboard Type: Micro-ATX, Mini-ITX

Supported LED Strip: No

Fan / Light Controller: No

Back-Connect Supported: No

Graphics-Card Length: 338mm

Supported CPU Cooler: Air Cooler or Liquid Cooler

CPU Cooler Height: 170mm

PSU Length: 140-180mm

Cable Management Depth: 32mm

Interfaces & Slots

Front/Top USB port: 2 x USB 3.2 Gen1, 1 x USB 3.2 Gen2 Type C

Front/Top Audio Port: 1 x Headphone, 1 x Microphone

3.5 Inch Drive Bay: 3

2.5 Inch Drive Bay: 1

Expansion Slots: 4

Optical Drive Bay: No

Memory Card Slot: No

Cooling System Data

Cooling Fan (Built-In): 1

Additional Fan Slot: 3

Pre-Installed Fan Size: 120mm

Supported Fan Size: 3 x 120 mm/ 2 x 140 mm (Top), 1 x 120 mm (Rear)

Lighting Fan: No

Radiator Support Front/Top/Rear: 120 mm/ 140 mm/ 240 mm/ 280 mm/ 360 mm (Top), 120 mm (Rear)

Radiator Support Max: Up to 360mm

Power Data

Power Supply (Built-In): No

Power Supply Mounted: unmentioned

Approx. Power Consumption: 5W

Physical Atributes

Transparent Side Window: Yes

Case Windowed: Tempered Glass

Buttons: 1 x Power Button

Number of Buttons: 1

Dust Cover: Bottom

Color: White

Dimensions: 205 x 350 x 460mm

Weight (Kg): 6.3 Kg

Handle: No

Extra Data

Others - Go Big. Stay Compact. Tool-free Side Panels Sizeable Cable-management Industry-leading Spatial Efficiency.

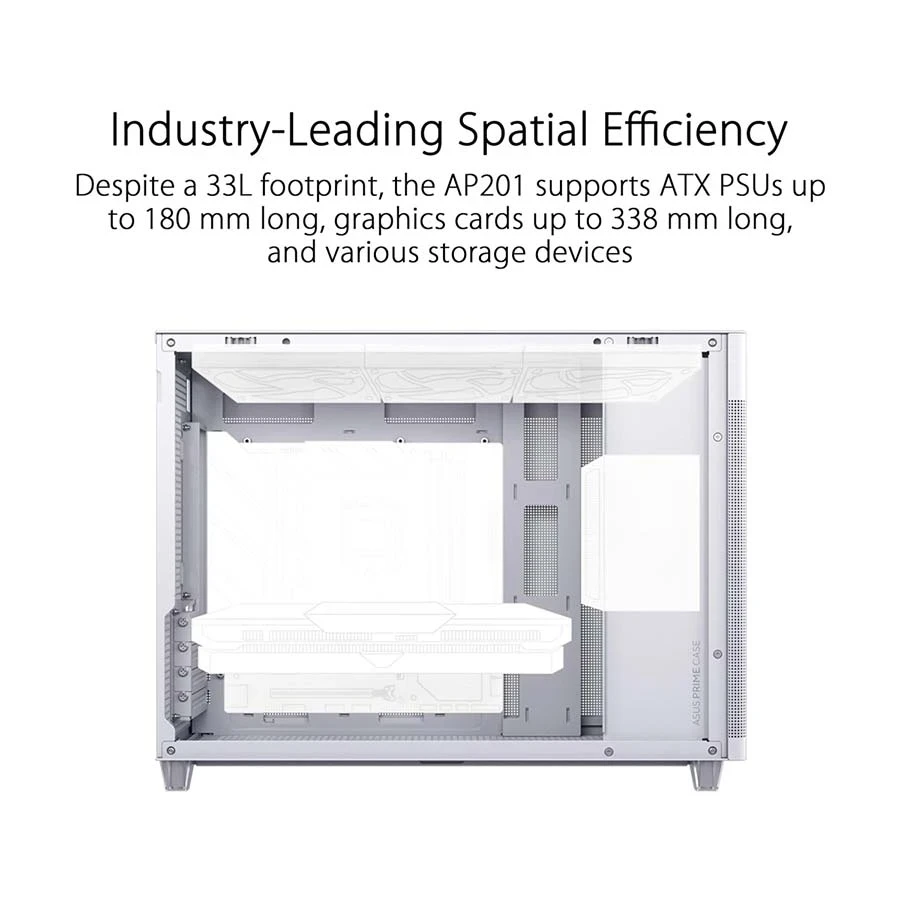

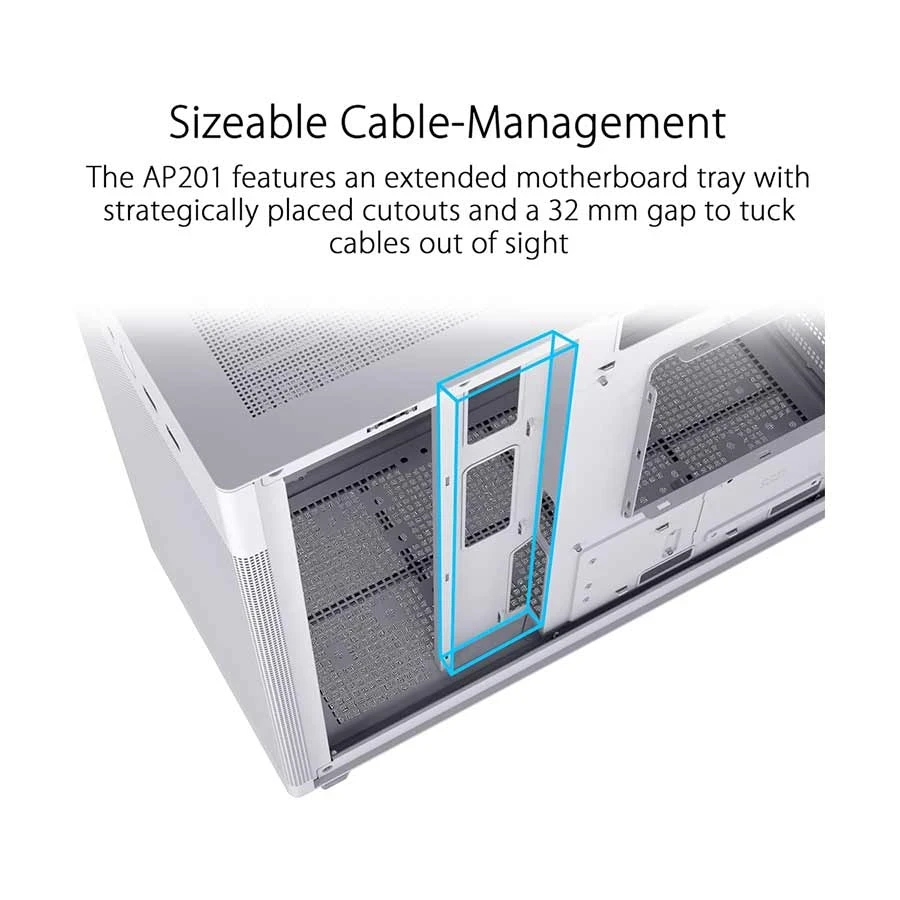

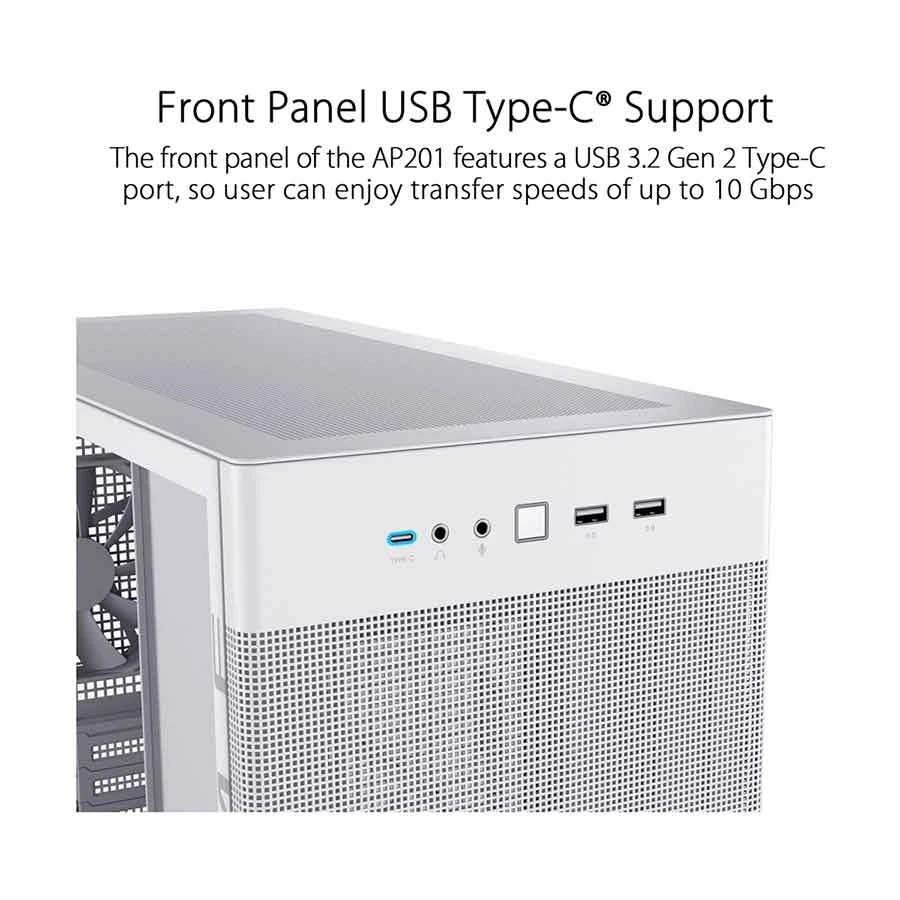

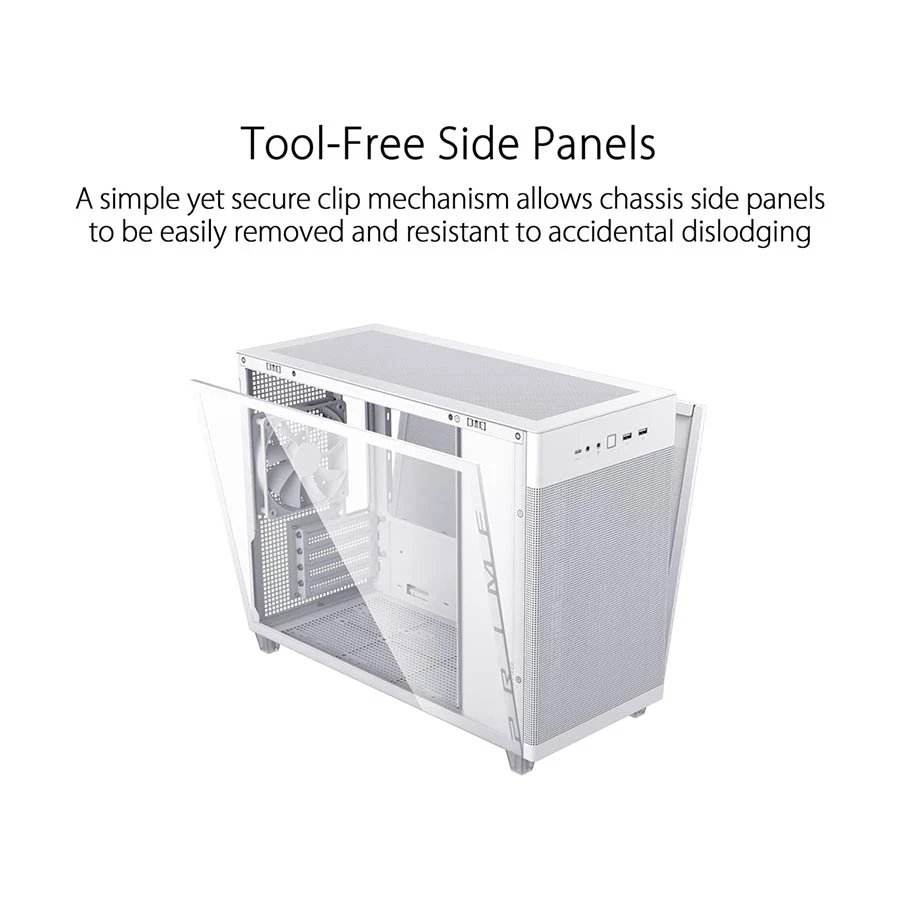

Specialty - Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware. Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices. Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging. Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight. Front Panel USB Type-C Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.

Warranty

No warranty

* Product may vary with different Kit or Version
