Model

Asus Prime AP201 Mesh

Brand

Asus

Series

Prime

Type

Mini Tower

Technical Data

Supported Motherboard Type: Micro-ATX, Mini-ITX

Supported LED Strip: No

Fan / Light Controller: No

Back-Connect Supported: No

Graphics-Card Length: 338mm

Supported CPU Cooler: Air Cooler or Liquid Cooler

CPU Cooler Height: 170mm

PSU Length: 140 - 180mm

Cable Management Depth: 32mm

Interfaces & Slots

Front/Top USB port: 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C

Front/Top Audio Port: 1 x Headphone, 1 x Microphone

3.5 Inch Drive Bay: 2

2.5 Inch Drive Bay: 1

Expansion Slots: 4

Optical Drive Bay: No

Memory Card Slot: No

Cooling System Data

Cooling Fan (Built-In): 1

Additional Fan Slot: 3

Pre-Installed Fan Size: Rear: 1 x 120mm

Supported Fan Size: Top: 3 x 120mm/ 2 x 140mm, Rear: 1 x 120mm

Lighting Fan: No

Radiator Support Front/Top/Rear: Top: 120mm/ 140mm/ 240mm/ 280mm/ 360mm, Rear: 120mm

Radiator Support Max: Up to 360mm

Power Data

Power Supply (Built-In): No

Power Supply Mounted: 180mm

Approx. Power Consumption: 5W

Physical Atributes

Transparent Side Window: No

Case Windowed: unmentioned

Buttons: Power

Number of Buttons: 1

Dust Cover: Bottom

Color: White

Dimensions: 205 x 350 x 460mm

Weight (Kg): 5.8 Kg

Handle: No

Extra Data

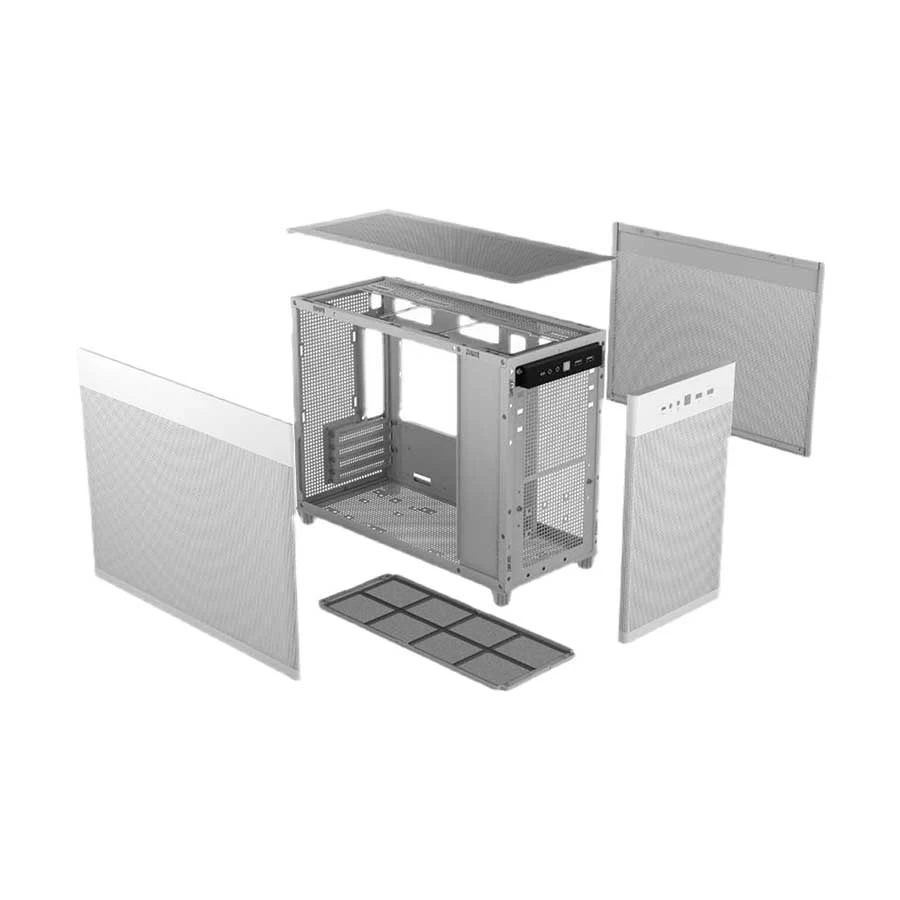

Others - Tool-Free Side Panels,

Specialty - Quasi-Filter Mesh Panels: A mesh design comprised of over 57,000 precision-machined 1.5mm holes increases airflow and provides a compelling view of the components within your build. Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware. Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices. Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging. Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight. Front Panel USB Type-C Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.

Warranty

No warranty

* Product may vary with different Kit or Version
