Model

Antec NX416L

Brand

Antec

Series

NX

Type

Mid Tower

Technical Data

Supported Motherboard Type: ATX, M-ATX, ITX

Supported LED Strip: No

Fan / Light Controller: Yes

Back-Connect Supported: No

Graphics-Card Length: 280mm

Supported CPU Cooler: Air Cooler or Liquid Cooler

CPU Cooler Height: 165mm

PSU Length: 240mm

Cable Management Depth: 240mm

Interfaces & Slots

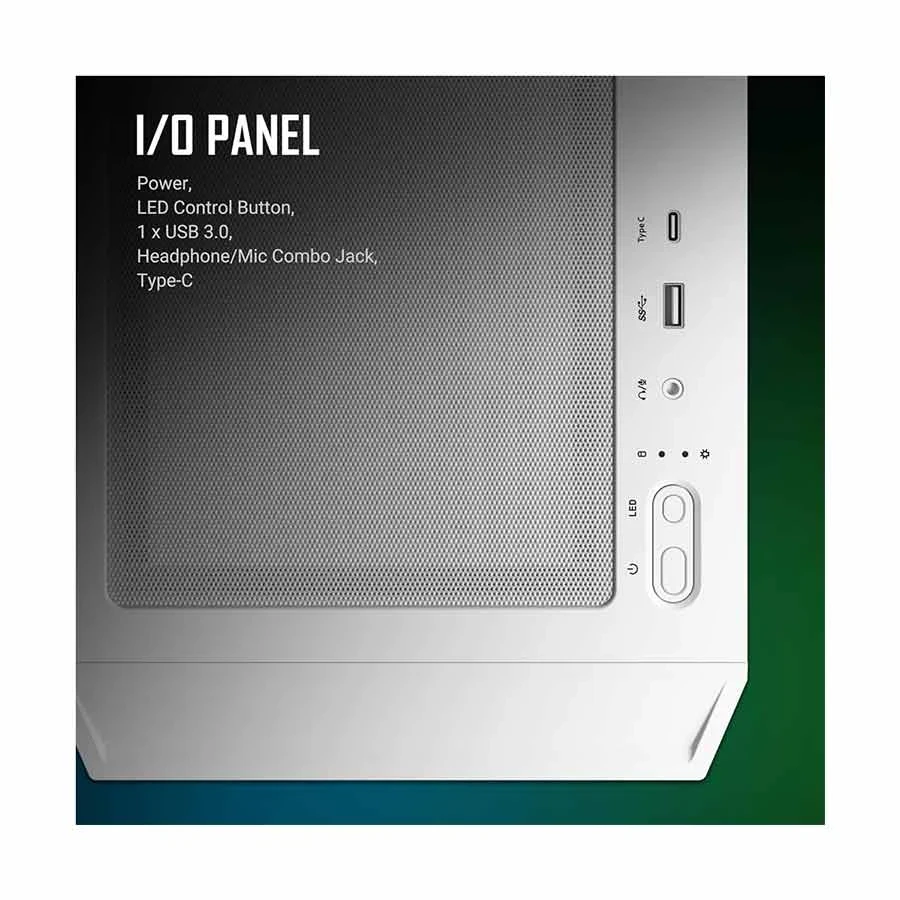

Front/Top USB port: 1 x USB 3.0, 1 x Type C

Front/Top Audio Port: 1 x Headphone/Mic Combo

3.5 Inch Drive Bay: 2

2.5 Inch Drive Bay: 3

Expansion Slots: 7

Optical Drive Bay: No

Memory Card Slot: No

Cooling System Data

Cooling Fan (Built-In): 3

Additional Fan Slot: 8

Pre-Installed Fan Size: 160mm (Front), 120mm (Rear)

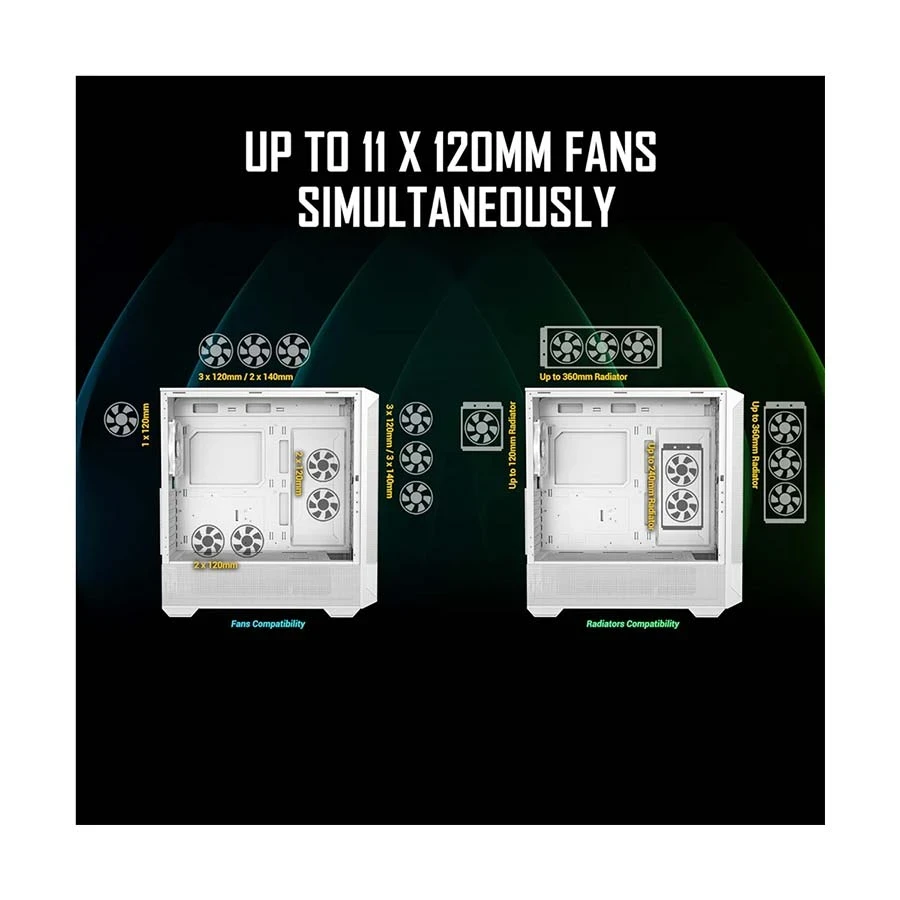

Supported Fan Size: 3 x 120mm / 3 x 140mm / 2 x 160mm (Front), 3 x 120mm / 2 x 140mm (Top), 120mm (Shroud, Side, Rear)

Lighting Fan: ARGB

Radiator Support Front/Top/Rear: Front: 120 / 140 / 240 / 280 / 360mm, Top: 120 / 140 / 240 / 280 / 360mm, Side: 120 / 240mm, Rear: 120mm

Radiator Support Max: Up to 360mm

Power Data

Power Supply (Built-In): No

Power Supply Mounted: Bottom

Approx. Power Consumption: 240mm

Physical Atributes

Transparent Side Window: Yes

Case Windowed: Tempered Glass Window

Buttons: 1 x Power button, 1 x LED Control botton

Number of Buttons: 2

Dust Cover: Top / Bottom / Right Side

Color: White

Dimensions: 486 x 210 x 471mm

Weight (Kg): 6.4 Kg

Handle: No

Extra Data

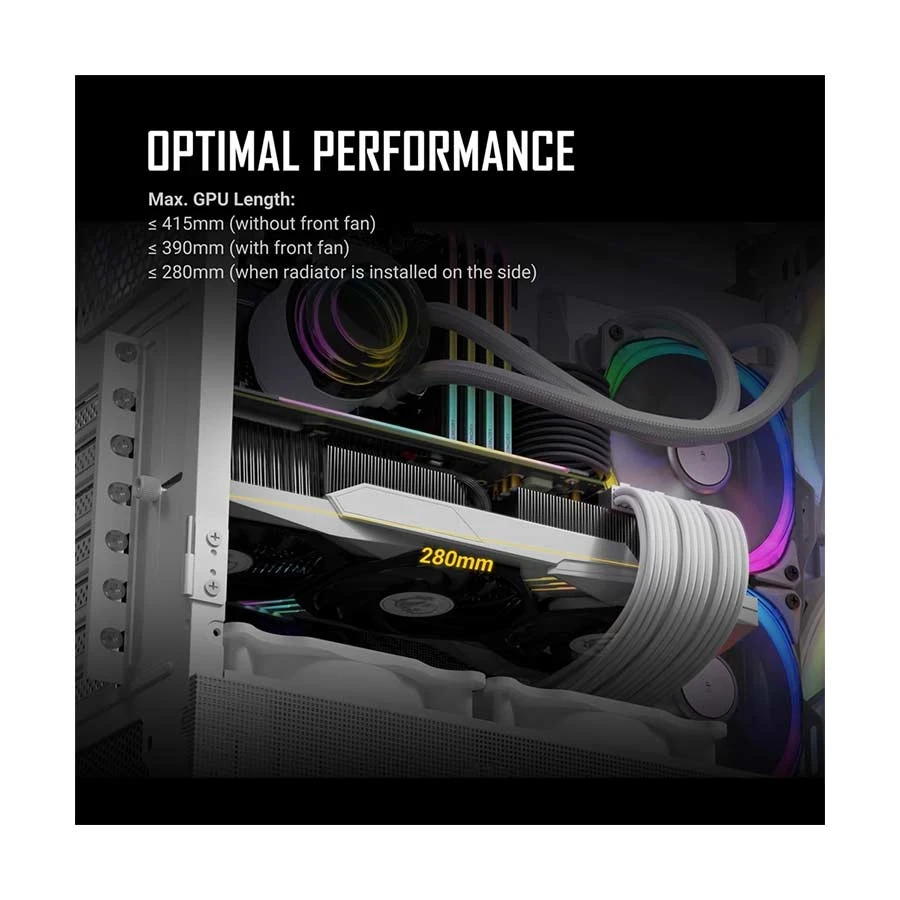

Others - Max GPU Length: <-280mm (when radiator is installed on the side), <-390mm (with front fan), <- 415mm (without front fan)

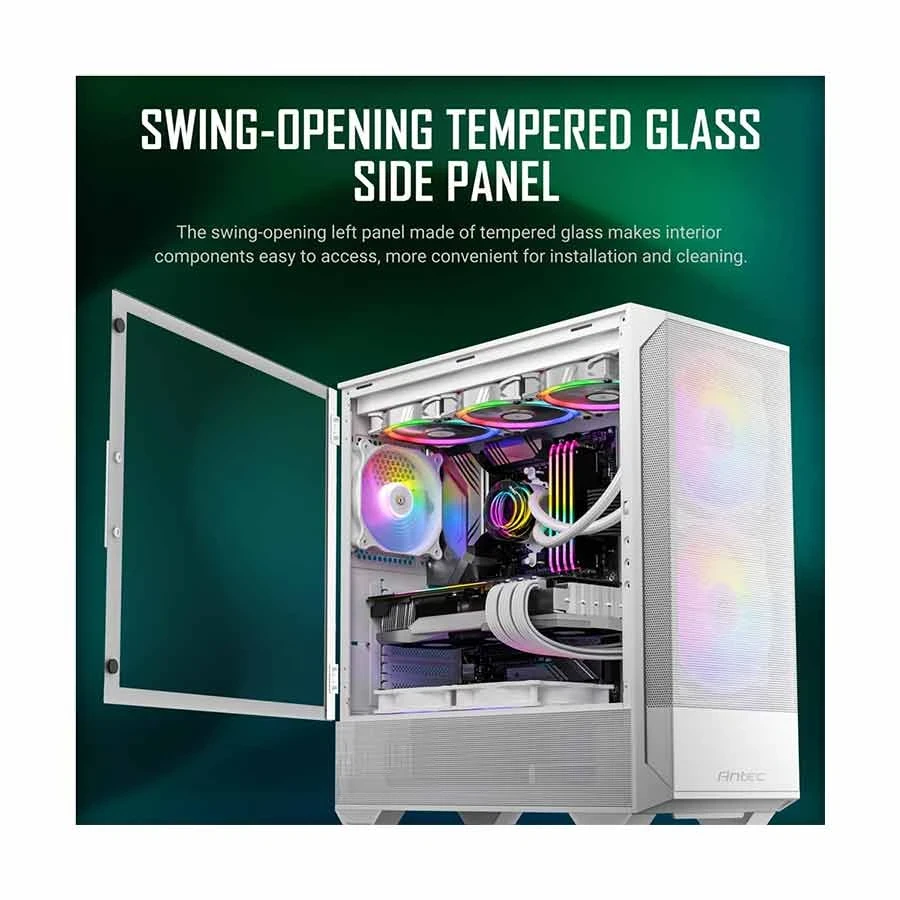

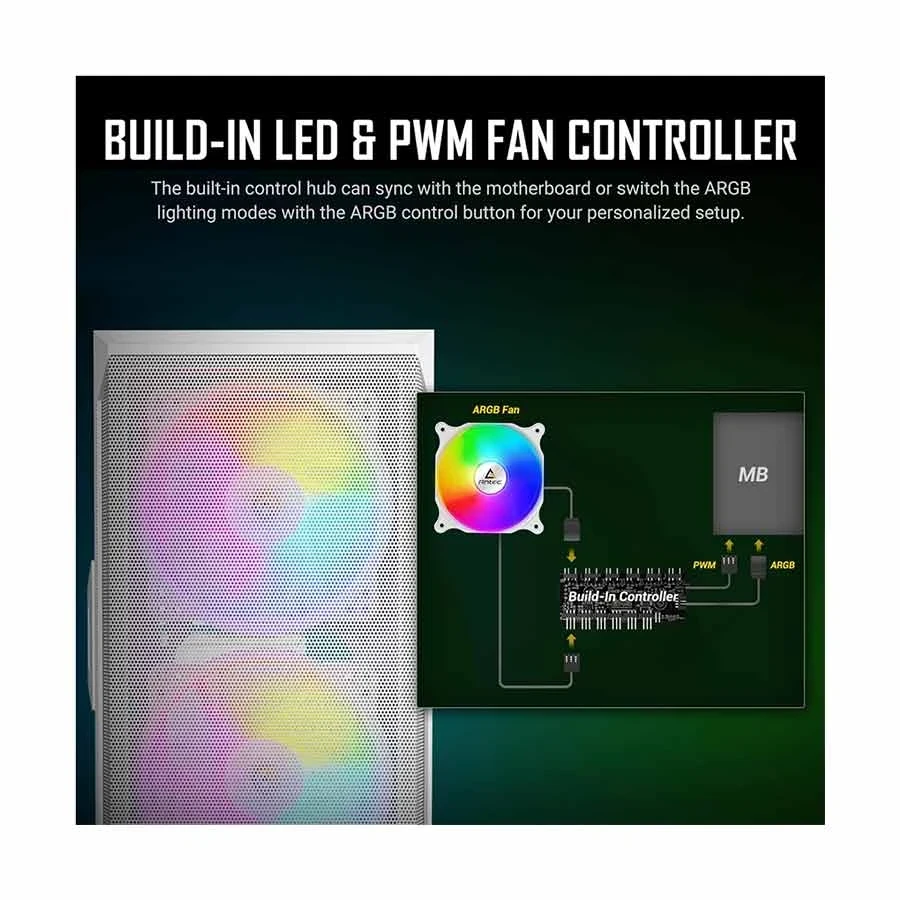

Specialty - Unique Design & Powerful Heat Dissipation, High-Airflow mesh front panel with 2 pre-installed 160mm ARGB Fans, Swing-Opening Tempered Glass Side Panel, Powerful Cooling, Optimized Storage Panel, Pre-Installed 3 ARGB fans, Build-in LED & PWM Fan Controller, Neat Build within Reach, Up to 11 x 120mm Fans Simultaneously.

Warranty

No warranty

* Product may vary with different Kit or Version
