Model

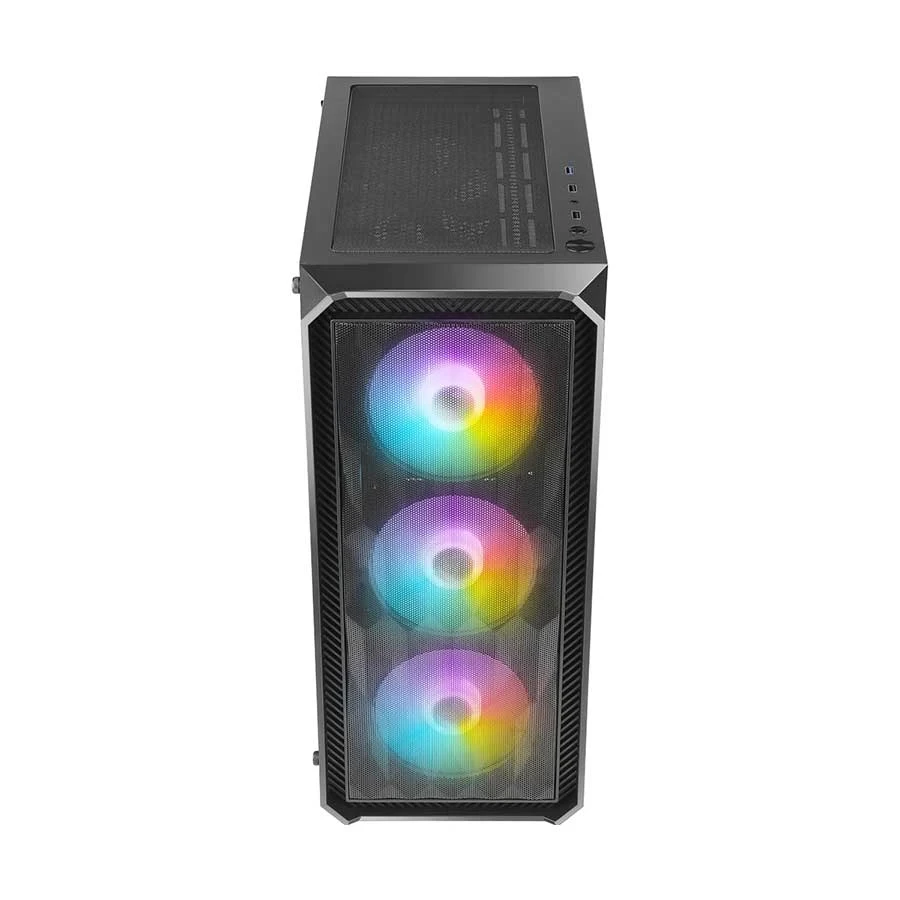

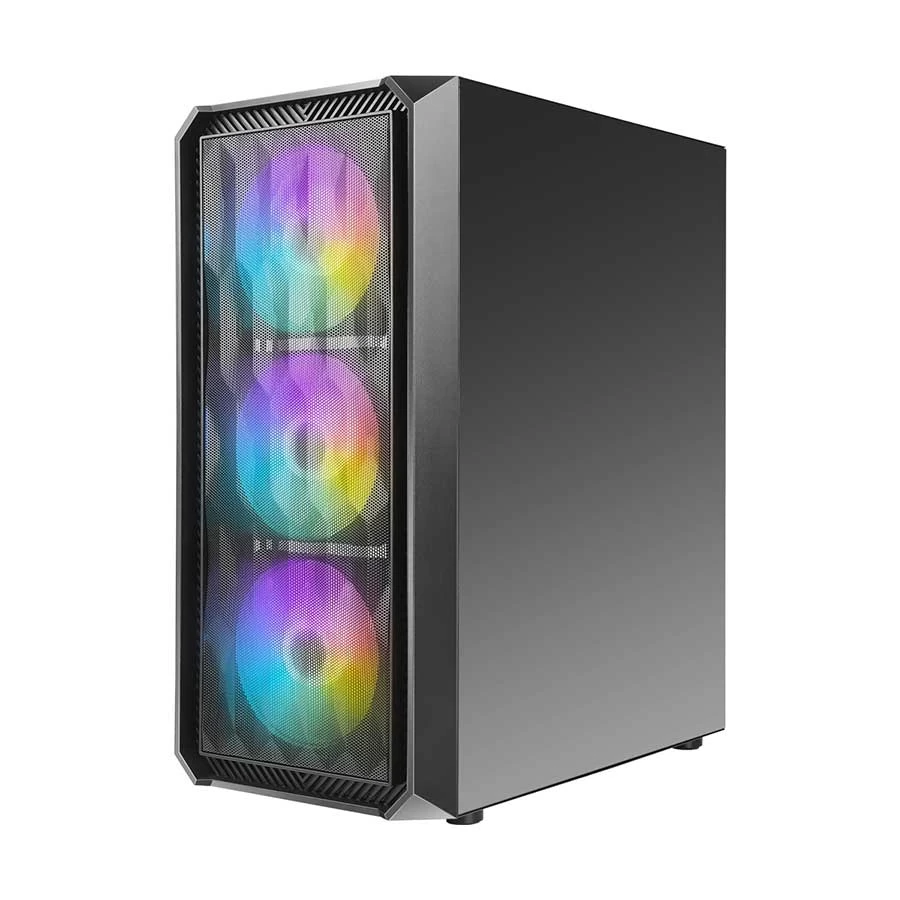

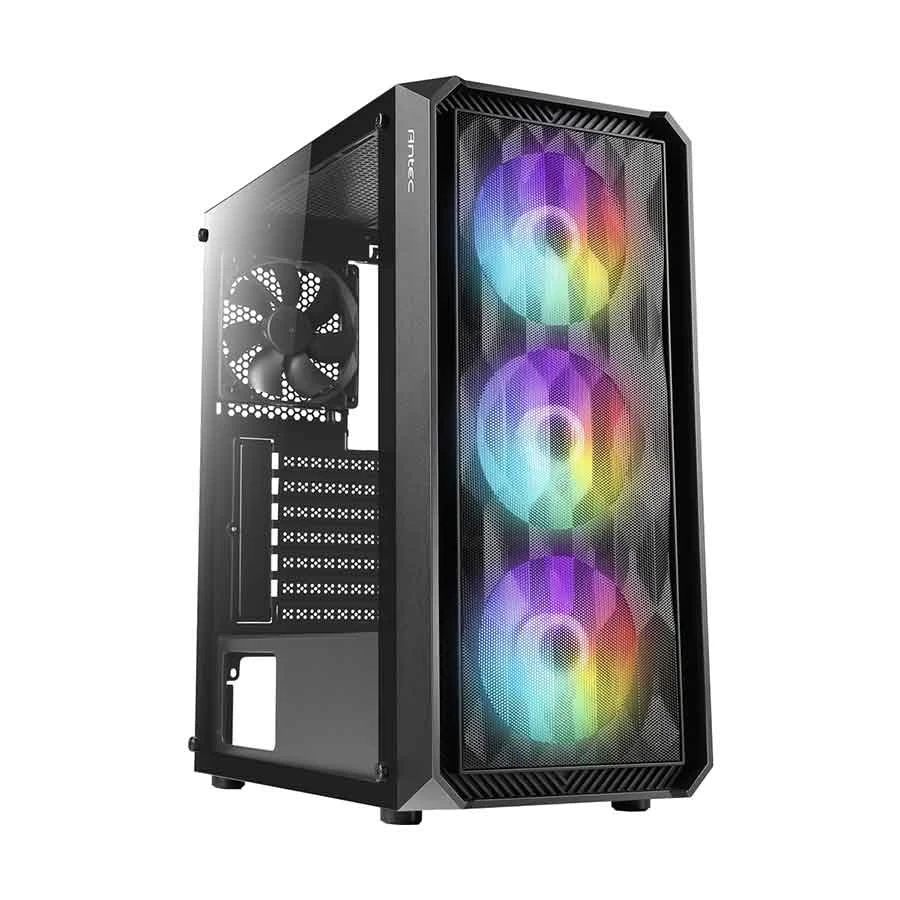

Antec NX292 Elite

Brand

Antec

Series

Gaming

Type

Mid Tower

Technical Data

Supported Motherboard Type: E-ATX / ATX / Micro-ATX / ITX

Supported LED Strip: No

Fan / Light Controller: No

Back-Connect Supported: No

Graphics-Card Length: 320mm

Supported CPU Cooler: Air Cooler or Liquid Cooler

CPU Cooler Height: 155mm

PSU Length: 165mm (with HDD), 300mm (without HDD)

Cable Management Depth: Yes

Interfaces & Slots

Front/Top USB port: 2 x USB2.0, 1 x USB3.0

Front/Top Audio Port: 1 x Audio + Mic

3.5 Inch Drive Bay: 2

2.5 Inch Drive Bay: 2

Expansion Slots: 7

Optical Drive Bay: No

Memory Card Slot: No

Cooling System Data

Cooling Fan (Built-In): 4

Additional Fan Slot: 4

Pre-Installed Fan Size: 3 x 120mm (Front), 1 x 120mm (Rear)

Supported Fan Size: Front: 3 x 120/2 x 140mm, Top: 2 x 120mm/2 x 140mm, Rear: 1 x 120, Power Supply Shroud: 2 x 120mm

Lighting Fan: RGB

Radiator Support Front/Top/Rear: 120mm, 140mm, 240mm, 280mm, 360mm (Front), 120mm (Length <- 156mm)

Radiator Support Max: Up to 360mm

Power Data

Power Supply (Built-In): No

Power Supply Mounted: Bottom

Approx. Power Consumption:

Physical Atributes

Transparent Side Window: 30W

Case Windowed: Tempered Glass

Buttons: Power, Reset

Number of Buttons: 2

Dust Cover: Top / Bottom

Color: Black

Dimensions: 450 x 206 x 406mm

Weight (Kg): 4.94 Kg

Handle: No

Extra Data

Others - The NX292 White mid-tower gaming case effortlessly combines a bevy of in-demand features: USB 3.0 connectivity, ample storage drive bays, room for expansion, and includes 3 x 120 mm fixed mode RGB fans in front and 1 x 120 mm fan in rear. With support for up to a 360 mm liquid cooling radiator in front, NX292 White is easy to build with and easy to cool.

Specialty - Built for Gaming, Support a 360mm radiator at the front

Warranty

No warranty

* Product may vary with different Kit or Version
