Model

Antec AX22 Elite RGB

Brand

Antec

Series

Elite

Type

Mid Tower

Technical Data

Supported Motherboard Type: ATX, Micro-ATX, ITX

Supported LED Strip: No

Fan / Light Controller: No

Back-Connect Supported: No

Graphics-Card Length: 270mm

Supported CPU Cooler: Air Cooler or Liquid Cooler

CPU Cooler Height: 155mm

PSU Length: 165mm

Cable Management Depth: unmentioned

Interfaces & Slots

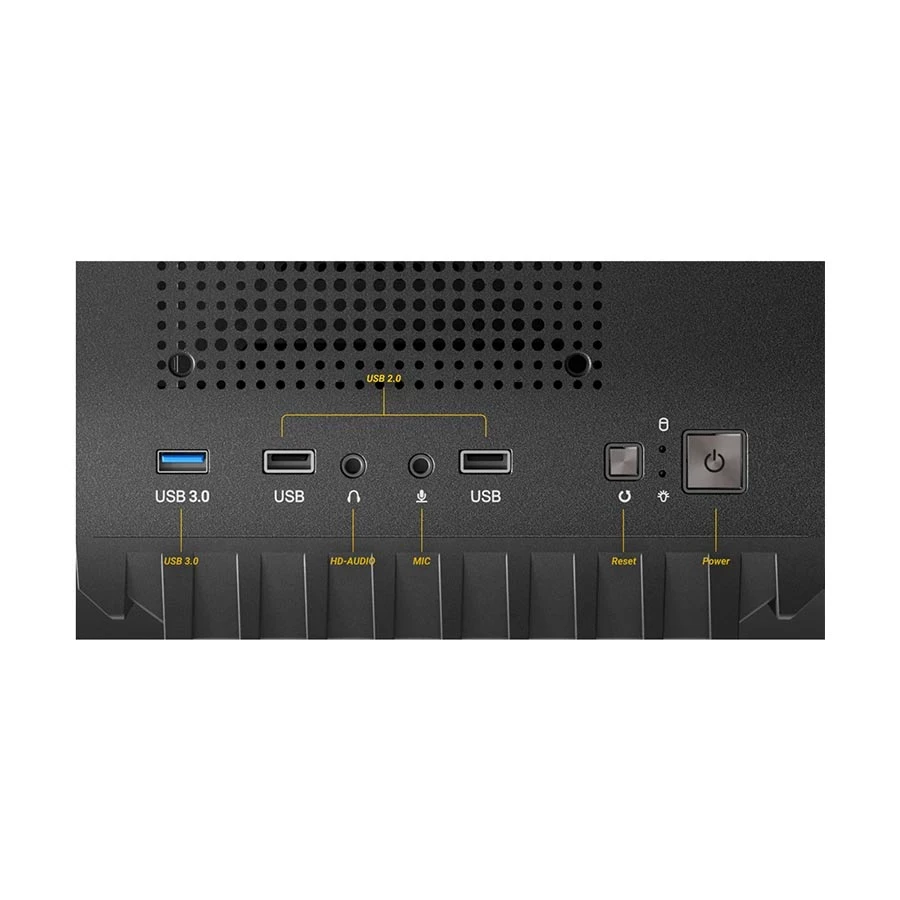

Front/Top USB port: 2 x USB 2.0, 1 x USB 3.0

Front/Top Audio Port: 1 x Mic/hd-audio

3.5 Inch Drive Bay: 2

2.5 Inch Drive Bay: 2

Expansion Slots: 7

Optical Drive Bay: No

Memory Card Slot: No

Cooling System Data

Cooling Fan (Built-In): 4

Additional Fan Slot: 4

Pre-Installed Fan Size: 120mm

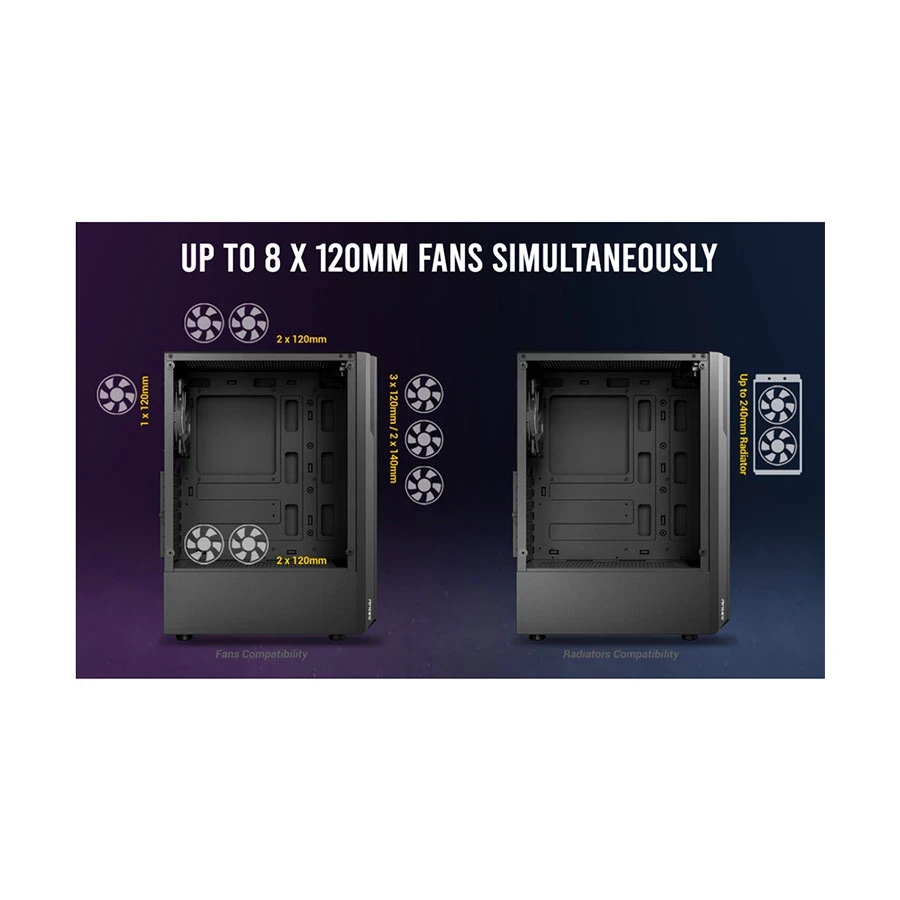

Supported Fan Size: 3 x 120mm / 2 x 140mm (Front), 120mm (Top, Power Supply, Rear)

Lighting Fan: RGB

Radiator Support Front/Top/Rear: 120 / 240mm (Front),

Radiator Support Max: Up to 240mm

Power Data

Power Supply (Built-In): No

Power Supply Mounted: Bottom

Approx. Power Consumption: 30W

Physical Atributes

Transparent Side Window: Yes

Case Windowed: Tempered Glass Window

Buttons: 1 x Power Button, 1 x Reset Button

Number of Buttons: 2

Dust Cover: Bottom

Color: Black

Dimensions: 451 x 206 x 351mm

Weight (Kg): 4.1 Kg

Handle: No

Extra Data

Others - GPU max length: <- 270mm (with front fan), <- 295mm (without front fan), Max PSU Length: (Include cable) <- 165mm (with HDD),(Include cable) <- 295mm (without HDD)

Specialty - Unique Design & Powerful Heat Dissipation, Grill & Mesh Design, High-Airflow Front Panel, Pre-Installed 4 x 120mm Fixed Mode RGB Fans, Up to 8 x 120mm Fans Simultaneously

Warranty

No warranty

* Product may vary with different Kit or Version
