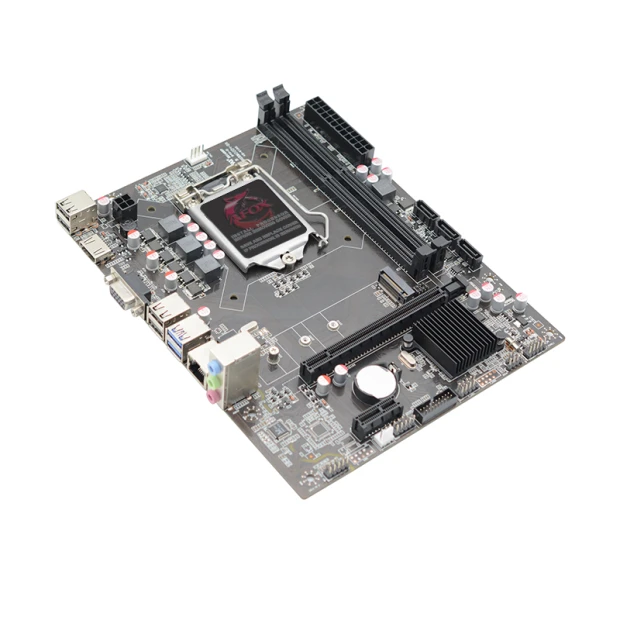

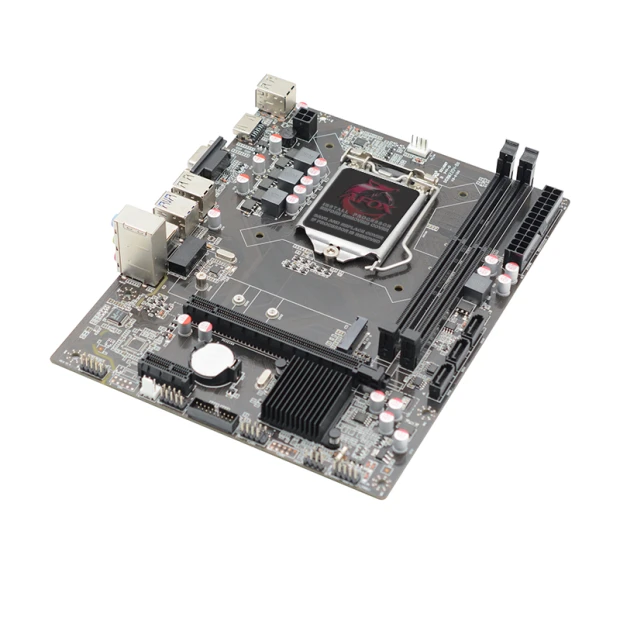

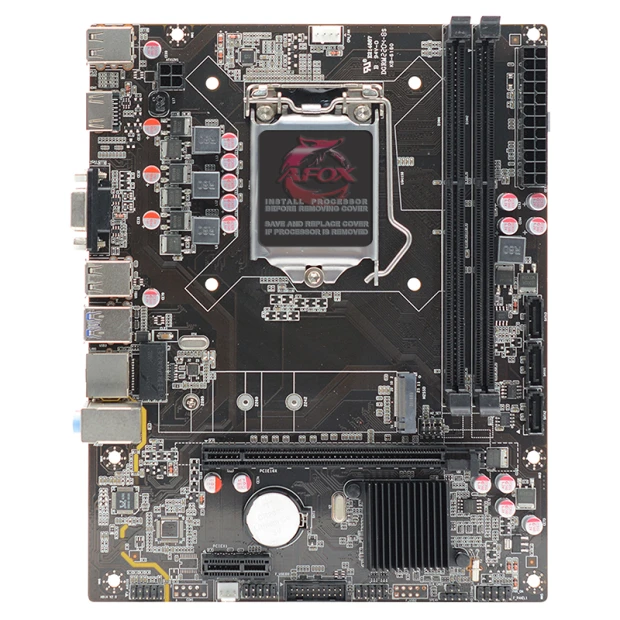

AFOX IH81-MA5-V4 motherboard is a versatile and reliable solution designed for users looking to build a powerful yet cost-effective system. Compatible with Intel 4th Generation Core™ i7, i5, i3, Pentium®, Celeron®, and Xeon® processors, the motherboard supports CPUs up to 95 watts, providing ample performance for various computing needs such as gaming, multimedia, and office applications. Powered by the Intel® H81 chipset, it ensures stability and excellent processing capabilities for both light and moderate workloads.

Memory and Performance

The AFOX IH81-MA5-V4 motherboard comes with 2 memory slots, supporting dual-channel DDR3 memory up to 16GB. With memory speeds ranging from 1066 MHz to 1860 MHz, it ensures a balanced performance for multitasking and running memory-intensive applications. Whether you are working on spreadsheets, streaming videos, or browsing multiple tabs, this motherboard offers smooth operation for everyday tasks.

Storage and Expansion

The motherboard offers a solid storage solution with 3 SATA3 ports for hard drives and SSDs. Additionally, it features 1 M.2 slot supporting PCIe NVMe Gen3 storage, which provides fast data transfer rates, perfect for users who require high-speed storage for tasks like gaming, video editing, or heavy data processing. With these storage options, users can enjoy fast boot times and quicker file access.

Graphics and Connectivity

Equipped with 1 HDMI port and 1 D-Sub (VGA) port, the AFOX IH81-MA5-V4 motherboard offers flexible video output options for connecting to a wide range of monitors. The HDMI port supports high-definition video for modern displays, while the VGA port ensures compatibility with older monitors. Whether you’re using a single or dual display setup, this motherboard offers the necessary outputs for a seamless visual experience.

Networking and PCI Expansion

The motherboard features Realtek RTL8111 Gigabit Ethernet for a stable and fast network connection, ideal for browsing, gaming, or streaming. It also includes 1 PCI Express x16 2.0 slot and 1 PCI Express x1 slot for expanding your system with additional graphics cards, sound cards, or other expansion cards.

USB and Audio

The AFOX IH81-MA5-V4 includes 2 USB 3.0 ports and 4 USB 2.0 ports on the back panel, with additional internal connectors for more USB ports. It also supports 6-channel audio-out through Realtek 662 audio for high-quality sound. Whether for gaming or entertainment, the motherboard provides crisp audio for immersive experiences.

BIOS and Software

With a UEFI BIOS for easy configuration, the motherboard is user-friendly and offers solid system support. It also comes with a driver CD to ensure smooth installation of all drivers and software.

With a 3-year warranty, the AFOX IH81-MA5-V4 motherboard is a reliable and efficient choice for users looking to build a functional and high-performance system.
