Model

Acer V950B

Brand

Acer

Series

Gaming

Type

Mid Tower

Technical Data

Supported Motherboard Type: ATX, Micro-ATX, ITX

Supported LED Strip: No

Fan / Light Controller: No

Back-Connect Supported: Yes

Graphics-Card Length: 410mm

Supported CPU Cooler: Air Cooler or Liquid Cooler

CPU Cooler Height: 163mm

PSU Length: unmentioned

Cable Management Depth: unmentioned

Interfaces & Slots

Front/Top USB port: 1 x Type C, 1 x USB 3.0, 1 x USB 2.0

Front/Top Audio Port: HD Audio

3.5 Inch Drive Bay: 2

2.5 Inch Drive Bay: 2

Expansion Slots: 7

Optical Drive Bay: No

Memory Card Slot: No

Cooling System Data

Cooling Fan (Built-In): No

Additional Fan Slot: 10

Pre-Installed Fan Size: No

Supported Fan Size: Top: 3 x 120mm, M/B 3 x 120mm fan or 2 x 140mm, Bottom 3 x 120mm, Rear 1 x 120mm

Lighting Fan: No

Radiator Support Front/Top/Rear: Top: 360mm, M/B: 240/280mm, Bottom: 240mm, Rear:120mm

Radiator Support Max: Up to 360mm

Power Data

Power Supply (Built-In): No

Power Supply Mounted: Top

Approx. Power Consumption: 5W

Physical Atributes

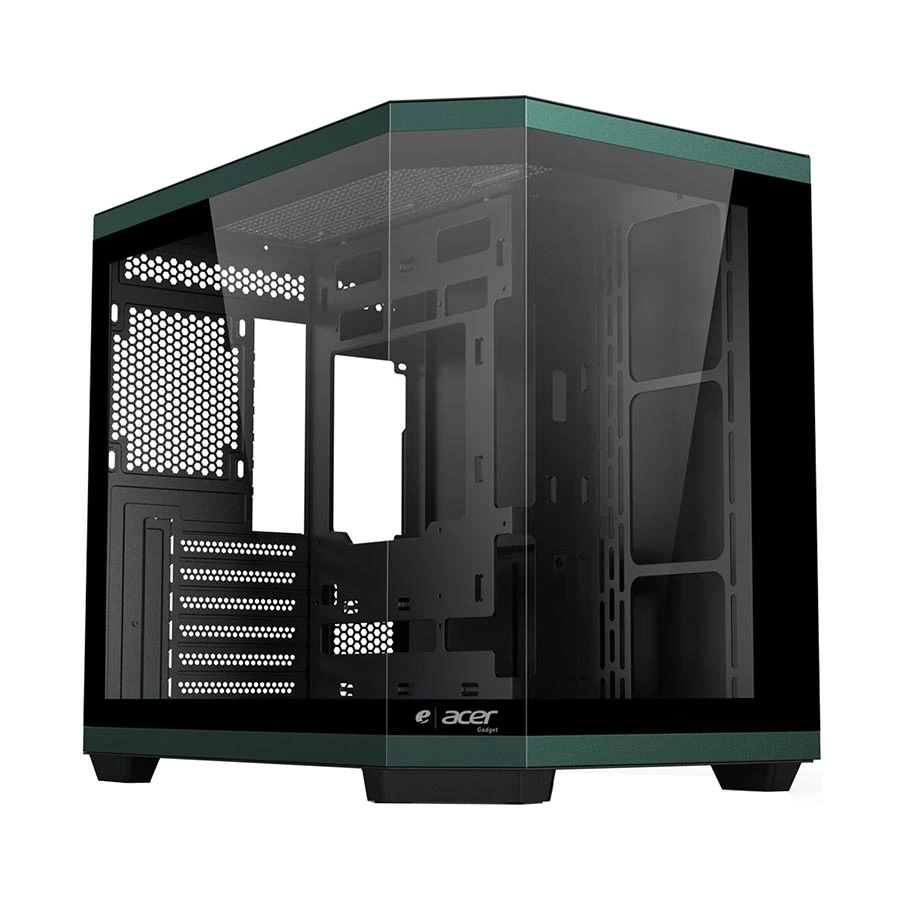

Transparent Side Window: Yes

Case Windowed: Tempered Glass Window

Buttons: 1 x Power Button 1 x Reset Button

Number of Buttons: 2

Dust Cover: No

Color: Black

Dimensions: 426 x 285 x 398mm

Weight (Kg): unmentioned

Handle: No

Extra Data

Others - 270 Degree PANORAMIC ROOM WITHOUT PILLARS FULL VIEW CASE, Super Compatible, Multi-Channel Cooling, Transparent and cool, SUPPORT 10PCS COOLING FAN, Maximum Support 360mm liquid cooler Compatible with 280/240/120mm liquid cooler, HIGH-EFFICIENCY HEAT DISSIPATION CHANNEL, Vertical cooling design, Enhance cooling speed.

Specialty - SUPER COMPATIBLE 0.8MM THICKENED DESIGN, SUPPORT M/B: ITX/MICRO ATX/ATX, SUPER COMPATIBLE WITH MULTIPLE HDD INSTALLATIONS, Hardware capability: HDD x 2+SSD x 2 OR HDD x 1+SSD x 3, SUPPORT BACK-PLUG M/B, Many large wiring holes are reserved on the main board of the chassis. Perfectly supports back-plug m/b without affecting the installation of traditional m/b. QUICK DISASSEMBLED STRUCTURE WITH TENON, Traditional craftsmanship, No screws, Firm and stable, Portable and beautiful.

Warranty

No warranty

* Product may vary with different Kit or Version
